Double Power Load Contro Knife Switch for Russian Market

Name: Double Power Load Contro Knife Switch for Russian Market
Brand: all-electronics-online.com
SKU: 819591225
Availability: InStock
Rating: 4.6 (129 reviews)

Price:	US $ 45/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HHK

Product Description

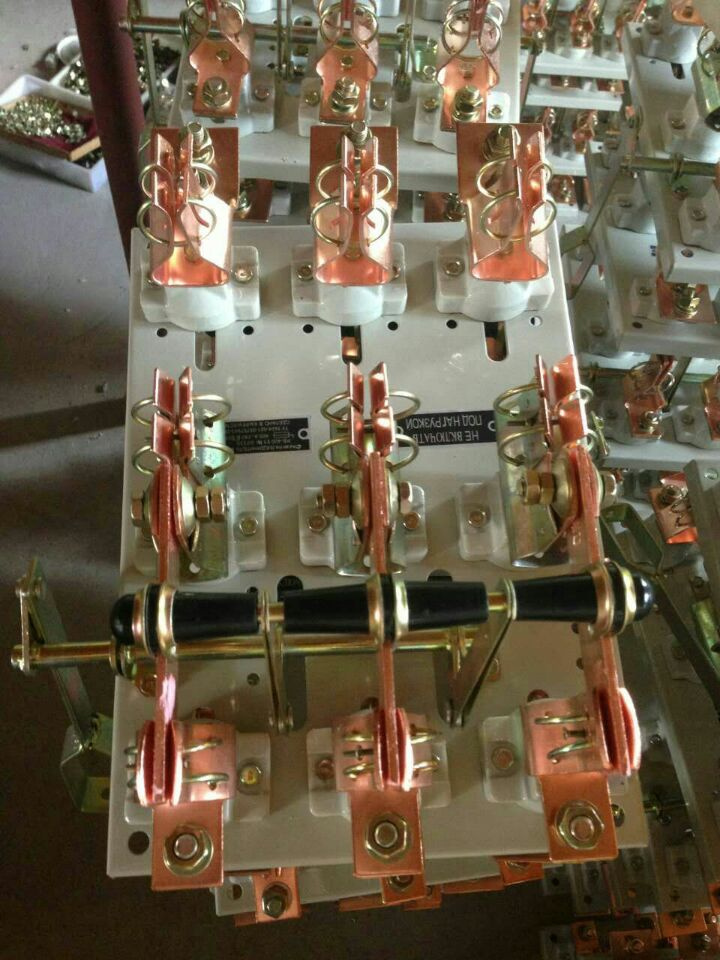

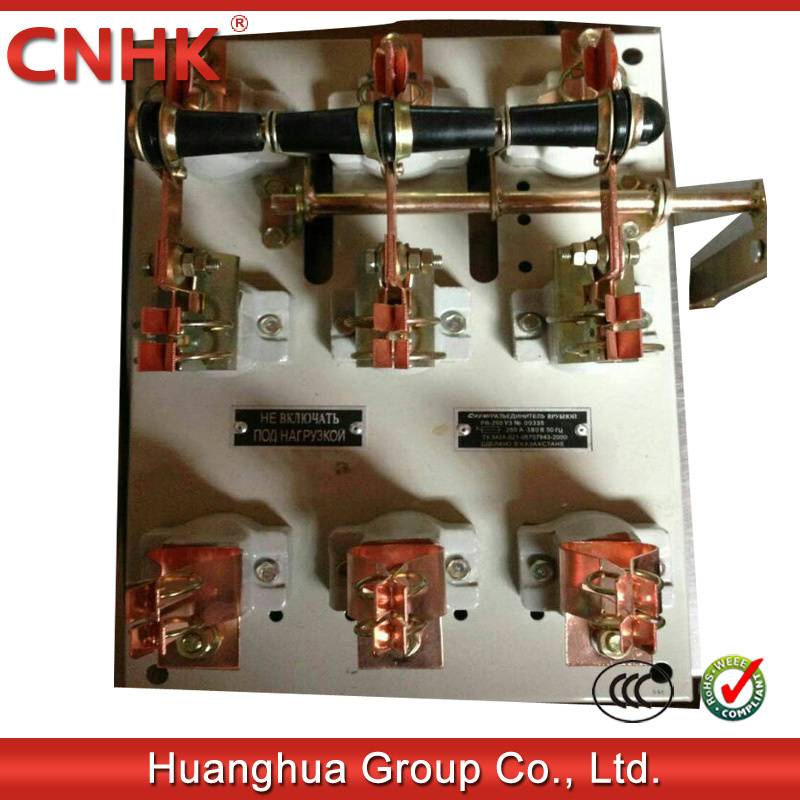

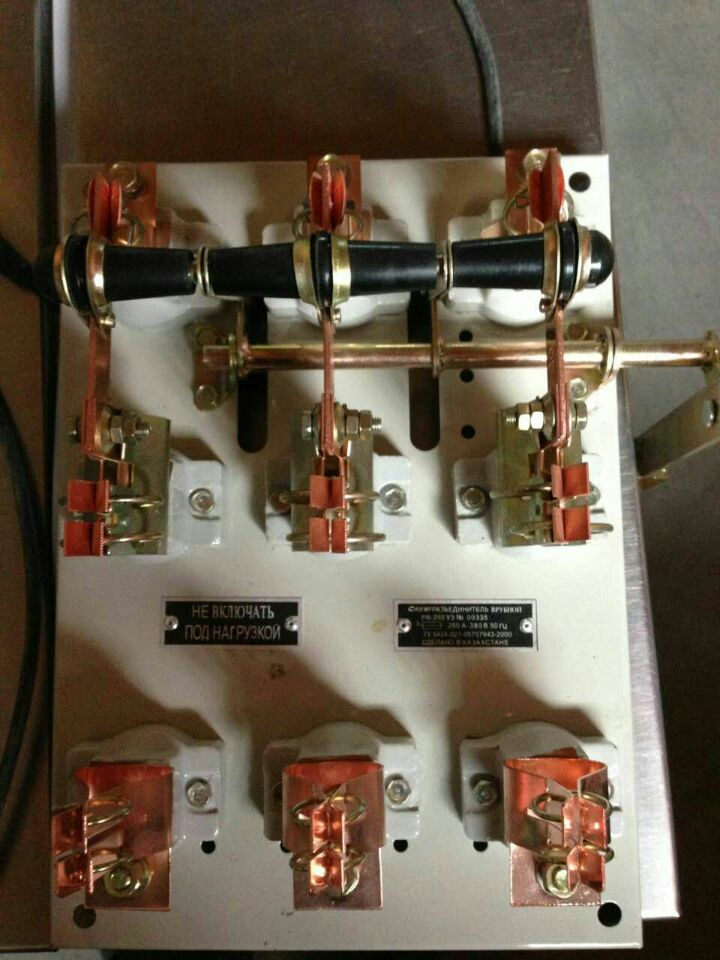

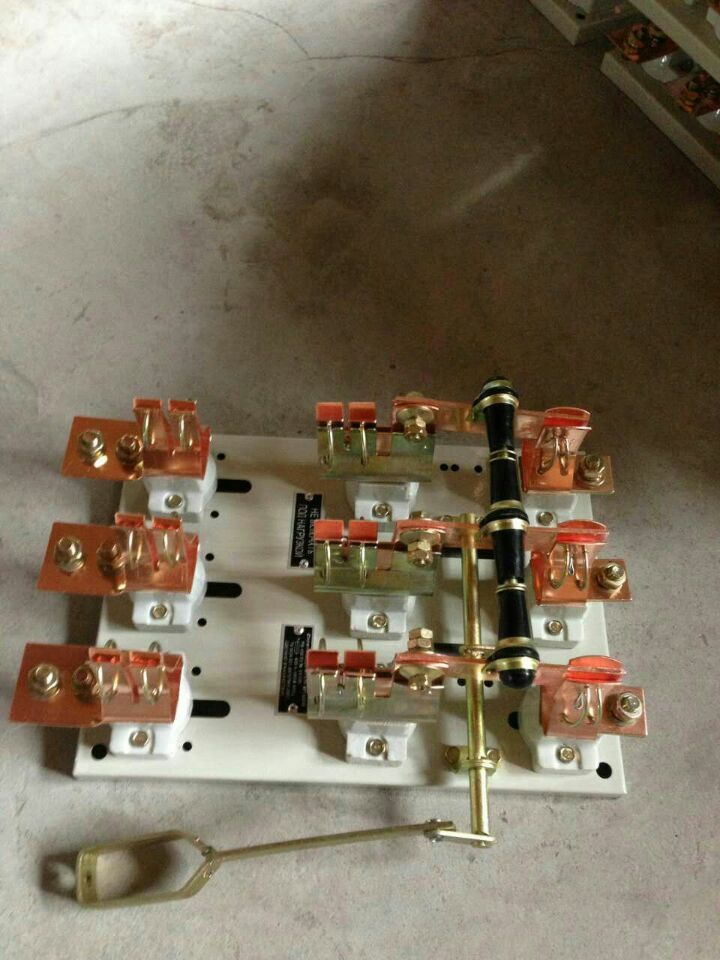

Double power load control knife switch Glass plate 400V 50Hz
HD(S) -11/12/13/14-B/-200/400/1500A/3(P)8(9)
HD-Knife switch ,HS-knife rotary witch
11- Middle central handle
12-side front leveraged institutions
13-center reverse side leveraged institutions
14-side operate lever
B- that is meaning of outline dimension of mounting plate is smaller , without B ,it is normally size
200/400/1500A - stand for current of heating in the air
3(P)- stand for 3 pole 4 pole and 2 pole
8- stand for wiring in front of the plate, 9- stand for wiring in back of plate
HD12-1000/31 Double power load control knife switch Glass plate 400V 50Hz Specification

Rated working Voltage V	Rated working Current A	Rated short-time withstand current(KA)		Time (S)
		HD HS
		Operating leverage	Manual operation
400	200	12	10	1
	400	20	15
	600	25	20
	1000	30	25
	1500	35	30

Rated short-time withstand current and the relationship between the peak coefficient n	Power factor COS φ	n
8≤1cw≤10	0.5	1.7
12≤1cw≤20	0.3	2
25≤1cw≤50	0.25	2.1

Type Pole Current		200	400	600	1000	1500
Type Pole Current		3	3	3	3	3
HD11	Former board	7*140	80*140	100*140	120*140	-
HD11	After board	70*160	80*190	100*120	120*260	-
HD12		80*240	90*240	100*240	-	-
HD13		80*160	90*160	100*160	120*160	130*160
HD14		80*160	90*160	-	-	-
HS11		70*220	80*260	-	-	-
HS13		80*240	90*240	100*240	120*240	-

Huanghua Group is an enterprise group, which integrates industrial manufacturing, import and Export, founded in 1980. Now the group has more than 500 employees. There are five subsidiaries, and the products have founded ready markets in all regions of China and some of oversea markets. CNHK Electrics Co., Ltd., is the head of the Group. It is the largest company in terms of production and sales volume of high voltage electrical components in the group. The second one is producing high voltage power transmission. The third one is producing transformer. The fourth one is producing cabinet and the fifth one is a domestic trade company.

Huanghua Group is one of the Top 500 Private Enterprises in comprehensive strength in China, mainly specializing in the production of high-low voltage power transmission and distribution equipment, including substation, power distribution automated switchgears, terminal devices, as well as high-low voltage components, etc. In view of being specialized in electric industry, Huanghua Group gradually grows into one of the leading enterprises in industrial electrical equipment field in China. The group has invested in Shanghai to establish Shanghai Huanghua (CNHK) Electric Industrial Zone. The industrial zone area is more than 80, 000 square meters.

For more than 30 years, Huanghau Group has always been insisting on the operation philosophy of "People oriented, Credit Based, Values Shared".

Nowadays, science and technology are under rapid development. We believe the human society's progress shall be highly promoted, and we will go with this trend to keep forging ahead actively.

We have passed ISO9001 Quality System Certification, ISO14001 Environment System Certification and other certificates on programs, including China Compulsory Certification (CCC) and CE. International certificates are under proceeding.

We are looking forward to cooperating with you and to creating a brilliant future together.
