Double Right Angle PCB Mount BNC Jack Connector

Name: Double Right Angle PCB Mount BNC Jack Connector
Brand: all-electronics-online.com
SKU: 724542705
Availability: InStock
Rating: 4.3 (38 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RH-801-0005
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector Gender:	Female Socket
Connector Application:	for CCTV Camera
Plating:	Nickel
Material:	Zinc Alloy/Plastic/Brass
Factory Direct Sale:	Yes
OEM:	Weclome
Type:	Generally Coaxial Connector
Coupling Mechanism:	Clamping Type

Product Description

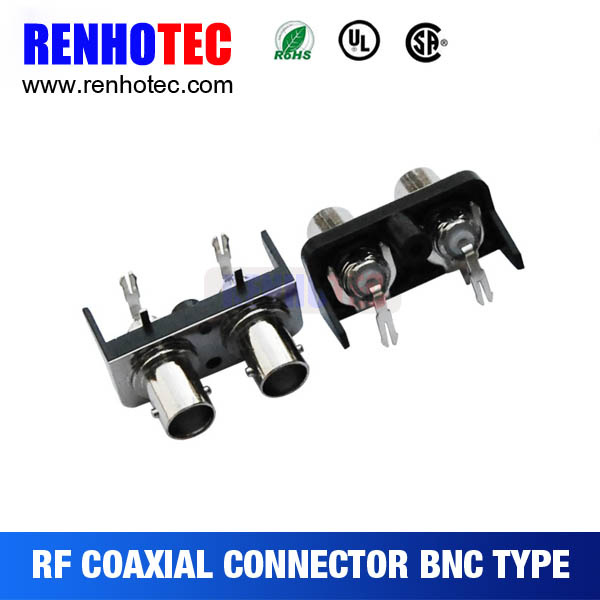

Double R/A PCB mount BNC jack connector

The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles.

Major Technical Characteristics
Temperature Range	-5 degree to +155 degree (PE cable -40 degree to +85 degree )
Impendance	50ohm, 75ohm
Frenquency Range	DC-4GHZ
Working Voltage	500V r.m.s at sea level
Workstandinging Voltage	1500V r.m.s at sea level
Center Contact Resistance	≤1.5Mohm
Outer Contact Resistance	≤1Mohm
Insulation Resistance	≥5000Mohm
Center conductor Retention Force	≤0.57N
Insertion Loss	≤0.20dB/3GHz
Voltagge Standing Wave Ratio :
Straight	≤1.22/3GHz
Right Angle	≤1.30/3GHz
Dutability (Mating)	≤500(cycles)
Materials
Body	Brass.........................Nickel
Insulator	Delrin.........................Natural
Contact Pin	Brass.........................Gold
Ferrule	Copper......................Nickel
Suitable cables
RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US)
