Double Sheath Underwater Fiber Cable GYTA333

Double Sheath Underwater Fiber Cable GYTA333
Price: US $ 5132-5300/Meter
Min Order: 2000/Meter
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: GYTA333 288B1.3
Color: Black
Application: Communication
Type: Single-mode Fiber
Certification: ISO9001
Connection Structure: 288 Cores G652D
Core: 288
Brand: Hongan
Sheath Material: MDPE

Product Description

Product Description
ItemUnitSpecification
Fiber TypeG.652D
Mode field diameter1310nmmm9.2 ± 0.4
1550nmmm10.4 ± 0.8
Cladding diametermm125.0 ± 1
Cladding non-circularity%£1.0
Core concentricity errormm£0.5
Coating diametermm242 ± 7
Coating/cladding concentricity errormm£12
Cable cut-off wavelengthnm£ 1260
Attenuation Coefficient1310nmdB/km£0.4
1550nmdB/km£0.3
Proof stress levelkpsi≥100
Note: Other parameters meet standard ITU-T G.652


Fiber countStructureFibers per tubeLoose tube diameter
(mm)
CSM diameter
/pad diameter(mm)
Thickness of inner jacket(mm)Thickness of outer jacket(mm)Cable diameter
(mm)
Cable
Weight
(kg/km)
2881+9+15122.0±0.12.2 /4.20.9±0.11.7±0.122.3 ±0.5943

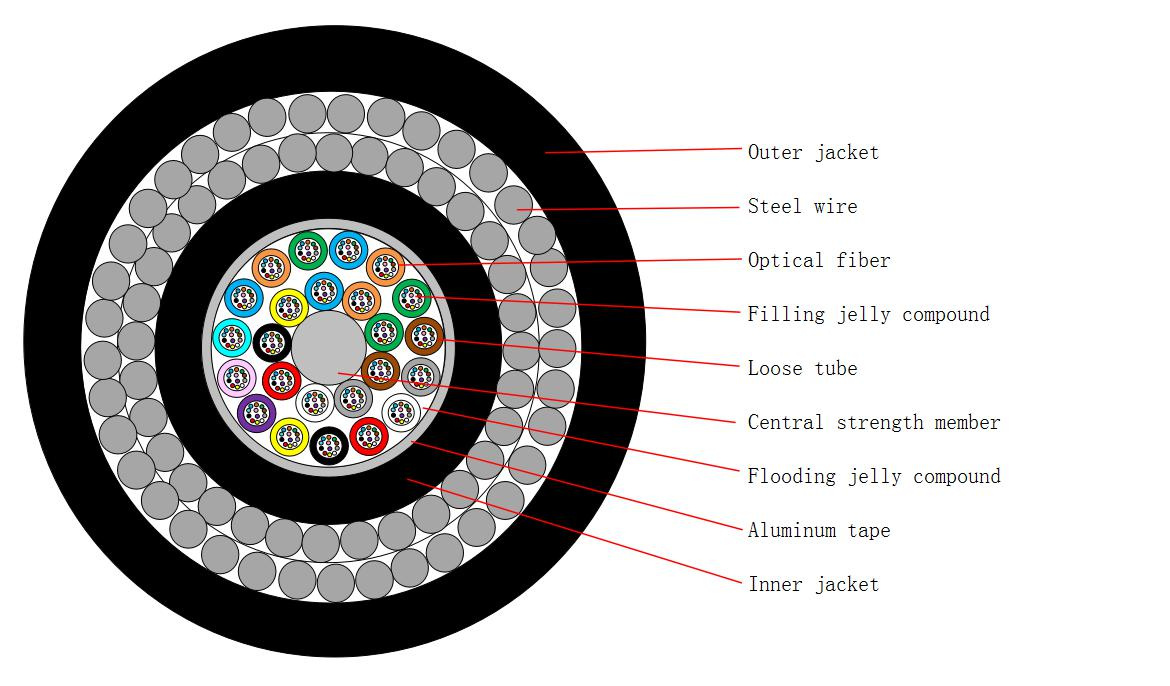

ItemParameters
Loose tubeMaterialPBT
ColorFull color spectrum
FillerMaterialPE
ColorBlack
CSMMaterialPhosphating steel wire
ArmouredMaterialPlastic coated aluminum strip
Inner jacketMaterialMDPE
ColorBlack
ArmouredMaterialGalvanized steel wire
Diameter0.9mm
Outer jacketMaterialMDPE
ColorBlack
Min. bending radiusStatic15 times cable diameter
Dynamic30 times cable diameter
Repeating bendingLoad:150N;number of cycles:30  No obvious addition attention, no fiber break and no cable damage.
Tensile performanceShort term10000N The addition attention0.1dB
CrushShort term5000N/100mm The addition attention0.1dB
TorsionLoad:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
ImpactImpact energy:1kg×1m; radius of hammer head:12.5mm; number of impact: 5  No obvious addition attention, no fiber break and no cable damage.


ItemStandardParameters
Operation temperatureIEC 60794-1-2 F1-40ºC~+70ºC
Water penetrationIEC 60794-1-2-F5Water level:1m ,sample:3m, After 24h,no water ingress.



Cable typeDrum
HeightWidthInner diameter
GYTA333-288B1.31450mm1150mm700mm

Company introduction:

HONGAN GROUP  is located in Shandong China.  We Specialized in producing  optical fiber cable, network data cable and multi pair telephone cables more than 30 years, also supply EPON , GPON, data center solutions and related  equipments.

Our products have passed  ISO9001 ,ISO14001 and OHSAS18001, meet the requirements of CE, RoHS, TLC and UL, and have been exported to Thailand, Cambodia ,Burma, Vietnam, Laos, Europe, Africa etc., more than twenty countries.

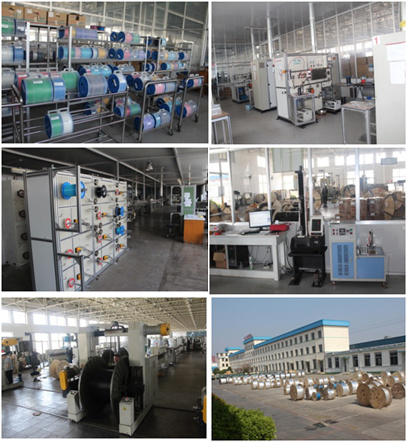

Advanced production lines:




Our customers:



Our certificates:





Welcome you select our products! Any inquiry, pls feel free to contact with us!

Best regards:
Cathy

Hongan Group
Phone:+8618643209364        Tel: +86-631-8357098
Website:  http://www.hongan.com.cn

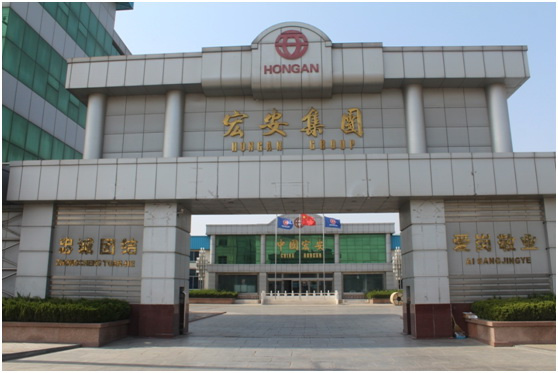

Hongan Group Co., Ltd, which locates at Wendeng city of Shandong peninsula, establised in 1985. It has 1500 employees and total assets is over 1.5 billion RMB yuan. It covers an area of 2 million square meters, construction area is 0.6 million square meters. Main products are optical fiber cables, data cables, communications cables etc. Its yearly productive capabilities are 4 million core kilometers, 0.5 million boxes, and 6 million pair kilometers respectively. It is now one of largest production, research and development, sales companies in China. It has 8 branches, such as Hongan Optical Fiber Cables, Hongan Data Cables, Hongan municipal Cables etc, provincial enterprise technology development center and post-doctor scientific research workstation.

Hongan optical fiber cable company has always stood on high starting point, high technology and high standard since it was founded. Production capacity is 50 million core kilometers. Respectively imported the world's advanced level of fiber optic cable production, testing equipment from Switzerland, United States, Japan and other countries. By technical exchange and cooperation with foreign countries, Hongan group has always stand in the forefront in the field of optical fiber manufacturing field.

Advanced equipment is the basic guarantee for the top quality products. Hongan group has invested $35 million and imported 22 sets advanced production lines of photoelectric communication cable and matched monitoring and control equipments and instruments, which imported from the United States, Japan and European Unions. Production capacity is 6 million pair kilometers. Products percent of pass is up to 99.9999%.
