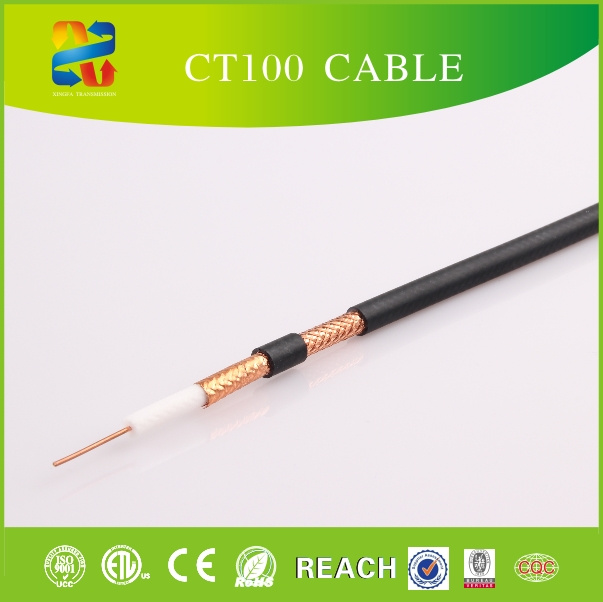

Double Shield Copper CT100 Cable

Name: Double Shield Copper CT100 Cable
Brand: all-electronics-online.com
SKU: 699912935
Availability: InStock
Rating: 4.8 (23 reviews)

Price:	US $ 0.2-0.3/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	20000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CT100 Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Center Conductor:	1.00mm Bare Copper
Dielectric:	4.6mm Foam PE
Shielding:	Cu/Al Foil+Bc Braiding
Coverage:	40%-95%
Jacket:	6.65mm PVC
Impedance:	75ohm
Velocity Of Propagation:	83%
Capacitance:	67 PF/M
SRL:	20 Db
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial Cable
Model:	CT100
Brand:	Xingfa

Product Description

Suitable For
Digital Satellite
Digital Terrestrial TV
Standard & High Definition SKY
Cable Virgin / NTL
Freesat

Physical Dimensions
Component		CT100
Conductor	Material	BC
	Dia. (mm)	1.00±0.01
Dielectric	Material	Foam PE
	Dia. (mm)	4.60±0.10
Shield	Material	Cu/Al Foil + BC Braid
	Coverage	40%-95%
Jacket	Material	PVC
	Dia. (mm)	6.65±0.10
Electrical Characteristics
Impedance(Ω)		75±3
Velocity of Propagation		83%
Capacitance(pF/m)		67
Structural Return Loss(≥dB)		20
Nominal Attenuation [@ 68° F. (20° C)]
Frequency(MHz)		Attenuation (dB/100m)
10		1.9
50		4.8
100		6.9
200		9.6
400		12.3
700		17.1
900		19.0
1000		21.1

Packing
1) Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
