Cixi Kefa Electronics Co., Ltd. >> Double Side Barrier Terminal Blocks 13.0mm Pin Spacing with Cap

Double Side Barrier Terminal Blocks 13.0mm Pin Spacing with Cap

Double Side Barrier Terminal Blocks 13.0mm Pin Spacing with Cap
Price: US $ 0.5/Piece
Trade Terms: FOB,EXW,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: KF37S-13.0mm pitch
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pitch: 13.0mm
Poles: 1p-24p
Color: Black
Rated Voltage: 600V
Rated Current: 50A
Wire Range: 22-8AWG
Carton Size: 43*27*36cm
Application: Communication
Environmental Protection: Resistance to Environmental
Connection Mode: Threaded Connection
Shape: Rectangle
Contact Termination Form: Screws Fixed
Brand: Kefa

Product Description

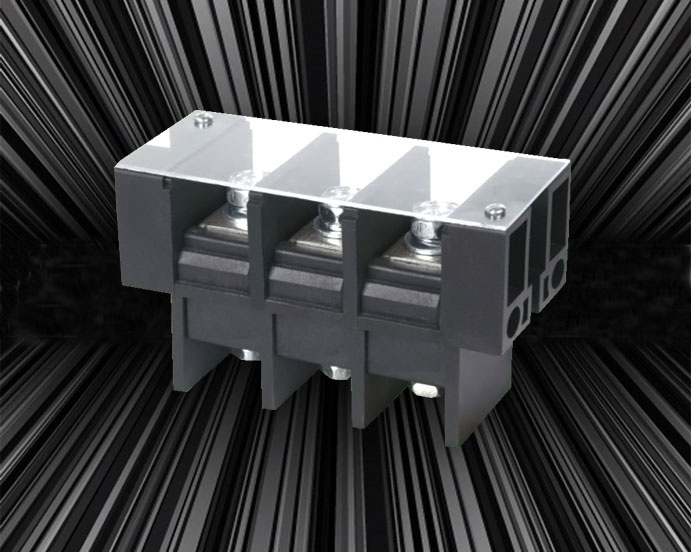

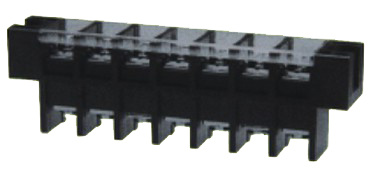

Dual side barrier terminal blocks 600V 50A 13.0mm pin spacing with cover


KF37S
Material:
Pitch: 13.00mm
Poles: 1P-15P
Screw: M4 steel, Ni plated
Terminal: Brass, Tin-plated
Housing: PBT. UL94V-0
Capability:
Rated Voltage: 600V
Rated Current: 50A
Wire Range: 22-8AWG
Withstanding Voltage: AC2500V/1Min
Temp Range: -40deg-+130deg
Torque: 18kg. Cm
About our company






Cixi Kefa Electronics Co., Ltd is a manufacturer Founded in 1990 which is a new products development, mass-producing and branding sales' electronic components company, specializing in Terminal block, connectors and precision moulds.

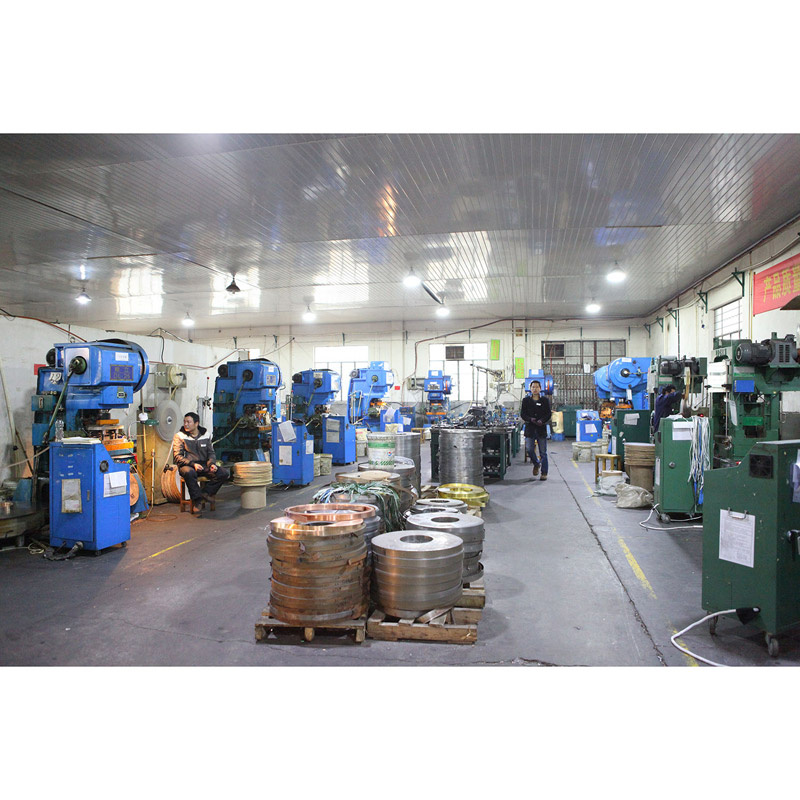

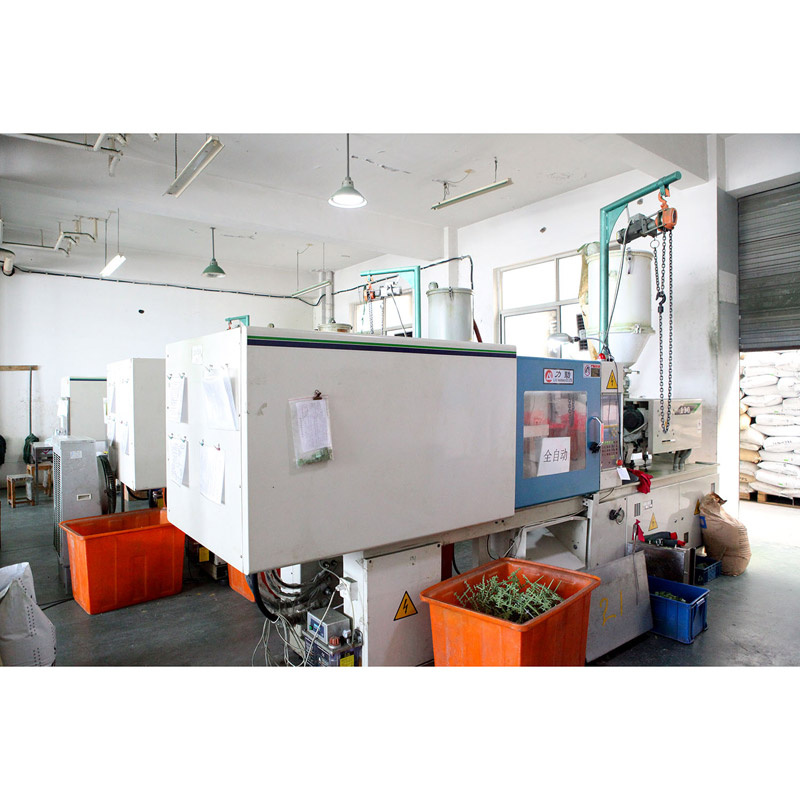

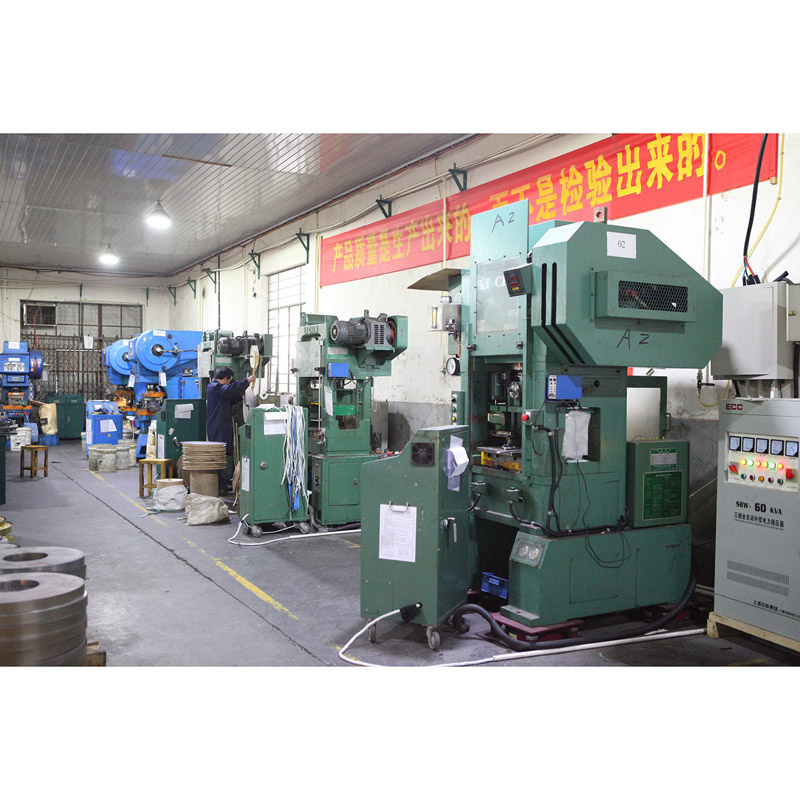

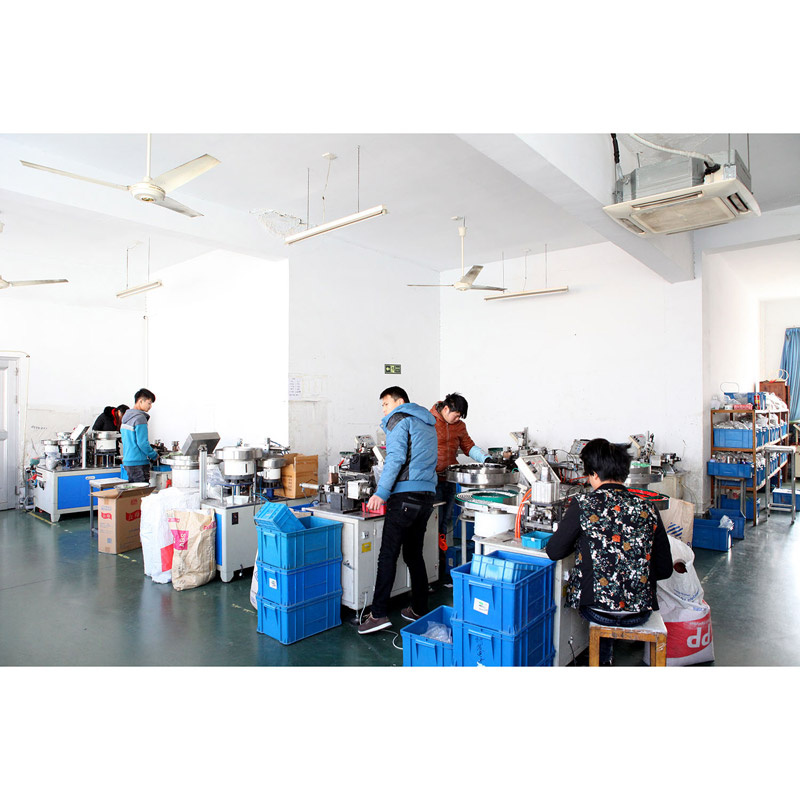

Kefa covers an area of 10000sqms with a building area of 1500sqms, having more than 500 employees, including research and development staff 80.Kefa have established a series of strong departments, like R&D center, Mould workshop, Auto-tapping and Auto assembly.Our R&D center is equipped with advanced CIMS system, Mould workshop equipped with hundreds of high precision devices, like Mitsubishi, etc.To maintain and enhance the workmanship of precise injection, punching, die casting, and cutting.Meanwhile to upgrade the competitiveness in keeping the quality, cost reduction from Computerize working and auto production artwork.

We owned professional laboratory acknowledged by VDE, UL.Our factory have been granted ISO9001, ISO14001 management system certification and we have developed more than 400 types and 5000 specifications of products, our products have been approved by CE, TUV, RoHS, CQC, CB, UL and VDE.We well cooperating with more than 1000 clients in the world, some are the top of world 500 enterprises.

The company pays more attention on the innovation management, and the tenet of the company lies in creating a harmonious situation with the related people and things.Self-discipline and social commitment would embrace everything.
