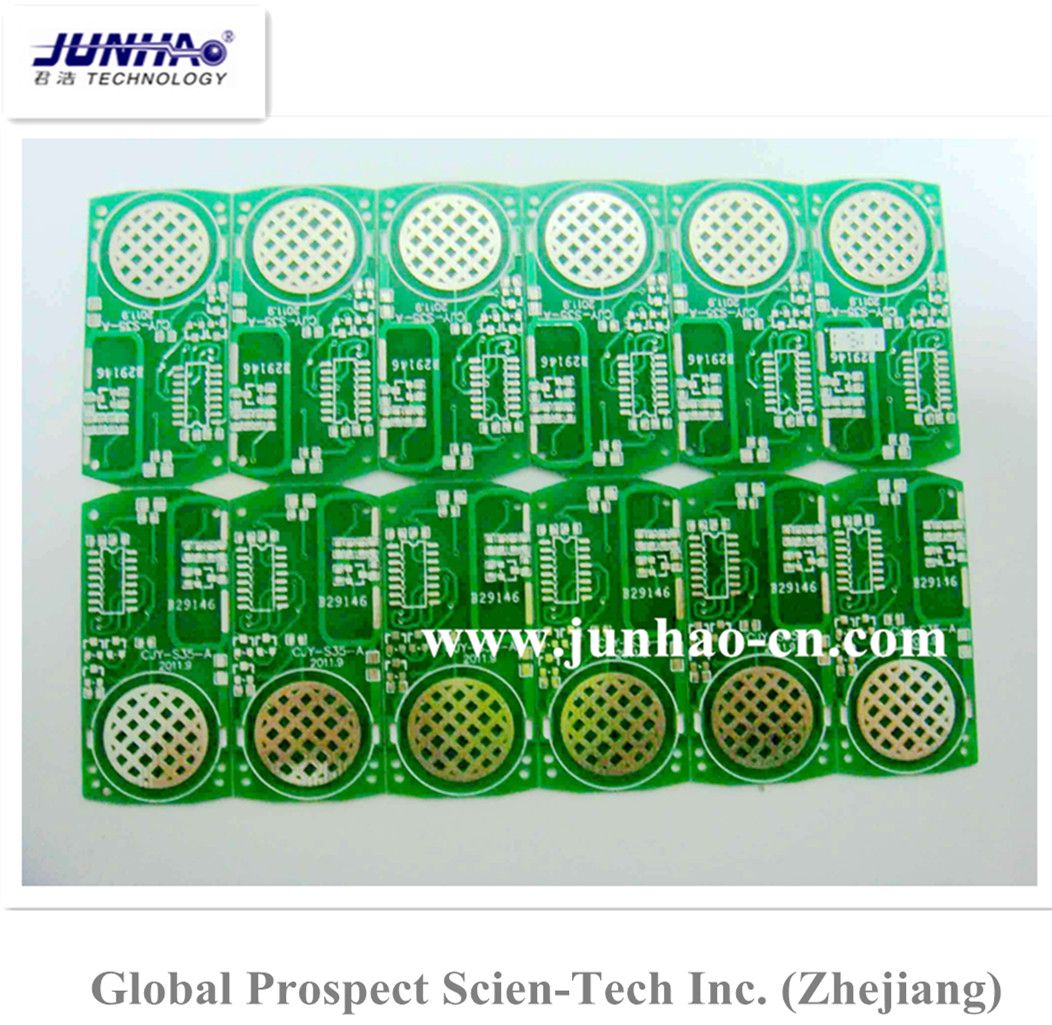

Double Side PCB with Enig Finish

Name: Double Side PCB with Enig Finish
Brand: all-electronics-online.com
SKU: 711341295
Availability: InStock
Rating: 4.6 (120 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,others
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GP2015008
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness:	1.6mm
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

Specification: 1. Laminate: FR-4, Anti-CAF, 1.0mm, 1/1 OZ 2. Surface Finish: Lead-free HASL 3. Profile Finsh: CNC Routing & Auto V-Cut 4. Packing; Auto-Vacumme Produce Tech and Management System: 1. Under UL Tech and Comply with RoHS Standard. 2. Under ISO9001: 2008 & TS16949: 2009 Quality Management. MANUFACTURING CAPABILITY ITEMS PARAMETER Mechanical 1 Material FR-4, CEM-1, CEM-3, Aluminium Based, Halogen Free 2 Layers 1, 2, 4, 3 Board Thickness 0.8mm-3.2mm 4 Min PTH Size 0.25mm±0.075mm 5 Min NPTH Size 0.2mm±0.05mm Artwork 1 Min Conductor Width 0.1mm/4mil 2 Min Conductor Space 0.1mm/4mil 3 Min Pad Size 0.1mm/4mil 4 Hole Copper Thickness ≥20um or as required 5 Profile Routing, Punching, V-Cut,Chamfer 6 Chamfer Angle 30 45 60 7 Warp & Wrist ≤0.7% Soldering mask 1 Availbal Colors Green, Blue, Red, White, Black 2 Peelable Solder Mask Available 3 Thickness ≥10um or as required Silkscreen 1 Availbal Colors Green, Blue, Red, White, Black 2 Min Silkscreen Line Width 0.15mm Finishing 1 HASL 1um-40um 2 Lead-free HASL 1um-40um 3 Immersion gold over nickel Ni: 150um-300um Au: 1u" -3u" 4 Hard Gold Plating Ni: 150um-300um Au: 0.5um-3um 5 OSP 0.2um-0.5um 6 Carbon Ink Printing 7 Golder Finger Tolerence 1 Outline Tolerance ±0.1mm -- ±0.125mm 2 Hole Diameter Tolerance PTH: ±0.075mm NPTH: ±0.05mm 3 Hole Location Tolerance ±0.1mm

Introduction

Zhejiang Junhao Electronics Co., Ltd established in Wenzhou, China...

Total investment in factory and equipments: Over RMB 360million.

We will provide you best PCB and service.

History

1. Year 2001: Established in Wenzhou China.

2. Year 2005: Build a New Factory with 15, 000 Square Meters.

Boost our produce capability to 40, 000m² /Month.

Belief

Better Products, Better World

We focus on PCB manufacturing, especially on Double-Side PCB.

Certificates

1. In 2004, we gained UL Accreditation. Our UL file No: E250425

2. In 2004, we were awarded RoHS Compliant Report

3. In 2010, we were awarded ISO 9001: 2008 and TS16949: 2009

4. We are the President Unit of PCB in Wenzhou CPCA

5. We are the Vice-President unit of CPCA (China Printed Circuit Association) in China.

Our Mission

1. To increase customer' S products' Value by providing Best Quality and

Best Solution.

2. To let people around us have Better Products and makes our World Better.

Zhejiang Junhao Eletronics Co., Ltd. Sincerely welcome you to join with us and make joint efforts to compose a new win-win chapter together.
