Double Sided Flexible PCB Board on 0.15mm Thick with Immersion Gold

Name: Double Sided Flexible PCB Board on 0.15mm Thick with Immersion Gold
Brand: all-electronics-online.com
SKU: 838900365
Availability: InStock
Rating: 4.9 (33 reviews)

Price:	US $ 1.21/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-349-V1.2
Board Thick:	0.1mm
Surface Finish:	Immersion Gold
Copper Thick:	1 Oz
Minimum Trace and Space:	5 Mil/5 Mil
Minimum / Maxium Holes:	0.3mm / 0.3mm
Solder Mask Color:	Yellow
Legend Color:	White
Test:	100% Electrical Test
Contour/Cutting:	Laser Cut
Via:	None
Structure:	Single-Sided FPC
Material:	Polyimide
Combination Mode:	Adhesive Flexible Plate
Application:	Bluetooth
Conductive Adhesive:	Conductive Silver Paste
Brand:	Bicheng

Product Description

Product profile

1.1 General description

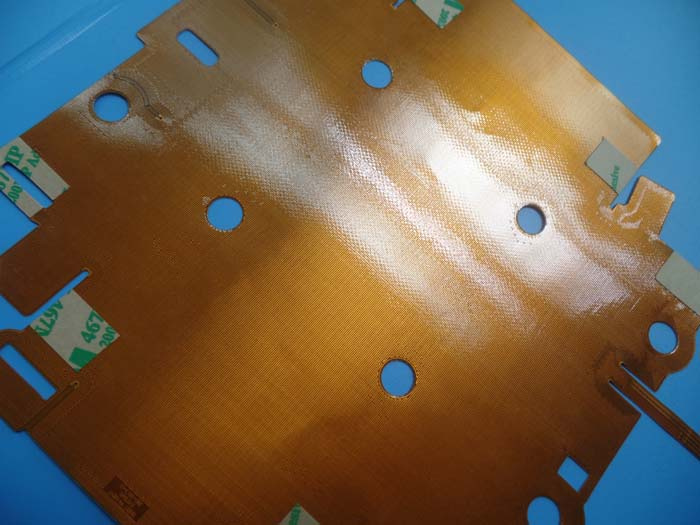

This is a type of flexible printed circuit for the application of GPS tracking systems. It's a 2 layer board at 0.15mm thick. The base laminate is from ITEQ, It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Polyimide stiffner is applied on the inserting part.

1.2 Features and benifits
Excellent flexibility
Reducing the volume
Weight reduction
Consistency of assembly
Increased reliability
Controllability of electrical parameter design
The end can be whole soldered
Material optionality
Low cost
Continuity of processing
Quick and on-time delivery
Delivery on time. We keep higher than 98% on-time-delivery rate.

1.3 Application
keypad FPC, Industrial control computer soft board, consumer ETC (Electronic Toll Collection ) soft board,

1.4 Parameter and data sheet

Number of Layers	2
Board Size	160 x 165mm=1PCS
Board Type	Flexbile cirucit
Board Thickness	0.15mm +/-10%
Board Material	Polyimide (PI) 25um
Board Material Supplier	ITEQ
Tg Value of Board Material	60ºC

PTH Cu thickness	≥20 um
Inner Iayer Cu thicknes	N/A
Surface Cu thickness	35 um (1oz)

Coverlay Colour	Yellow
Number of Coverlay	2
Thickness of Coverlay	25 um
Stiffener	NO

Type of Silkscreen Ink	NO
Supplier of Silkscreen	NO
Color of Silkscreen	NO
Number of Silkscreen	NO

Mininum Trace (mil)	4 mil
Minimum Gap(mil)	4 mil

Surface Finish	Immersion Gold
RoHS Required	Yes
Famability	94-V0

Thermal Shock Test	Pass, -25ºC±125ºC, 1000 cycles.
Thermal Stress	Pass, 300±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6013C Class 2
