Double Sided FPC Circuits Board Rigid-Flexible PCB for Sensor

Name: Double Sided FPC Circuits Board Rigid-Flexible PCB for Sensor
Brand: all-electronics-online.com
SKU: 690772622
Availability: InStock
Rating: 4.9 (143 reviews)

Price:	US $ 0.66-0.88/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FL912
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Copper Thickness:	1/1/1/1oz
Board Material:	Fr4
Board Thickness:	1.6mm
Solder Mask:	Yellow
Silk Screen:	Orange
Surface Treatment:	HASL Lead Free
Structure:	Single-Sided FPC

Product Description

Double Sided FPC Circuits Board Rigid-Flexible PCB for Sensor

Commodity Introduction

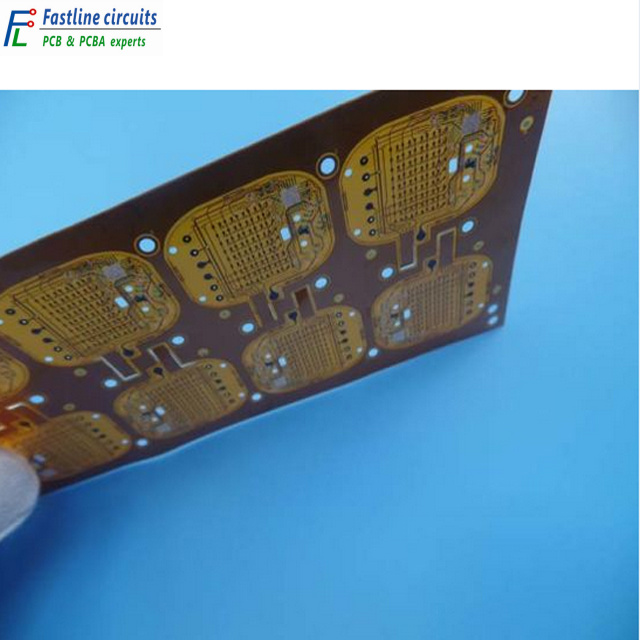

This is a type of flexible PCB for the application of Sensor Device. It's a 2 layer FPC at 0.15mm thick in a panel form. The base laminate is from ITEQ, It's fabricated per IPC 6012 Class 2 using supplied Gerber data.

Parameter & Data Sheet

Size of Flexible PCB	41.5X 112.3mm
Number of Layers	2
Board Type	Flexible PCB
Board Thickness	0.15mm
Board Material	Polyimide (PI) 25µm
Board Material Supplier	ITEQ
Tg Value of Board Material	60ºC

PTH Cu thickness	≥20 µm
Inner Iayer Cu thicknes	N/A
Surface Cu thickness	70um

Coverlay Colour	Yellow
Number of Coverlay	2
Thickness of Coverlay	25 µm
Stiffener Material	Polyimide
Stiffener Thickness	0.2mm

Type of Silkscreen Ink	IJR-4000 MW300
Supplier of Silkscreen	TAIYO
Color of Silkscreen	White
Number of Silkscreen	1

Peeling test of Coverlay	No peelable
Legend Adhesion	3M 90ºC No peeling after Min. 3 times test

Surface Finish	Immersion Gold
Thickness of Nickle/Gold	Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required	Yes
Famability	94-V0

Thermal Shock Test	Pass, -25ºC±125ºC, 1000 cycles.
Thermal Stress	Pass, 300±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6013C Class 2
