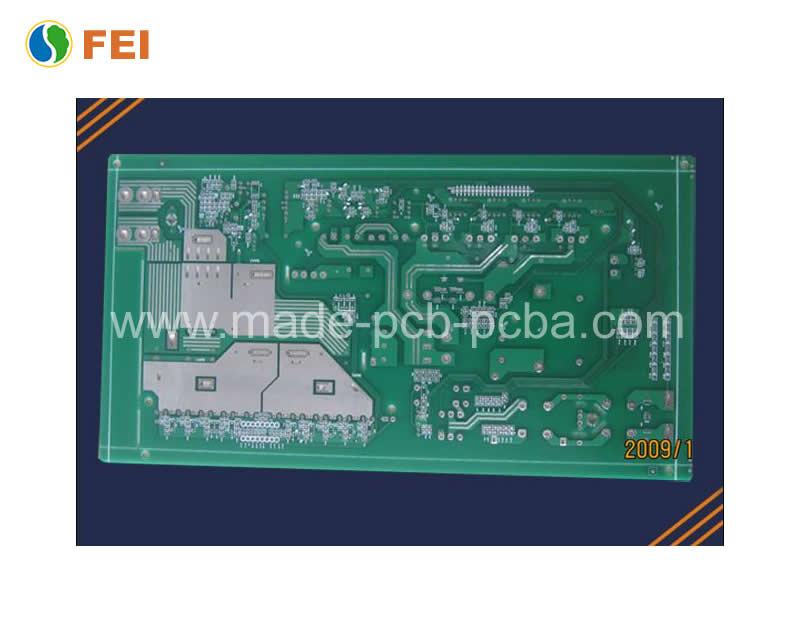

Double Sided HDI 3oz Copper Thickness PCB

Name: Double Sided HDI 3oz Copper Thickness PCB
Brand: all-electronics-online.com
SKU: 676794932
Availability: InStock
Rating: 5 (73 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	200/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Rigid Circuit Board
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Dielectric:	FR-4

Product Description

Product Name: Double sided HDI 3oz copper thickness PCB
Number of Layers: Double sided
Base Material: FR4
Copper Thickness: 3OZ
Board Thickness: 1.6mm
Min. Hole Size: 0.1mm
Min. Line Width: 3mil
Min. Line Spacing: 3mil
Surface Finishing: ENIG
Drilling Tolerance (PTH): I0.07mm
Board Thickness Tolerance: ± 10%
Min Annular Ring: 0.1mm (4 mil)
Min Trace Width: 0.075mm (3mil)
Solder mask Clearance: 0.1mm (4 mil)

Shenzhen Tengyuxin Technology Co., Ltd is a professional PCB & PCBA manufacturer which specialized in manufacturing SS, DS, HDI and multilayer PCB. Our modern factory is located in Qingyuan Guangdong which has more than 3000 staffs and 101, 000 square meters workshop. We can provide all-in -one service ( R&D, manufacturing and sales) for you
