Double-Sided High Quality Flexible FPC

Name: Double-Sided High Quality Flexible FPC
Brand: all-electronics-online.com
SKU: 724755845
Availability: InStock
Rating: 5 (117 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	D7401A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimensions:	116 * 59.5mm
Material:	Polyimide
Structure:	Double-Sided FPC
Application:	Digital Products

Product Description

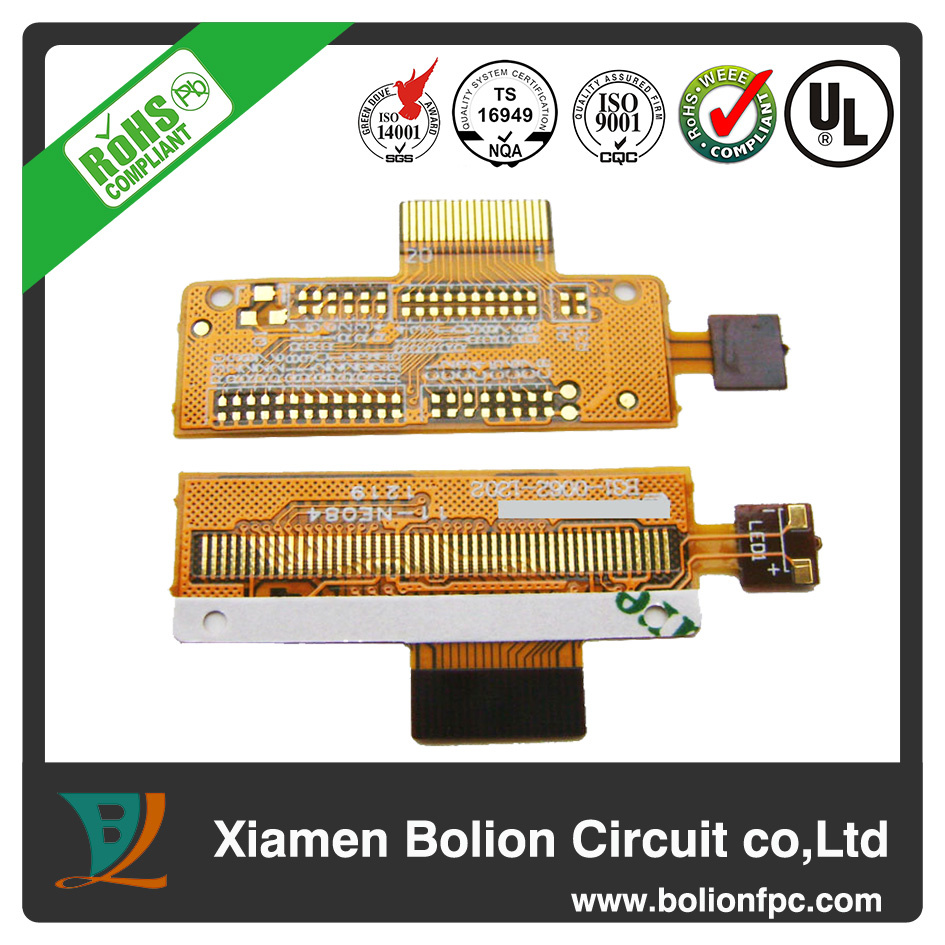

High-quality Double-sided FPC
Model: 7401A
Type: Double-sided FPCB
Layers:2
Dimensions: 116 x 59.5mm
Line width/space: 0.12/0.12mm
Materials: 0.5oz Cu (RA)/0.5mil ADH/0.5mil PI/0.5mil ADH/0.5oz Cu (RA)
Coverlay: 25um ADH/0.5mil PI
Silkscreen: Legend x2
Surface: ENIG (Au: 0.03 to 0.09mm, Ni: 3 to 9um)
Pad width tolerance: ±0.05
Coverlay tolerance: ±0.3
Stiffener tolerance: ±0.5
General tolerance: ±0.2
Meet the RoHS & WEEE lead-free requirement
Advantage:
1. Over 10 years' manufacturing experience
2. Assembly provided
3. 100% quality tested before shipment
4. Certificate of UL, ISO9001, ISO14001 and ISO/TS16949.
5. Our Products meet the RoHS & WEEE lead-free requirement.
6. Small Order accepted
7. 3 weeks for massive production; 10 days for sample since material prepared
Urgent case or spread delivery schedule will be updated per negociation then
FPC Apply:
medical apparatus
automobiles
aerospace
industrial equipment
detecting instruments
smart-home controller
consumer electronics, etc

Xiamen Bolion Ciruit Co., Ltd is an expert manufacturer that specializes in flexible Circuit boards & Rigid-Flex PCB based in China since 2003.

All of our facilities are ISO 9001, ISO 13485(Medical decices), ISO 14001, TS 16949(Automotive) RoHS, and UL(E228871) certified. This investment into equipment and training has transformed Bolion into a global supplier of Ultra-High Quality flexible and rigid-flex boards.

The key markets we serve are primary located in North America and Europe include Top 500 companies in the Medical, Automotive, Wearable, and CM/EMS industries.

Bolion Tech major in High-mix Low volume production, provide quality, cost-effective solution, on time for our customers.

Quick lead-times:

-Single layer Flex: 2~5 days

-Double layer Flex: 2~5 days

-Multi-layer Flex(Max. 12 layers): 4~8 days

-Rigid Flex: 5~8 days

Bolion's commitment to you is that we will strive to become a full member of your engineering and manufacturing team focused on delivering you high quality products and service, on time, while achieving your stated technical and cost goals.

Bolion Business extends: With more than 13 years developing, Bolion now add in house SMT line, devoted to provide one-step service for our customers.

If you are interested in finding an FPC/Rigid-Flex PCB and SMT supplier in China, please freely contact us, I do believe Bolion will be your good choice.
