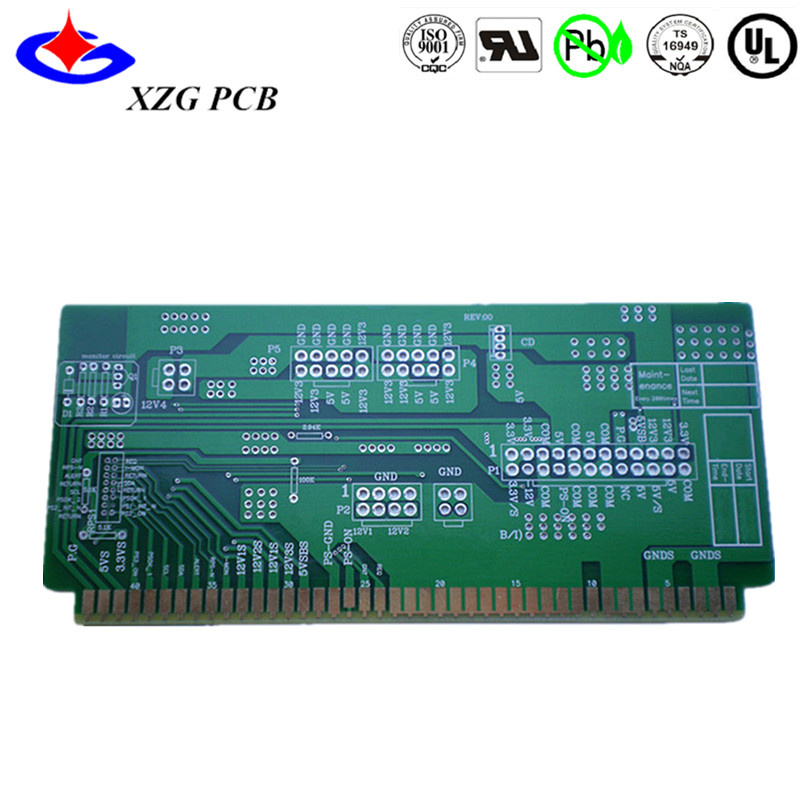

Double-Sided PCB Board for Industry Control Board

Name: Double-Sided PCB Board for Industry Control Board
Brand: all-electronics-online.com
SKU: 781381475
Availability: InStock
Rating: 4.6 (76 reviews)

Price:	US $ 0.004-0.22/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WBPN1012AO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Panel Size:	180mm*85mm
Min. Hole Size:	0.35mm
Min Line Width And Distance:	0.2mm/0.2mm
Solder Mask:	Green
Silkscreen:	White
Structure:	Double-Sided Rigid PCB
Material:	Polyester Glass Fiber Mat Laminate
Production Process:	Subtractive Process
Brand:	Xzg

Product Description

Specification:

Material:FR4
value:tg135
board thickness:1.6mm
copper thickness:2/2oz
Surface treatment:ENIG
Application:industry control

Our main process capability:

Items	Standard	Advanced
Layer Count	1-20	1-24
Base Material	CEM1,CEM3,FR4,IMS(Aluminum)
basic supplier	Kingboard,Shengyi,Nanya,ITEQ,Rogers,Totking, Ventec & etc
Board Thickness	0.2-5.0mm	0.2-7.0mm
Max. Panel Size	520X660mm	680X1200mm
Min. Mechnical Drill	0.2mm	0.15mm
Min. Line width&space	0.1/0.1mm	0.076/0.076mm
Max. Copper Thickness	6 oz	8oz
Min BGA size	0.25mm	0.2mm
MIn Bonding IC width	0.178mm	0.127mm
Max. Aspect Ratio	8:1	10:1
impedance tolerance	<=10%	<=7%
Solder Mask Color	Green,Black,White,Blue,Red,Matt Green, Matt Black
Silkscreen Color	White,Black,Yellow,Grey,Orange
Surface Treatment	HASL(Lead Free),OSP,ENIG, ENEPIG,Immersion Silver,Immersion Tin, Hard Gold Plating,Tin Plating, Silver Plating

Our Lead time:

layers	1~2layers	4layers	6layers	8layers
sample	3~4 days	5~6 days	6 ~7days	7 ~8days
Volume production	7~9 days	11 days	14 days	15 days

We offer:
    PTH 1~20layer PCB,
    Aluminum PCB,
    buried/blind via PCB,
    high frequency PCB,
    Heavy copper PCB-max 8oz

Why us:
     UL (E246887), ISO9001/14001,ISO/TS16949certified.
     Staff of 1000+.
     13+years experience,annual turnover USD 80Million.
     Full-process workshop.
     All exported PCB have double-check before sending out.
     One-stop EMS service,pcb assembly and SMT are available.
