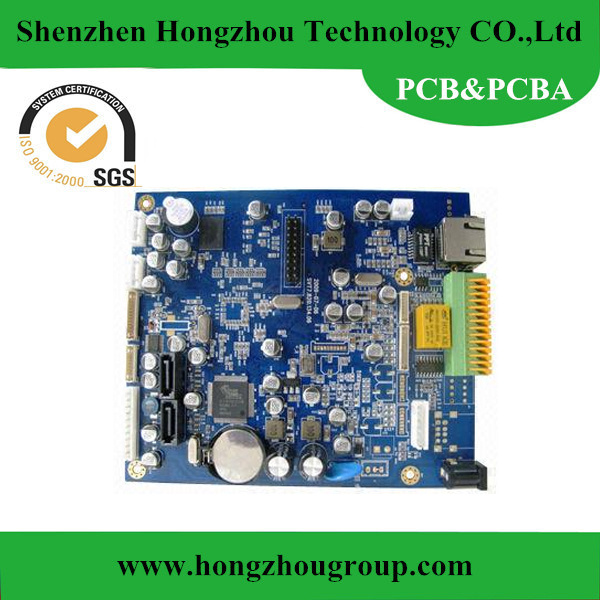

Double Sided PCB Board PCBA with Assembly Service in China

Prod Model:	HZGT-1308
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Item:	PCB Assembly
Size:	Custom
Min. Hole Size:	0.1mm
Number Of Layers:	4-10 Layer
Min. Line Spacing:	0.1mm
Board Thickness:	1.6mm
Surface Finishing:	Lead-Free HASL
Copper Thickness:	1/1/1/1 Oz
Factory Location:	Shenzhen, China
Metal Coating:	Tin
Mode Of Production:	SMT
Layers:	Double-Layer
Base Material:	FR-4
Certification:	SGS
Customized:	Customized
Condition:	New

Product Description

pcba assembly service/ pcb assemblies/ electrical circuit board:

PCB capability and services:

1. Single-sided, double side & multi-layer PCB. FPC. Flex Rigid PCB with competitive price,  good quality  and excellent service.

2. CEM-1, CEM-3 FR-4, FR-4 High TG, Aluminum base material, Polyimide, etc.

3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.

4. Quantities range from sample to mass order<

5. 100% E-Test

SMT (Surface mounting technology), COB, DIP.

1. Material Sourcing Service

2. SMT assembly and Through hole components insertion

3. IC pre-programming / Burning on-line

4. Function testing as requested

5. Complete Unit assembly (which including plastics, metal box, Coil, cable inside etc)

6.OEM/ODM also welcomed

 What we need:

* Gerber files of the bare PCB
* Bill of materials to include: Manufacturer's part number, type of part, type of packaging,
  component locations listed by reference designators and quantity
* Dimensional specifications for non-standard components
* Assembly drawing, including any change notices
* Final test procedures (if available)

Our advantages :

1)  High-end, Small volume and Various kinds of PCBA service offered;
2)  Speedy, Flexible and one-stop service in PCBA;
3)  Assembly and Purchasing service offered, all components  are promised to be purchased 100%
      from Original factories or their pointed agents;
4)  Transparent quotation,cost and benefit are detailedly opened to customer;
5)   With professional Engineers and Long-term successful experience in cooperating with
      customers inland and overseas, all new projects can be developed faster and better than expected;
6)   With USA or Japan imported tin cream and tin bar, and 100% AOI testing during production,
      all PCBAs we made are more reliable.
