Double Sides Enig Finish PCB High Quality PCB Board for Electronics Product

Name: Double Sides Enig Finish PCB High Quality PCB Board for Electronics Product
Brand: all-electronics-online.com
SKU: 804300955
Availability: InStock
Rating: 4.3 (121 reviews)

Price:	US $ 0.9-1.2PCS
Min Order:	1PCS
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HC000003
Board Thickness:	1.6mm
Surface Finihsing:	Immersional Gold
Lead Time:	7 Working Days
Certificate:	UL, RoHS and ISO9001
PCB Testing:	E-Testing; Flying Probe Testing
Mask Ink Color:	White/Black/Green/Red/Yellow/Blue
Color:	Green Blue Red
Number Of Layers:	Double Sides
Copper Thickness:	1oz
Condition:	Original Made
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Processing Technology:	Immersional Gold
Brand:	Ucreate PCB

Product Description

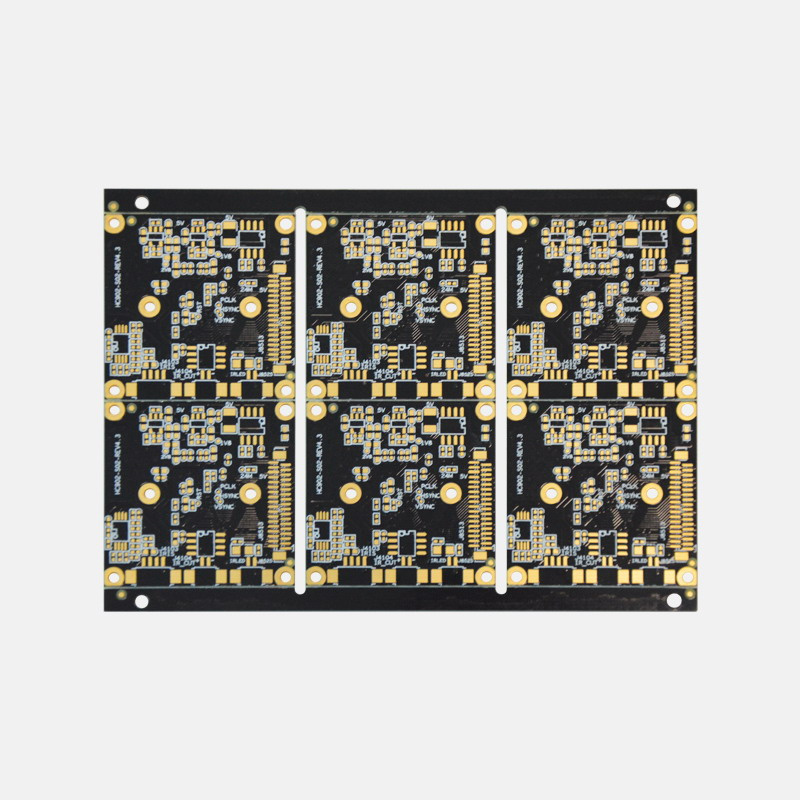

Double Sides Enig Finish PCB High Quality PCB Board for Electronics Product
Product Description:
*Layers: Double Sides
*Base material: FR-4
*Thickness: 1.6mm
*Solder mask: Black (Green, red, yellow, white)
*Min. Line width: 0.075mm
*Min. Line space: 0.075mm
*Min. Hole diameter: 0.1mm
*Surface treatment: Immersion gold (OSP. Lead free HASL)
*Blind/buried via holes: OK
*lead time: Seven to ten days (HDI: About 30 days)

We can also make quick pcb. As customers plates copied from the PCB, PCB design, prototype production, production, processing, and other SMT one-stop service.
Single-double sides pcb delivery time: 12-24 hours. 4 layer- 8 layer pcb delivery time: 48-96 hours

We focus on various pcb needs, such as LED light, customers electronics, Industrial control, Automative and other electronics, dedicated to make every customer satisfied.

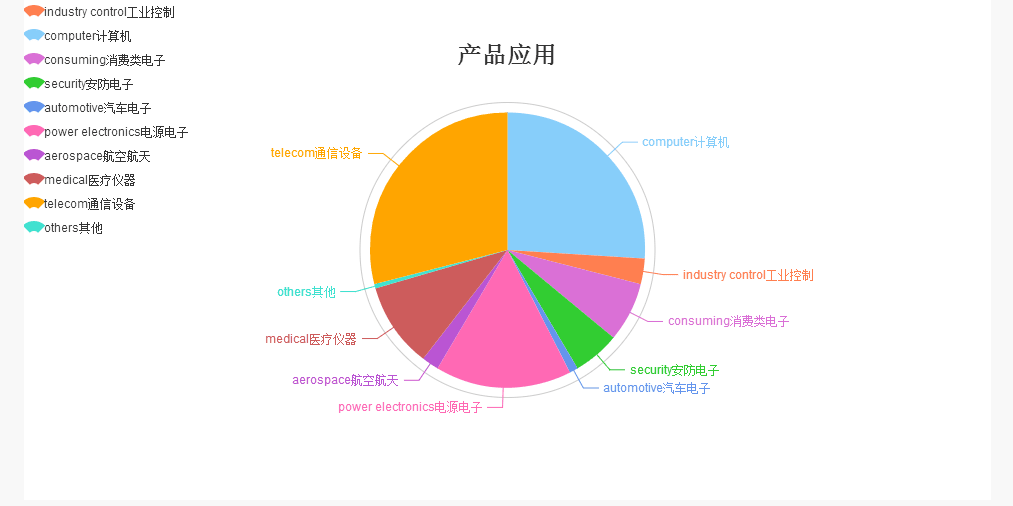

1.Products Application

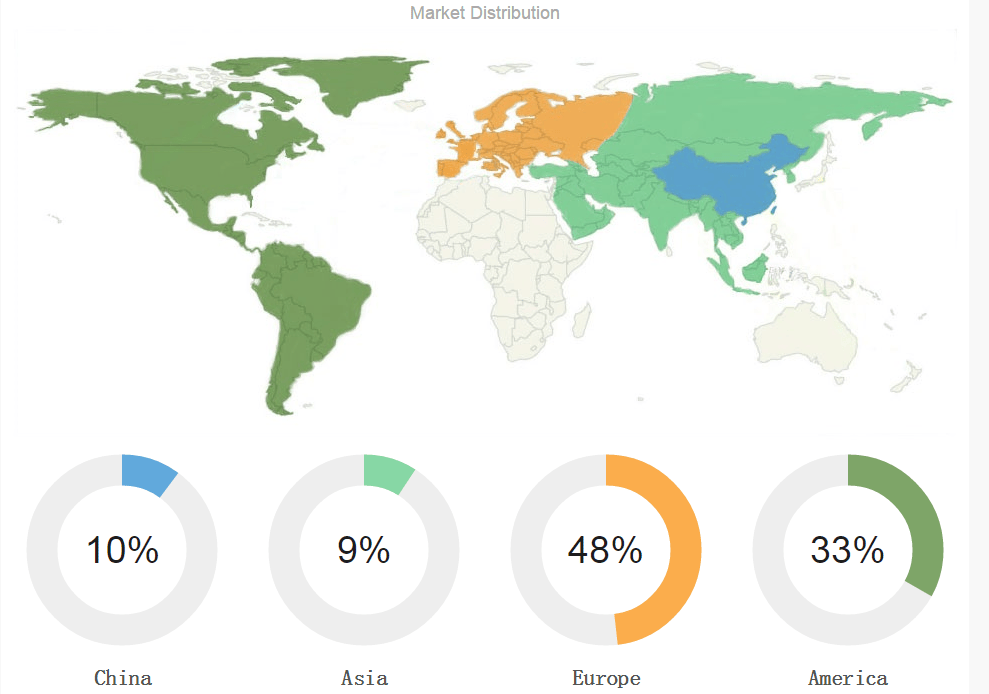

2. Market Distribution

3.Technical Capabilities

Files	Gerber, Protel, Powerpcb, Autocad, Cam350, etc
Material	FR-4, Hi-Tg FR-4, Lead free Materials (RoHS Compliant) , CEM-3, CEM-1, Aluminium, High frequency Material (Rogers, Teflon, Taconic)
Layer No.	1 - 30 Layers
Board thickness	0.0075"(0.2mm)-0.125"(3.2mm)
Board Thickness Tolerance	±10%
Copper thickness	0.5OZ - 4OZ
Impedance Control	±10%
Warpage	0.075%-1.5%
Peelable	0.012"(0.3mm)-0.02'(0.5mm)
Min Trace Width (a)	0.005"(0.125mm)
Min Space Width (b)	0.005"(0.125mm)
Min Annular Ring	0.005"(0.125mm)
SMD Pitch (a)	0.012"(0.3mm)
pcb with green solder mask and LF-FREE surface finishing BGA Pitch (b)	0.027"(0.675mm)
Regesiter torlerance	0.05mm
Min Solder Mask Dam (a)	0.005"(0.125mm)
Soldermask Clearance (b)	0.005"(0.125mm)
Min SMT Pad spacing (c)	0.004"(0.1mm)
Solder Mask Thickness	0.0007"(0.018mm)
Hole size	0.01"(0.25mm)-- 0.257"(6.5mm)
Hole Size Tol (+/-)	±0.003"(±0.0762mm)
Aspect Ratio	6:01
Hole Registration	0.004"(0.1mm)
HASL	2.5um
Lead free HASL	2.5um
Immersion Gold	Nickel 3-7um Au:1-3u''
OSP	0.2-0.5um
Panel Outline Tol (+/-)	±0.004''(±0.1mm)
Beveling	30°45°
V-cut	15° 30° 45° 60°
Surface finish	HAL, HASL Lead Free, Immersion gold, Gold plating, Gold finger, immersion silver, immersion Tin, OSP, Carbon ink,
Certificate	ROHS ISO9001:2000 TS16949 SGS UL
Special requirements	Buried and blind vias, Impedance control, via plug, BGA soldering and gold finger

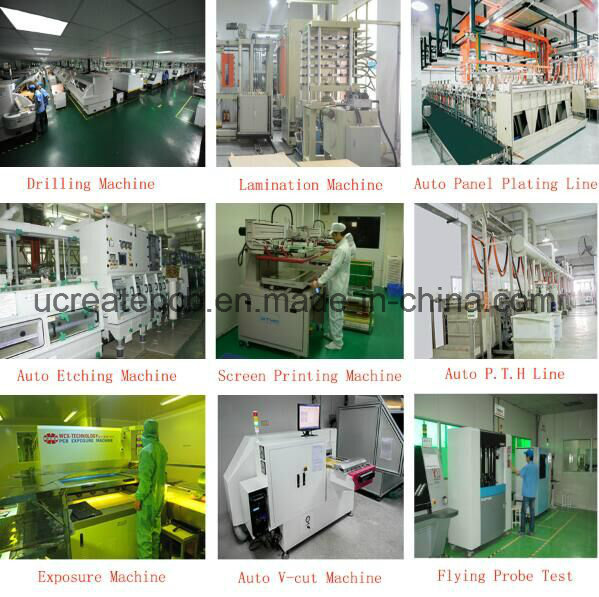

4.Products Equipment
