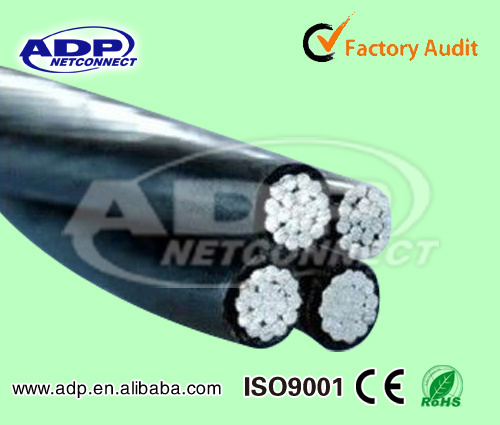

Douplex /Triple /Quadruplex Service Power Wire ABC Al Cable

Prod Model:	triple power cable
Cable Model:	ABC Cable, Aerial Bundle Cable
Cross Section Of Conductor:	1.5-800mm2
Standard:	IEC, ASTM, BS, DIN, CSA, etc
Conductor Shape:	Circular Core or Compact Core
Type Of Conductor:	Stranded
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	CE
Sheath Material:	PE
Wire Core Material:	Aluninum

Product Description

Overhead Douplex /Triple /Quadruplex Service power wire ABC AL Cable

Applications:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.

Construction
Phase Conductor construction:The phase conductor is aluminum alloy 1350-H19 hard-drawn, compressed concentric-lay-stranded.
Neutral Conductor Construction
Cable assemblies are available with the following neutral conductors:
Aluminum conductors, coated-steel reinforced (ACSR), concentric-lay-stranded
Aluminum alloy 1350-H19 hard-drawn, concentric-lay-stranded
Aluminum alloy 6201-T81, concentric-lay-stranded
Insulation Material
The standard insulation on the phase conductor is black low-density crosslinked polyethylene (XLPE)
Alternatively, black linear low-density polyethylene (LLDPE) insulation with a 75°C temperature rating is available upon request.
Standards
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

Specifications:


Cross Section of Conductor	Min.Nos. of Wires for Conductor	Insulation Thickness	Average Max. O.D.per Single-core	Max.Conductor Resistance at 20ºC	Min Insulated Resistance at Rated Working Temperature		Cable Tensile Breaking Force
(mm2)	(mm)	(mm)	(mm)	(Ω/km)	(MΩ.km)
2x10	6	1	6.5x13.0	3.08	0.0067	0.67	1650
2x16	6	1.2	8.0x16.0	1.91	0.0065	0.65	2512
2x25	6	1.2	9.4x18.8	1.2	0.0054	0.54	3762
2x35	6	1.4	11.0x22.0	0.868	0.0054	0.54	5177
2x50	6	1.4	12.3x24.6	0.641	0.0046	0.46	7011
2x70	12	1.4	14.1x28.2	0.443	0.004	0.4	10354
2x95	15	1.6	16.5x33.0	0.32	0.0039	0.39	13727
2x120	15	1.6	18.1x36.2	0.252	0.0035	0.35	17339
2x150	15	1.8	20.2x40.4	0.206	0.0035	0.35	21033
2x185	30	2	22.5x45.0	0.164	0.0035	0.35	26732
2x240	30	2.2	25.6x51.2	0.125	0.0034	0.34	34679
4x10	6	1	6.5x26.0	3.08	0.0067	0.67	1650
4x16	6	1.2	8.0x32.0	1.91	0.0065	0.65	2512
4x25	6	1.2	9.4x37.6	1.2	0.0054	0.54	3762
4x35	6	1.4	11.0x44.0	0.868	0.0054	0.54	5177
4x50	6	1.4	12.3x49.2	0.641	0.0046	0.46	7011
4x70	12	1.4	14.1x56.4	0.443	0.004	0.4	10354
4x95	15	1.6	16.5x66.0	0.32	0.0039	0.39	13727
4x120	15	1.6	18.1x72.4	0.252	0.0035	0.35	17339
4x150	15	1.8	20.2x80.8	0.206	0.0035	0.35	21033
4x185	30	2	22.5x90.0	0.164	0.0035	0.35	26732
4x240	30	2.2	25.6x102.4	0.125	0.0034	0.34	3467
