Down Tube Type Electrc Bike Lithium Battery with Internal BMS

Down Tube Type Electrc Bike Lithium Battery with Internal BMS
Price: US $ 215-225/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Capacity: 13ah
Battery Cell: Panasonic 3.7V 2600mAh
Dimension: 35*11.5*9cm
Rated Discharge Current: 20A
Max Discharge Current: 25A
Cycle Life: 800-1000 Times
Weight: 4kg
Type: Lithium-Polymer Battery
Usage: Electric Bicycle
Nominal Voltage: 36V
Discharge Rate: Medium Discharge Rate
Shape: Cylindrical Battery
Rechargeable: Chargeable

Product Description

                         Down Tube Type Electrc Bike Lithium Battery With Internal BMS

Safety Performance:

Item              Test Name                      Result

  1                 Over Charge            No fire, no explosion
  2                 Over Discharge        No fire, no explosion

3                 Short Circuit             No fire, no explosion

4                 Drop                         No fire, no explosion, no leakage

5                 Hot Oven                 No fire, no explosion

6                 Crush                       No fire, no explosion

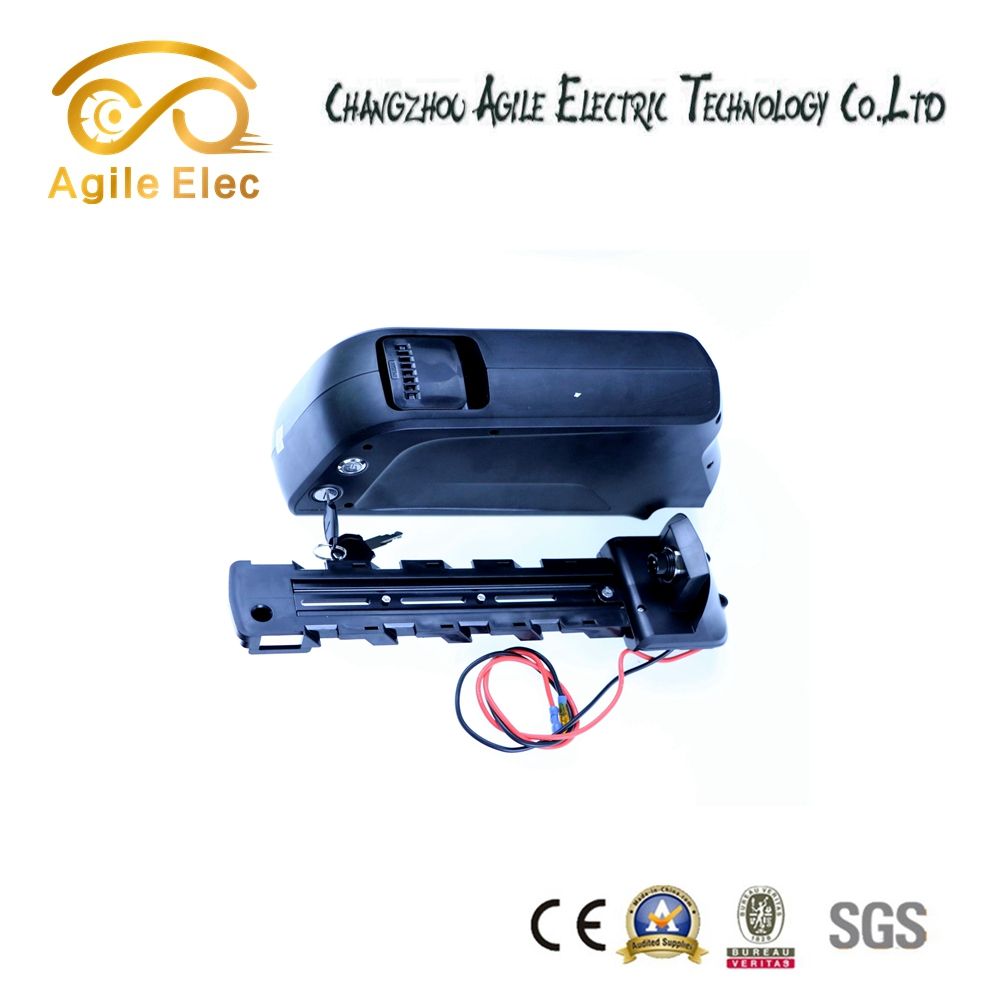

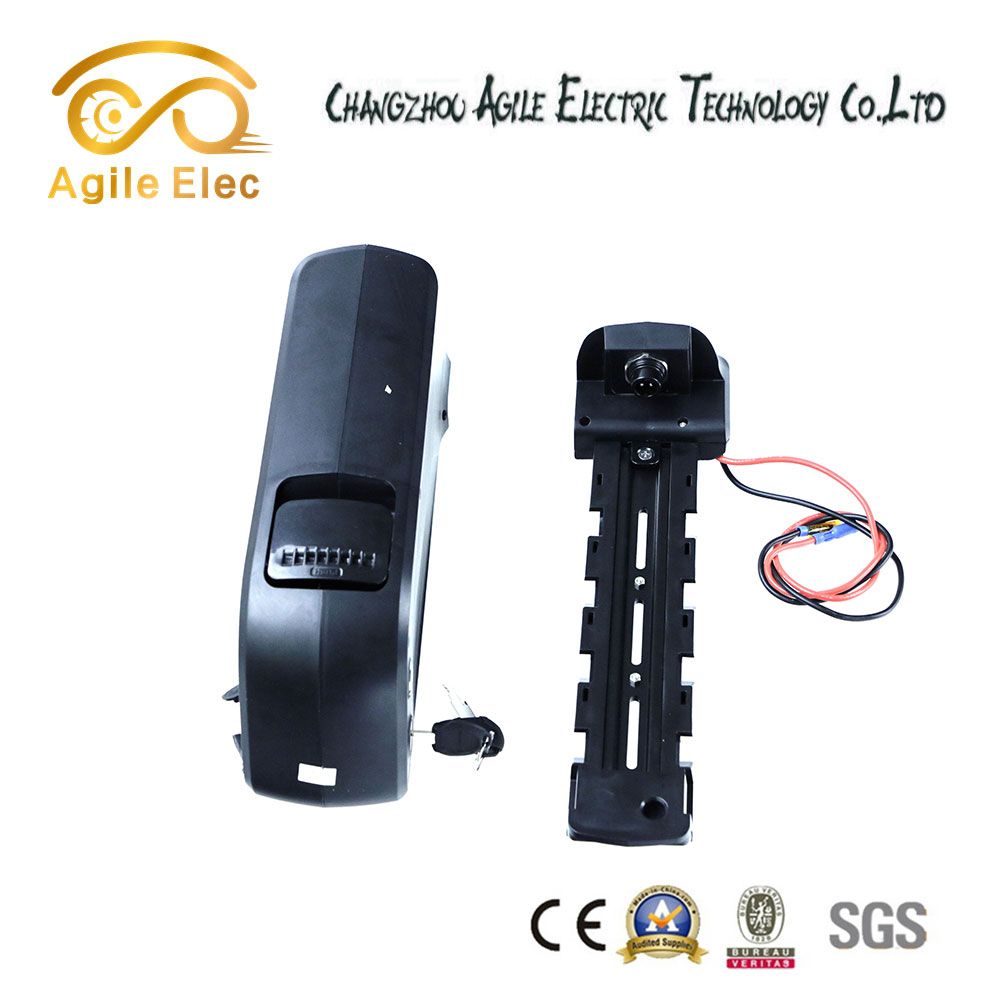

Pictures of This Battery:

Specifications:

Battery Power36V 13Ah
Battery CellPanasonic 3.7V 2600mAH
Protection  Built-in BMS
Max Charge Voltage42V
Discharge Cut-off  Voltage 28V
Continuous Discharge Current20A
Standard Charge Current 2A
Cycle Life800-1000 Times
Storage Temp.-20~40ºC
Operate Temp. Charge0~45ºC
Operate Temp. Discharge-20~60ºC

 Applications:

This battery can be used for Electric bicycle,golf car,electric wheelchair,power tools,scooter, Solar&Wind energy storage system,etc.


Shipping and Packages:

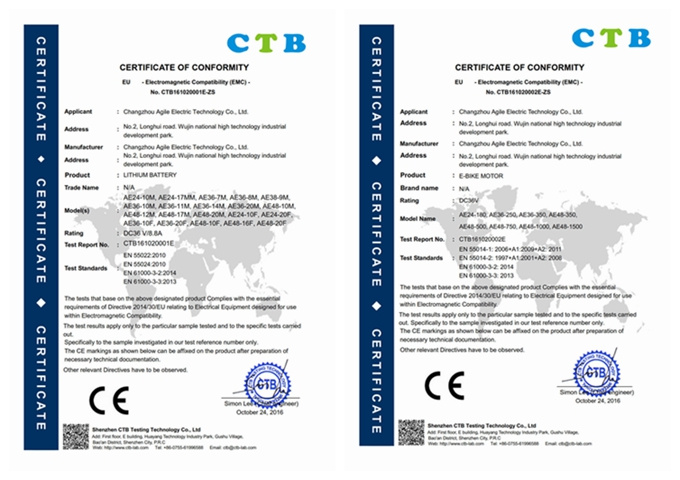

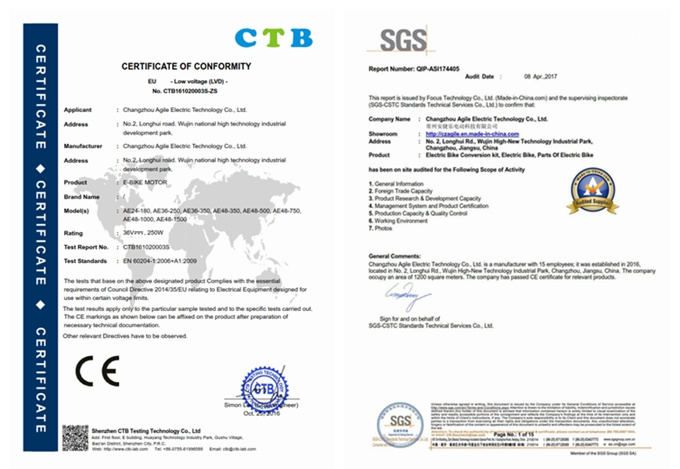

CE and SGS Certificates:






Agile Electric Technology Co., Ltd. Is located in Changzhou city, Jiangsu, China. Which is about 200km from Shanghai city, and 120km from Nanjing city. Our factory is approximately 25 minutes from the train station by taxi. It is easy for potential customers to come and have a look at our facility and products.

We manufacture a variety of products such as electric bike conversion kits, mountain and city electric bikes, fat tire electric bikes and relative parts for electric bicycles. All of our products can comply with international quality standards and are greatly meeting in a variety of markets around the world. We export to Europe, Canada, the USA, Southeast Asia, Australia and many other countries. Our customers have given us high praise for our products and service. The business philosophy at our company is that the customers are first, employees are second and shareholders are last.

If you are interested in any of our products or discuss a customized order, please feel free to contact us and kindly get back your comments to us. We are sure any of your feedback will get our prompt attention & reply. We are looking forward to establishing successful business relationships with clients all over the world.
