| Prod Model: |
DXB-20A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Standard Battery |
| Output: |
DC12V |
| Output Current: |
15-20A |
| Rated Frequency: |
47-63Hz |
| Chraging Mode: |
Three-Ohase |
| Dimension: |
190*130*60mm |
| Weight: |
1.03kg |
| Package: |
8PCS/CTN |
| Ambient Temperature: |
-20-65 |
| Type: |
Lead-Acid Battery Charger |
| Charging Type: |
Electric Charger |
| Principle: |
Single-Shock Charger |
Product Description

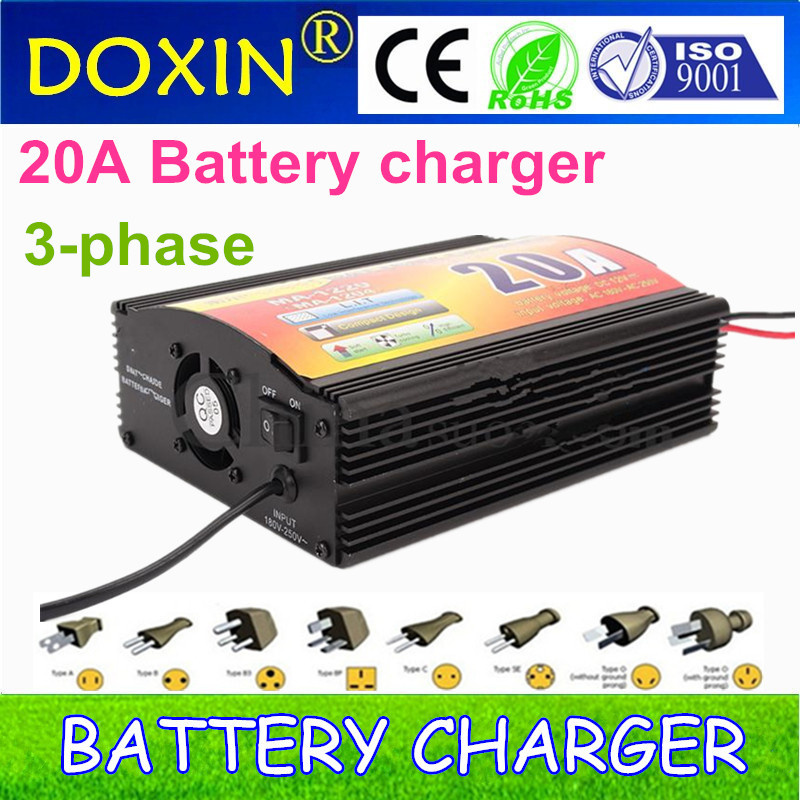

DOXIN Battery Charger 20A Four-step Charging Mode Fast Battery Charger 12v Battery Charger
DOXINseries lead- acid battery charger is professional designed according to the power of electric vehicles equipment. It uses the advanced soft switch technology and possess the following features: small in size, light in weight, convenient installation, high conversion efficiency, running fully load for a long time, stable current output, large capacity, high reliability, long life, ect. Also, it has the following functions: short circuit protection, overheat protection, reverse connection protection, low voltage protection, as well as auto stop when the battery is fully charged. The long delay digital counter can ensure the battery charge from the constant voltage stage to the float charge stage every time. And it can avoid the lost control of battery heat caused by the high temperature. Therefore, let the damage of the battery which is caused by the dehydration and the polar vulcanization(These two are the general problems of charger, MAD.) drop to the lowest.
Three-phase charging mode
Constant current mode:When the voltage of the battery is lower than the value set by the charger,the charger will work under the constant current mode and supply the constant current for the battery.
Constant voltage mode:Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensures the battery is fully charged and avoids over charging.
Floating charge mode:When the voltage of the battery is approaching the value of the constant voltage mode,and the current will cut down to the given current gradually,that means the battery power is full, then the pilot lamp will turn green and the fan will stop working.The charger will turn the mode into floating charge mode automatically.At this moment,the battery can be stopped charging or keep on floating charge for half an hour.
Technical Parameters
battery Charger 30A |
|
Model |
DXB-20A |
Input Voltage |
180V-250V |
Output Voltage |
12V |
Rated Frequency |
47-63HZ |
Charging mode |
Four-phase charging mode |
Charger Current |
20A |
Dimensions |
190*130*60mm |
N.W |
1.03kg |
Packed Qty |
8PCS |
Certification |
ISO,CTA,CE |
