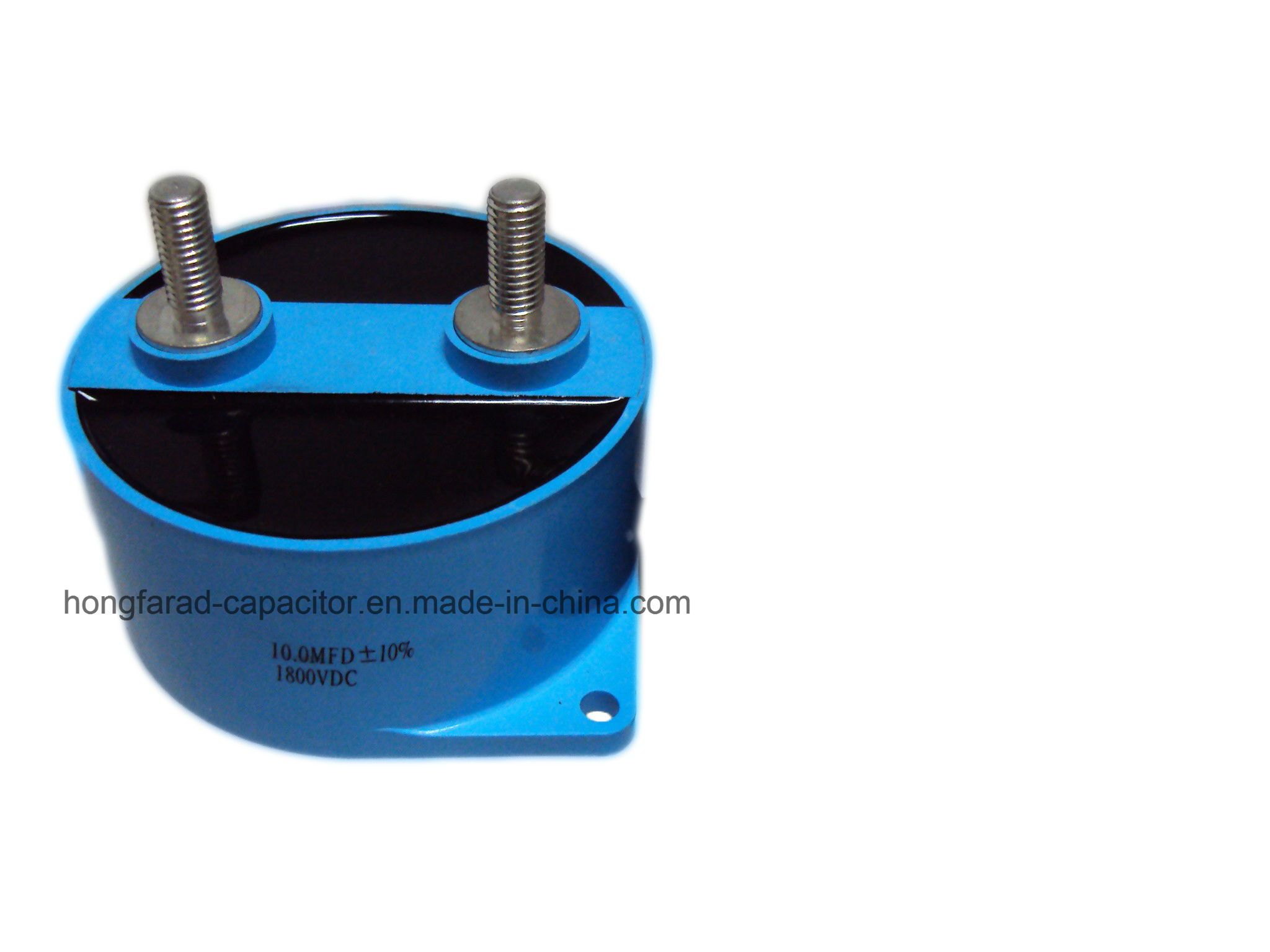

DPA DC Link Power Capacitor for Rectifier-Inverter System

Name: DPA DC Link Power Capacitor for Rectifier-Inverter System
Brand: all-electronics-online.com
SKU: 814011425
Availability: InStock
Rating: 4.7 (50 reviews)

Price:	US $ 20-60/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DPA
Reference Standard:	IEC 61071 GB/T 17702
Climatic Category:	85ºC
Application:	General Purpose
Package Type:	Through Hole
Type:	DC-Link Capacitor
Capacitance:	25UF~220UF
Manufacturing Material:	Capacitor
Tuning:	DC-Link Capacitor

Product Description

Product Description

Features and Applications

1. Used in DC-Link circuits(e.g.used in the circuits of converter or inverter), can replace electrolytic capacitor.
2. Low ESR,Low ESL,Can withstanding high r.m.s current

3. High temperature range,Low ESL
4. Self-healing property,Segmented metallized-film design
5. Epoxy plastic case,Epoxy resin sealing

Specifications

Reference Standard: IEC 61071, GB/T 17702

Climatic Category: 40/85/56

Rated Temperature: 85ºC

Rated Voltage: 600Vd.c~1300Vd.c

Capacitance Range: 25uf~220uf

Capacitance Tolerance: ±5%(J) , ±10%(K)

Voltage Proof : Between terminals, 1.5 Ur (60S)

Between terminals and case, 4 000 Va.c(10S)

Dissipation Factor: ≤0.2% (20ºC,100Hz)

Insulation Resistance: ≥5 000S (20ºC, 500V)

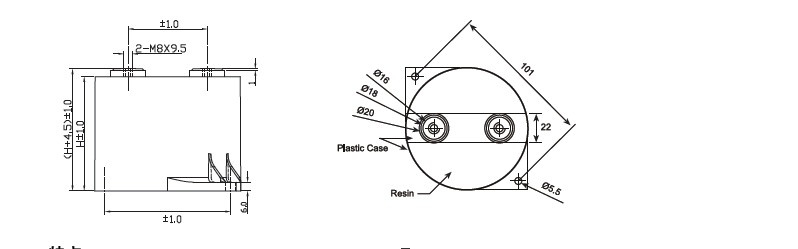

Outline Drawing

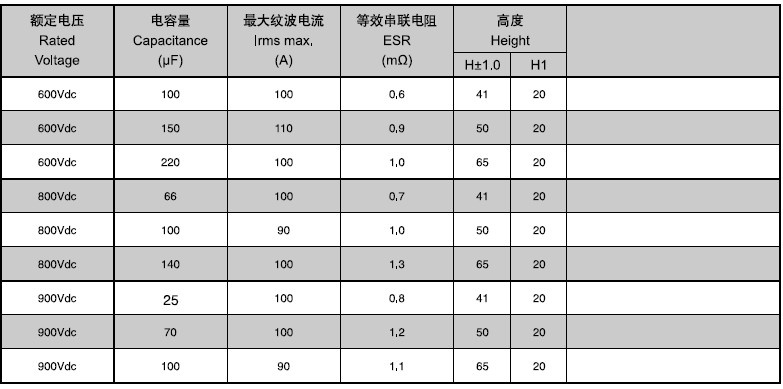

Dimensions(mm)

Why do you choose Hongfarad capacitor?

High quality commitment

Competitive prices

Professional factory with more than 10 years experience

Fast lead time and best after service

Strong research center & strong sales

Quick response from sales representatives

One stop solution for all kind of customers

Company information

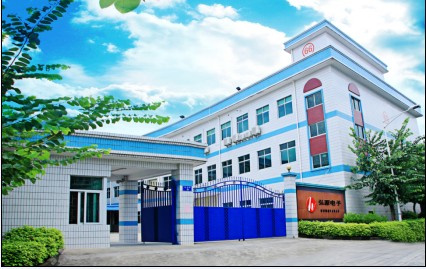

Welcome to visit our company!

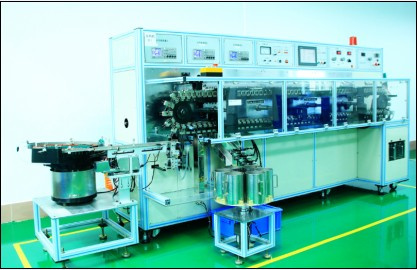

Our Laboratory

FAQs

Question 1 : Are you a manufacturer or a trading company ?

Answer : We are a manufactuer specialized in metalized film capacitor with over 10 years experience.

Question 2 : How can I get some samples ?

Answer : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.

Question 3 : Can your factory print my logo on the goods ?

Answer : Yes, we can print your own logo on the goods or the packing box.

Question 4 : What's your MOQ of this product?
Answer : MOQ is 3000 pcs, if less, please check with us firstly.

Question 5 : What's your delivery time?
Answer : It is about 2-3 weeks, if your goods are required urgently, please contact us firstly.

Our Capacitors can take 110C Heat

Hongfarad' capacitors can safely reach operating temperatures of up to 110C, which is 30C higher than the industry average. We ensure this durability by incorporating top-notch components from Germany, Japan and South Korea. These factors have attracted the repeat business of multinationals like Samsung, LG, GE, etc.

Offering Halogen-free and RoHS-compliant Products

All of our products are both halogen-free and compliant with the RoHS Directive, giving them added value in the eyes of environmentally conscious consumers. Our 30 QC staff members, each with over seven years of experience, ensure our defect rate remains close to zero percent. Our R&D team develops one to three new products every quarter to keep you up to speed with the latest industry innovations.

We Keep 2 Million Units In-stock

We deliver your finished orders in less than two weeks, ensuring you meet your time-to-market objectives. This speed is assured by the fact that we keep two million units in-stock at all times. It also results in sample delivery lead times as short as 24 hours. Contact us today.
