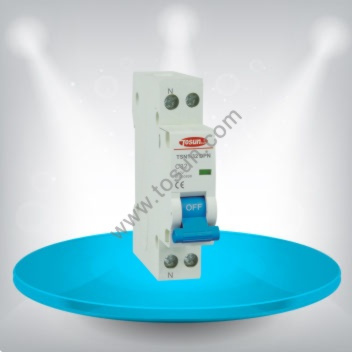

Dpn Miniature Circuit Breaker

Name: Dpn Miniature Circuit Breaker
Brand: all-electronics-online.com
SKU: 822391165
Availability: InStock
Rating: 4.5 (135 reviews)

Price:	US $ 3-4/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSN1-32L
Rated Current:	6, 10, 20, 25, 32A
Breaking Capacity (a):	4500A
Rated Voltage:	240V
Rated Frequency:	50/60 Hz
Endurance:	≥4000V
Protection Degree:	IP20
Electrical Life:	≥6000 Operations
Mechanical Life:	(O-C) ≥20000 Operations
Circumstance Temperature:	-5~+40 ºC
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Structure:	MCB
Certification:	TUV
Poles Number:	1p+N

Product Description

Application:
TSN1-32L RCBO is used in the single phase circuit of AC 50/60Hz, rated voltage240V, used as electron shock protection. It can protect circuit form overload and short circuit. This product has advantages of small volume, high breaking capacity, live and zero wire are cut off at the same time. It also protect person from electric shock when the live wire connected opposite. The products comply with the standards of IEC61009.

Specification:

Number of Poles	1P+N
Rated Current	6,10,16,20,25,32A
Breaking Capacity	4500A
Rated Voltage	AC240V, 50/60Hz
Endurance	≥4000V
Circumstance Temperature	-5~40 ºC
Electrical Life	≥6000 operations
Mechanical Life	≥20000 operations
Protection Degree	IP20

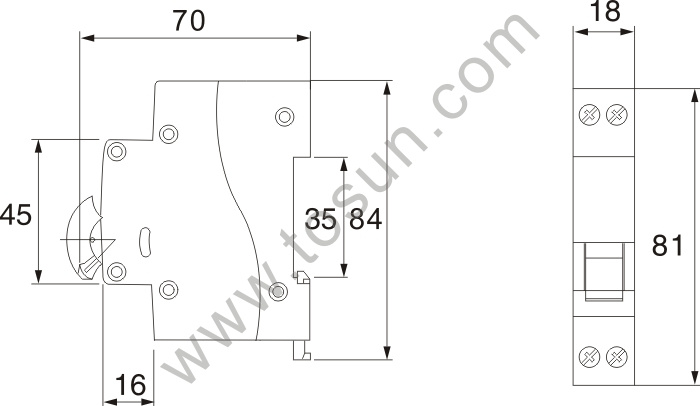

Dimensions (mm)

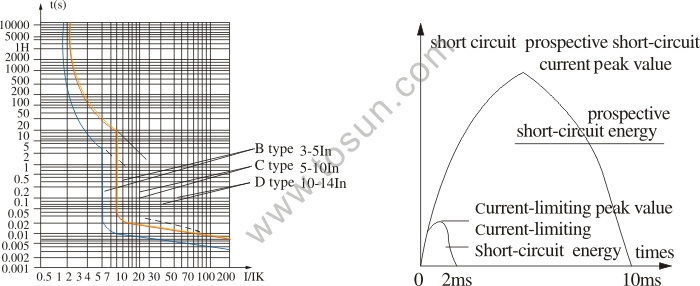

Characteristic Curve

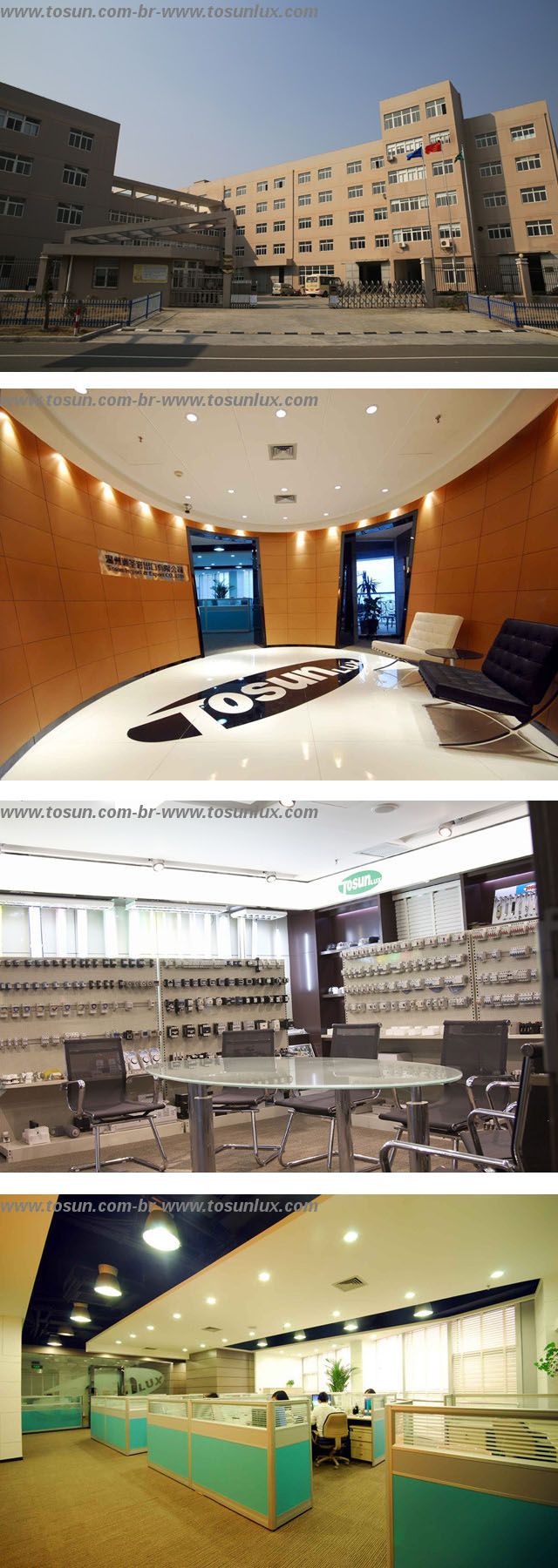

About Tosun Electric
