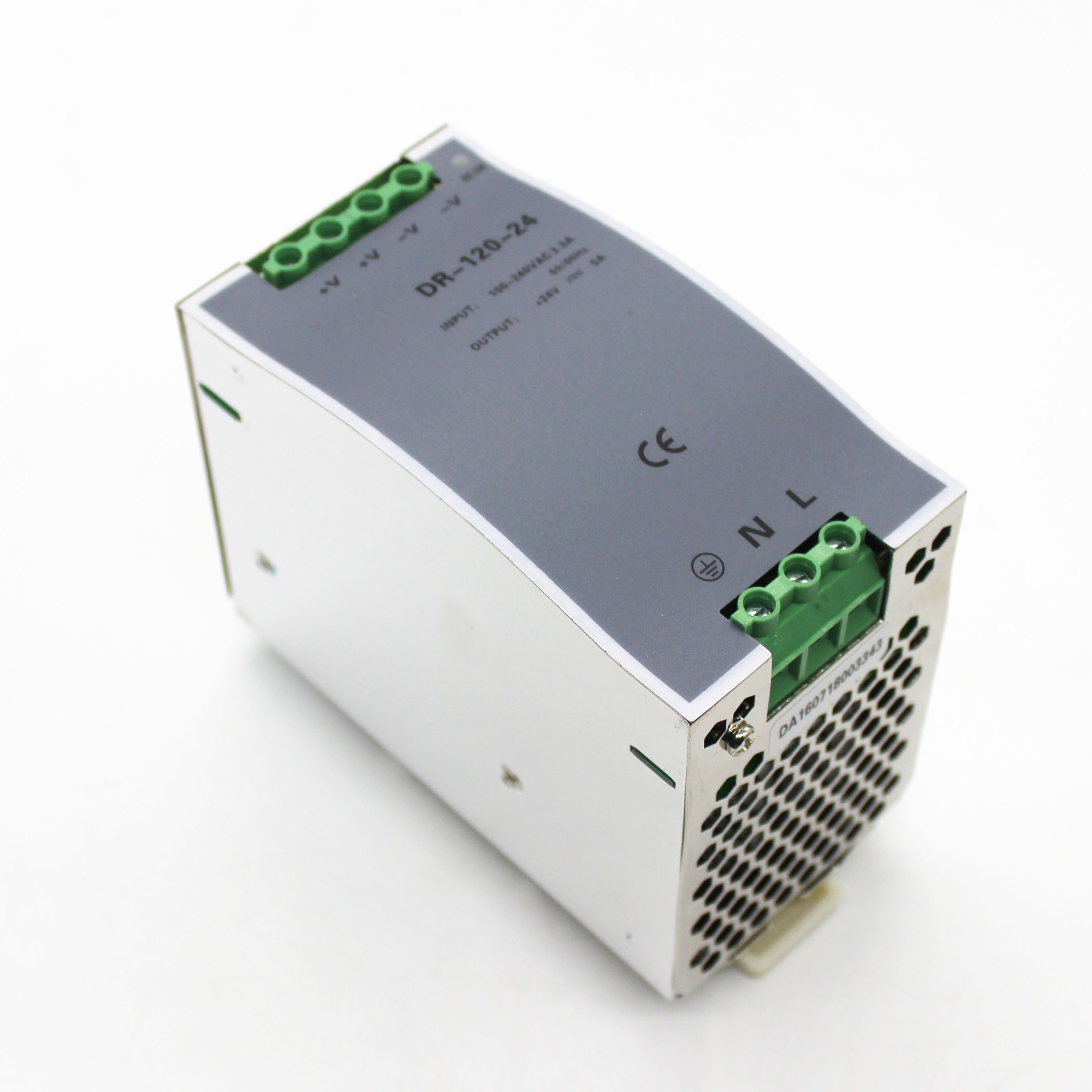

Dr-120-24 DIN Rail 120W 24V Switching Power Supply
| Price: |
US $ 5-10/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DR-120-24 |
| Input Frequency: |
47~63Hz |
| Rated Current: |
4.5A |
| Rated Power: |
54W |
| Voltage Adj.Range: |
10.8 ~ 13.2V |
| Voltage Range: |
88 ~ 264VAC 124 ~ 370VDC |
| AC Current: |
1.2A/115VAC 0.8A/230VAC |
| Output Voltage: |
24V |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
101 - 200W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CSA |
| Input Voltage: |
85 ~ 132VAC / 170 ~ 264VAC by Switcht240 ~ 370VDC( |
| Brand: |
Yumo |
Product Description
DR-120-24 DIN Rail 120W 24V Switching Power Supply
| DR-120 Din rail type switch power supply |
Features:
For AC power supply input global
Protection characteristics: short circuit/overload/pressure
Air cooling
Can be installed DIN standards guide TS-35/7.5 or 15
Has the boot display (light emitting diode (led)
100% full load and machine test
Working frequency 47-63KHz
One year warranty
Size: 65.5 * 125.2 * 100 mm (W * H * D) |
|
|
| model | DR-120-12 | DR-120-24 | DR-120-48 |
| output | Dc output voltage | 12V | 24V | 48V |
| Output voltage tolerance | ±2% | ±1% | ±1% |
| Rated output current | 10A | 5A | 2.5A |
| Output current range | 0-10A | 0-5A | 0-2.5A |
| Output power | 120W | 120W | 120W |
| Ripple and the noise | 80mVp-p | 80mVp-p | 100mVp-p |
| Dc voltage adjustable scope | 12-14V | 24-28V | 48-53V |
| Start, rise time | 500 ms, 70 ms / 230 VAC carrying 500 ms, 70 ms / 115 VAC carrying |
| Keep time | 36 ms / 230 VAC32ms / 115 VAC carrying |
| input | Input voltage range | 88~132 VAC/176~264VAC47~63 Hz;The switch choice 248~370VDC |
| Exchange input current | 2.6 A/115 V 1.6A/ 230 V |
| efficiency | 80% | 84% | 85% |
| Impulse current | Cold start current 20A/115V 40A/230V |
| Leakage current | <3.5mA/240VAC |
| Protection characteristics | The switch choice | 105%~150% |
| Protection way: constant current limiting automatic recovery |
| Overvoltage protection | 120%~135% |
| Protection way: cut output, restart |
| High temperature protection | 85ºC±5ºC(TSW1) | 90ºC±5ºC(TSW1) | 90ºC±5ºC(TSW1) |
| Protection way: cut output, temperature down automatically restored |
| environment | Working temperature, humidity | -10ºC~+60ºC;20%~90 %RH |
| Keep temperature, humidity | -20ºC~+85ºC;10%~95 %RH |
| Vibrate resistance | 10~500Hz,2G 10min./1 cycle time, 60 minutes, the axis |
| security | Compression sex | 3: KVAC between input and output and input and output KVAC: 1.5 to 0.5: KVAC |
| Insulation resistance | Between the input and output, the input and output, and ground: 100 M / 500 VDC Ohms |
| standard | Safety standards | UL508,UL60950-1,TUV EN60950-1 |
| EMC standard | EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2(EN50082-2) |
| other | weight | 0.79Kg |
| packaging | 20pcs/16.5Kg/1.1CUFT |
| note | 1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ºC conditions measuring income value.
2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
4. The power to consider as a device installed in final equipment, this equipment must be to make sure it's EMC index. |
