| Prod Model: |
DR-240-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Voltage: |
24V |
| Output Current: |
10A |
| Type: |
DIN Rail |
| Frequency: |
47-63Hz |
| Efficiency: |
84% |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
201 - 300W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
CCC |
| Input Voltage: |
85-264VAC |
| Brand: |
Yumo |
| Modulation System: |
Switching Power Supply |
Product Description

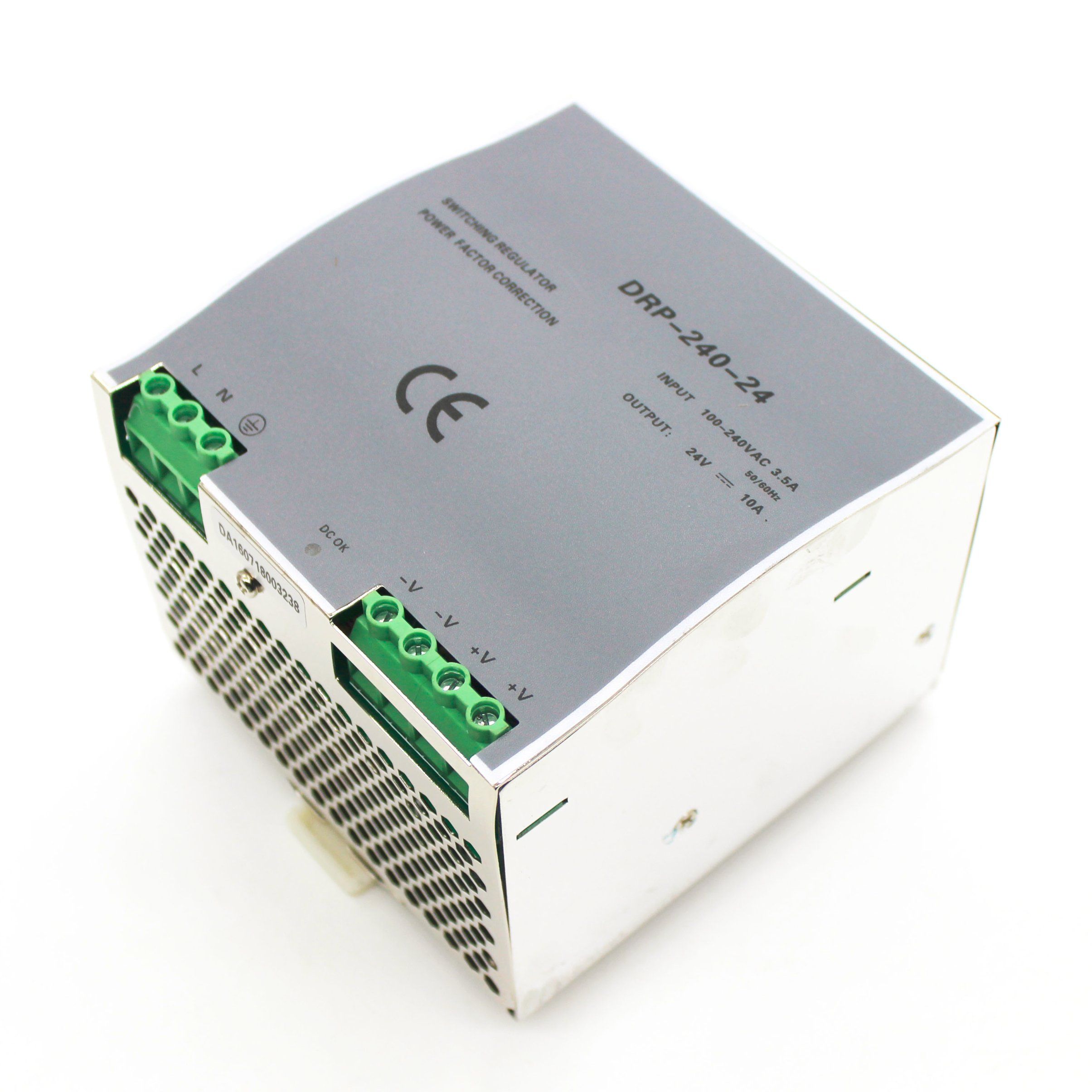

DR-240-24 DIN Rail Series 240W 24V output Switching Power Supply
Application of YUMO switching power supply
1.Power tools series:Electric saw,Drilling machine,Ginder,Sand blast Machine,Puching Machine,Weeding Machine,Air Compressor etc.
2.Office series:Computer,Printer,LCD Monitor,Scanning Machine etc.
3.Household Appliance series:Dust Collector,Fan Lamp or LED,Sewing Machine etc.
4.Kitchen Appliance series:Microwave Oven,Fridge,Freezr,Coffemarker etc.
5.Industrial Equipment series:Shipping,Vehicle,Metalhalide lamp,Solor system,Wind power generation etc.
6.Electric filed series:TV,VCRS,Radio ect.
MODEL | DR-240-24 |
| OUTPUT |
DCVOLTAGE |
24V |
RATEDCURRENT |
10A |
CURRENTRANGE |
0~10A |
RATEDPOWER |
240W |
RIPPLE & NOISE (max.) Note.2 |
80MVP-P |
VOLTAGEADJ.RANGE |
24~28V |
VOLTAGE TOLERANCE Note.3 |
±1.0% |
LINEREGULATION |
±0.5% |
LOADREGULATION |
±1.0% |
SETUP.RISEHOLD.TIME |
800ms,40ms/230VAC 800ms, 40ms/115VAC at full load |
HOLD UP TIME (Typ.) |
24ms/230VAC 24ms/115VAC at full load |
| INPUT |
VOLTAGERANGE Note.6 |
85 ~ 264VAC 120 ~ 370VDC |
FREQUENCYRANGE |
47~63HZ |
POWER FACTOR (Typ.) |
0.96/230VAC 0.99/115VAC at full load |
EFFICIENCY (Typ.) |
84% |
AC CURRENT (Typ.) |
2.8A/115VAC 1.4A/230VAC |
INRUSH CURRENT (Typ.) |
COLD START 27A/115VAC 45A/230VAC |
LEAKAGE CURRENT |
<3.5mA / 240VAC |
| PROTECTION |
OVERLOAD |
105~150%rated output power |
Protection type : Constant current limiting, recovers automatically after fault condition is removed |
OVER VOLTAGE |
30~36V |
Protection type : Shut down o/p voltage, re-power on to recover |
OVER TEMPERATURE |
100±5 (TSW1) detect on heat sink of power transistor |
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down |
| ENVIRONMENT |
WORKING TEMP |
-10~+70 (refer to output load derating curve) |
WORKINGHUMIDITY |
20~90% RH non-condensing |
STORAGE TEMP HUMIDITY |
-20~+85, 10~95%RH |
TEMPCOEFFICIENT |
±0.03%(0~50) |
VIBRATION |
Component:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
SAFETY&EMC
Note 4) |
SAFETY STANDARDS |
UL508, UL60950-1, TUV EN60950-1 approved |
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
ISOLATIONRESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
EMI CONDUCTICN&
RADIATION |
Compliance to EN55011, EN55022(CISPR22)classB |
HARMONICCURRENT |
Compliance to EN61000-3-2,-3 |
EMS IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, ENV50204, EN55024, EN61000-6-2 (EN50082-2), heavy industry level, criteria A |
| QTHERS |
MTBF |
105.5Khrs min MIL-HDBK-217F(25) |
DIMENSION |
125.5*125.2*100mm(L*W*H) |
PACKING |
1.2Kg; 12pcs / 15.5Kg / 1.29CUFT |
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives.
5. Derating may be needed under low input voltages. Please check the derating curve for more details |
