Wuxi Huishan Automatic Controller Co., Ltd. >> Draught Regulator Thermostat for Solid Fuel Boiler Br-01

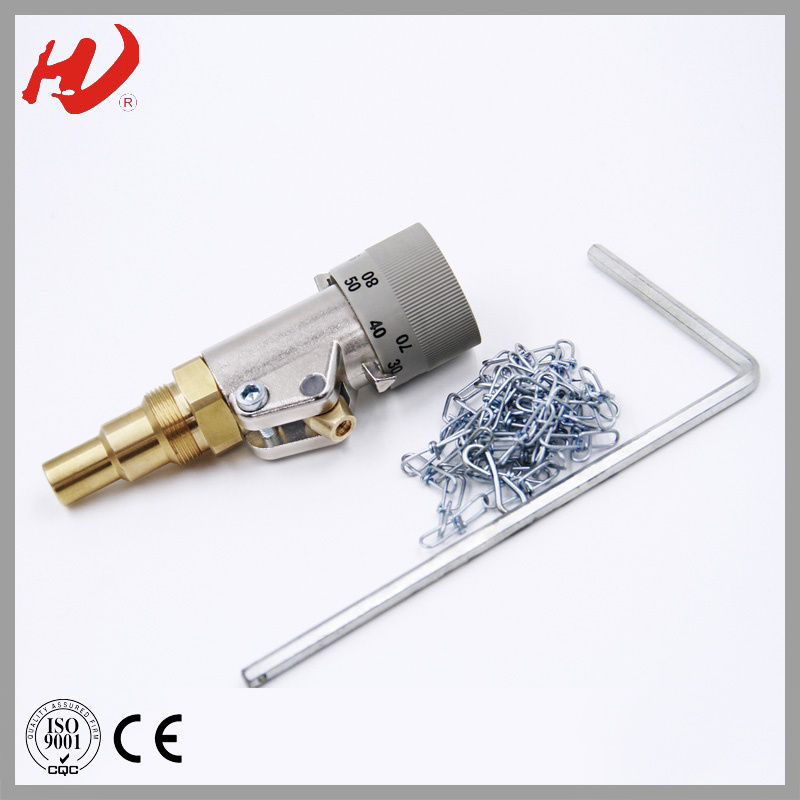

Draught Regulator Thermostat for Solid Fuel Boiler Br-01

Draught Regulator Thermostat for Solid Fuel Boiler Br-01
Price: US $ 7.5-8.82/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: BR-01
Application: for Solid Fuel and Muti-Fuel Boiler
Construction: Compact Construction
Connection: G 3/4" M
Element: Imported Wax Sensor

Product Description

Product Description

The thermal saftty discharge is installed in systems with boilers running on non atomized solid fuel as protection against ove temprerature.

Features:

Scale for horizontal and vertical installation

Supplied with 120 mm lever rod and chain

Compact construction

Technical Details

Setting range30`90C
Permissibe sensor tempraturemax. 115C
Max. ambient temperaturemax.70C on adjuster knob
Connection sizeG3/4"
Chain length1200 mm
Chain load100`600g
Immersion tube length53 mm




Company Information








Contact Us




Wuxi Huishan Automatic Controller Co. Ltd., was founded in 1988. We are located in Wuxi city, which is 40 mins Far away From Shanghai by train. Financial and commercial center of China. After 20 years development, we have set up a new 8400m2 standard moredn workshop, equipped with advanced machinery and testing laboratory which enable us to be a professional manufacturer for temperature control porducts. 35% of our employees are mechanic and engineer and we are ISO9001: 2000 approved.

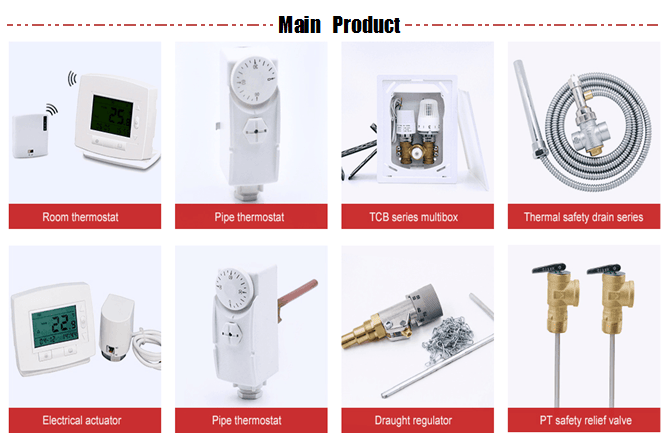

After 20 years continuous of developing, we have been producing high quality of room thermostats, thermostatic valves, thermostatic heads, liquid sensor for TRV, temperature and pressure safety valve, industrial thermostats, pressure switches, flow switches etc. We produce strictly according to the standard with a result that many products are CQC, EN215, CE, VDE, RoHS approved. With over 10 years export experience, we expanded our market to Europe, Middle East, North America, South America, and some of our customers are famous for international companies. We also offer OEM and ODM services to our customers, based on our strong technical force. For the same reason our customers are satisfied with our quality and service. Our production capacity is over than 3 million piecess. Looking forward to developing the market and technology togther with our overseas partners, and build up a mutual prosperous future.
