Driven Motors for Construction Site Lift

Prod Model:	sc200/200
Color:	Green
Private Label:	Available
Power:	11kw, 15kw, 18kw
Mount Type:	Imb5
Brake Protection Grade:	IP23
Lifting Speed:	96m/Min
Erection Height:	450m
Used For:	Buildings
Brand Name:	Jinnuo
Part Of:	Sc200/200td
Application:	Industrial
Operating Speed:	High Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brushless
Brand:	Jinnuo

Product Description

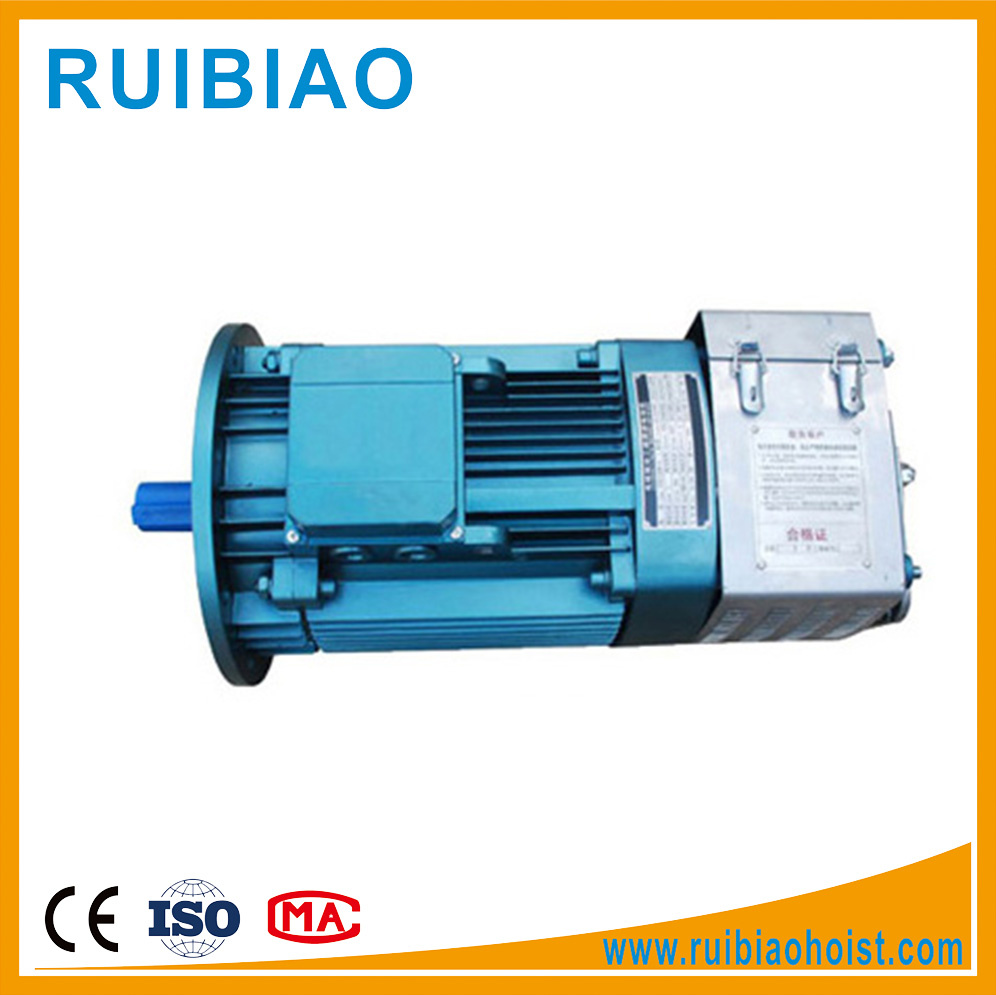

Driven Motors for Construction Site Lift
ShangHai RuiBiao Construction Machinery Co., Ltd. is a professional manufacturer. Our main products include safety devices, gear racks, slewing ring bearings and gearboxes for construction, engineering, lifters, lifting elevators, hoists,machinery transmission. Our products are mainly exported to Brazil, Vietnam,Turkey, Russia and Malaysia. We can meet our customers' needs well. We can produce products according to customers' special requirements.
The above product is motor for construction elevator, is a very importsnt part of SC200/200TD building hoist product, usual work with gearbox.current induction improving the function of starting and braking an the performance of friction secondary gap's auto-tracking and adjusting.
Hoist Driving Device payload capacity is as much as 10, 000kg. Lifting speed can reach up to 96m/min, and the erection height reaches up to 450m. Our products have been widely used for buildings, electric power plants, mining wells, oil fields and chemical industries.

We sincerely hope to cooperate with you in this field.
This is one of energy saving sewing machine motor -- construction hoist motor
Hoist Spare Parts
stationary hoist crane
rack and pinion elevator


Driven Motors for Construction Site Lift
A......Packaging & Shipping of Tower Crane Hoist Motor :
1.Packing Method
(1) High quality wooden case
(2)Packing can be according to customer's requirement
B......Shipping Delivery of Tower Crane Hoist Motor :
(1)By sea to your nearest port
(2)By air to your nearest airport
(3)By express (DHL,UPS,FEDEX,TNT,EMS)to your door
C..... Tower Crane Hoist Motor  is one part of construction hoist:
1. Production process: Strict material selection- blanking- inspection - welding- inspection- Blasting - inspection -Baking finished or galvanized- inspection - Finished Product
2. The product can be customized according to customers'requirements (drawing, specifications and so on).
a: Cage Details.
1.The cage is boarded up by all punched aluminum sheet ,Sidewall of Wire Mesh for cage is also avaliable. The size can be arranged to your requirement
2. Main structure of cage is made of high-quality steel after bending.(The bended steel is firm, good verticality, stability. Moreover it ensure stable of the whole structure)
b: Completed safety measures
1. Equiping with Anti-falling govenor
2. Electrical an Mechanical interlock: Door safety switches, Slack rope switch
3. Safety hook
4. Upper and bottom limit swithes, trap door limit switch
5. Overload protector
6. Bottom Buffer
7. Level Calling system and auto leveling device to be choose.
D......Features of the Y series 3 phase & 2 phase electric motor :
Compact design and comfortable operating experience.
Single or double cage configurations.
Design without counterweight.
Use perforated aluminum plate as a decorative plate of the cage.
Galvanize Mast section offered.
Wide range of optional equipments and functions.
Competitive factory price
Move by good quality rack and pinion
Stable platform lift
E.......Our services of   Tower Crane Hoist Motor :
When your order shipping out .we will provide you a tracking no in express or B/L. then you can know clearly the status of the goods
Electric gearbox motor 12v dc motor FOR construction elevator/building hoist

Specifications-Construction hoist motor,construction elevator motor power


Type	Cage	Capacity(kg)	Speed(m/min)	Motor(kw)
SC200	single	2000	36	3*11
SC200/200TD	double	2000*2	36	2*3*11
SC100	single	1000	36	2*11
SC100/100TD	double	1000*2	36	2*2*11
SC150	single	1500	36	2*11
SC150/150TD	double	1500*2	36	2*2*11
SC270	single	2700	36	3*15
SC270/270TD	double	2700*2	36	2*3*15
SC320	single	3200	36	3*18.5
SC320/320TD	double	3200*2	36	2*3*18.5
VFD device is optional,the speed:0-36m/min,0-63m/min,0-96m/min
Can be customized according to customers' demand

FAQ:

Q1:Whether you can provide customized products?
A1:Yes.We are hi-tech enterprise affiliated to China Academy of Building Research.We have a group of engineers, who have title of professor , senior engineer and engineer.We can give you special design as per the drawings of your building, helping you solve different problems faced in your projects.

Q2:Whether customized products takes a very long time to design and manufacture?
A2:Not exactly.Normally for us, some amendment in design to adapt your requirement will take one week.So even for your special project, it will be about 30-40 days delivery time.

Q3:What is the brand of your key components?
A3:Motor:Shanghai RUIBIAO  and ABB or Schneider can also be choosed.
Other electrical components:Schneider or Simens

Q4:What kind of services you can provide?
A4:We are dealing with construction machinery for about 10 year.High quality is our advantage, and high technology is our core competency.We ensure that  all  the machine have been completely tested in our factory before delivery.We will give you one year warranty for complete machine.For problems caused by our production defect, we will provide you free services by sending skilled engineer there.

Our services
1.Customized service.
We can do all special design according to yourrequirement
2.Welcome visit our factory, learn about our factory and products.
3.24 hours on line or phone , technical support
After sale service:
1.The seller will send one of her professional technicians to the site of buyer toguide the erecting work.
2.12(twelve)months (except for wire rope and AC contactor) after the equipment be well erected and we will offer spare parts whole year long.
3.Life long time freely provide technical support.
