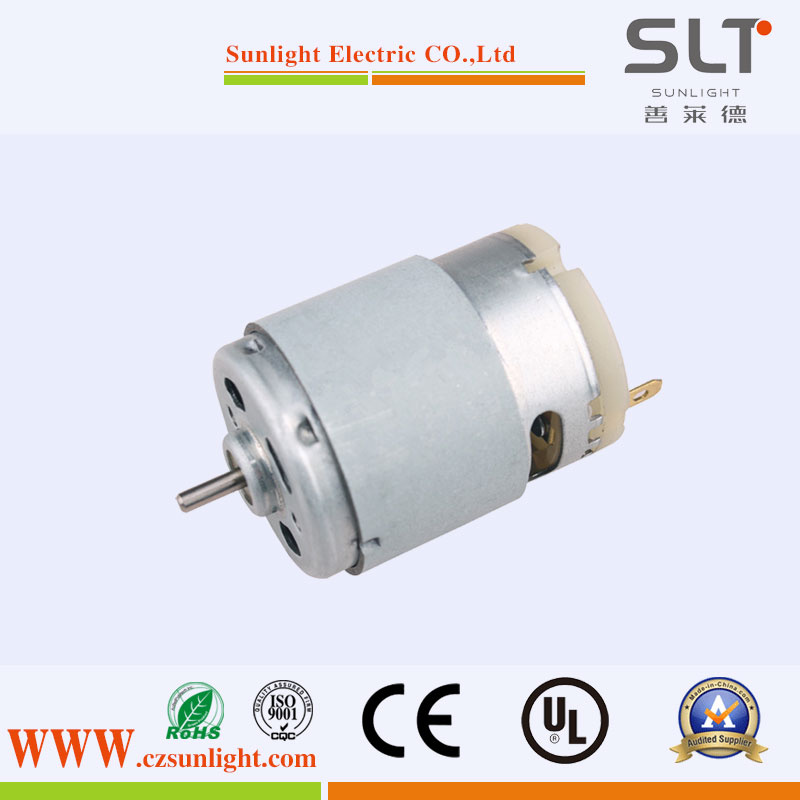

Driving Electric Micro Brush DC Motor with Adjusted Speed

Name: Driving Electric Micro Brush DC Motor with Adjusted Speed
Brand: all-electronics-online.com
SKU: 761833635
Availability: InStock
Rating: 4.7 (125 reviews)

Price:	US $ 1-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SLT-380PAD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operating Range (V):	9-15
Nominal (V):	12
No Load Speed:	8114r/Min
No Load Current:	0.103A
At Max Efficiency Speed:	6768 R/Min
At Max Efficiency Current:	0.518 a
At Max Efficiency Output:	3.99W
Stall Current:	2.606A
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Brand:	Slt

Product Description

1,Normal Voltage:6V-36V
2,No load speed:3000-10000 r/min
3,At Max Efficiency speed:3000-1000 r/min
4,At Max Efficiency torque:3-60 mN.m
5,Product range: diameter 13mm-130mm

Advantages of Driving Electric Micro Brush DC Motor with Adjusted Speed

A: Save cost, price is low
B: Better reliability.
C: Low energy consumption.
D: Speed is steady.
E: Easy to run and adjust the speed.
F:Small size, easy to carry.
G: Application range is super wide

Technical data of Driving Electric Micro Brush DC Motor with Adjusted Speed

Model			SLT-380PA-20150
Voltage	Operating Range (V)		9.0-15.0
Voltage	Nominal (V)		12.00
NO Load	Speed	r/min	8114
NO Load	Current	A	0.103
At Max Efficiency	Speed	r/min	6768
	Current	A	0.518
	Torque	mN.m	6.06
	Torque	g.cm	61.8
	Output	W	3.99
Stall	Torque	mN.m	36.53
	Torque	g.cm	372.7
	Current	A	2.606

Applications of Driving Electric Micro Brush DC Motor with Adjusted Speed

A:Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B.Home Appliance ( Electric cooker, Electric mop and other products.)
C.Medical equipment and beauty products.
D.Office products (such as printer, scanner......)
E. Other Fields.

Why choose us ?

A: Quality in sure. Technical departments and
B. Price is competitive.
C. Service is excellent.
D. Delivery on time.
E. Promise is A Promise.

Packaging & Shipping

1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required

Name card

Sunlight Motor
Contact.: Catherine Wang
Tel.: 86-519-83825998
Fax.: 86-519-83823899
Website: www.czsunlight.com or www.sunlightmotor.com

Changzhou Sunlight Motor is the subsidiary company of the Jiangsu Woersen Electronics Technology Co., Ltd. It also contains Wenwei tube, Rongda Electronics, Woersen motor.

There are almost two hundred people in this group, including twenty technical engineers, eight R&D engineers. Annual value of production is about 0.16 billion.

The main products are DC motor, brushless DC motor, linear actuator and DC fan.

At present, our products have been exported to the United States, Germany, Britain, Russia, Japan, South Korea and so on. And we have received the high praise from our customers.

Currently, our company has passed ISO9000 and TS16949 certifications. The factory also has been audited by the authority SGS.

We welcome all the global companies to visit our factory and negotiate with us!

Sunlight is a young and dynamic team. Our slogan is " Where there is power supply, there is Sunlight"

We can not only meet our clients` mass production order, but also be flexible to provide the small quantity order for our clients too.

Meanwhile, the professional OEM services could be provided by us according to the customers'requests. The main brushless DC motor's series are: 42BLDC, 57BLDC, 86BLDC 110BLDC motor and so on

The main brush DC motor's series are: 130DC, 365DC, 370DC, 477DC motor and so on;

The main linear actuator's series are: ST01, PT01, YT01 and so on;

The main fan's series are: 16inch, 12inch, and so on

So that, If you give us a chance, Sunlight Motor will not let you disappoint.
