Product Description

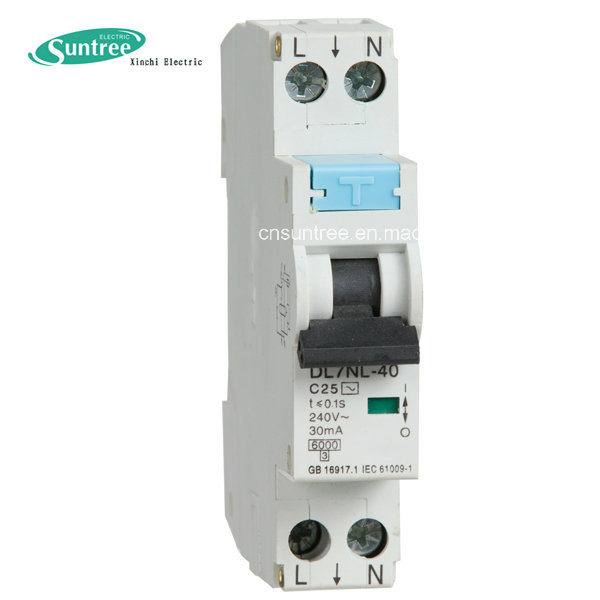

DRNL 32A 30mA 1p+N rcbo residual current circuit breaker 6KA with SAA
| Technical Data | DRNL |
| Standards | AS/NZS 61009 - 1 |
| Magnetic tripping characteristics | B,C |
| Residual tripping characteristics | A , AC |
| Rated current(A) | 6, 10, 16, 25, 32 |
| Rated residual current | 10mA, 30 mA, 100mA |
| Calibration temperature | 30°C |
| Rated voltage 1P | 240V |
| Frequency | 50/60 |
| Maximum service voltage | 264 |
| Tripping Duration: | Instaneous<0.1s |
| Power supply | Top or bottom |
| Selectivity class | 3 |
| Residual making and breaking capacity | 2000A |
| Short circuit capacity | 6000A/4500A |
| Isolation application (IEC 60947-2) | Yes |
| Insulation resistance (Mohm) | 1,000 |
| Insulation voltage (V) | 500 |
| Dielectric rigidity (V) | 2,500 |
| Vibration resistance | 1.5g |
| Endurance (operations) electrical | >6,000 |
| mechanical | >20,000 |
| Protection degree outside | IP20 |
| inside enclosure | IP40 |
| Self extinguishing degree (UL 94) | V2 |
| Tropicalisation (IEC 60068-2) | +55°C/95% RH |
| Operating temperature | -5/+55°C |
| Storage temperature | -25/+70°C |
| Terminal capacity (top & bottom) min / max | 1-16mm |
| Terminal torque (top / bottom) | 3 |
| Busbar systems | Yes |
| Accessories | No |
| Dimensions (mm) | 72(H)81(L)18(W) |
| Weight (g) | 105 |
Features & Advantages:
The slimest 6kA RCBO in this world.
the newest design compared with competitors.
Genuine 6kA fault level declared after hundreds of seriously passed test.
Suit both residential and commercial applications.
Top and bottom line and load compatible newest design for ease of installation.
Two pole safety feature allows switching of both Active and Neutral contacts.
Active contacts always connect earlier and break later;
Single module is ideal to save valuable switchboard space.
Normal Operation Conditions
Ambient Air temperature:Ambient air temperature range from -5°C ~+40°C ,not exceeding 35°C averagely in 24 hours.
Location:installation location can not exceed 2000 meters above sea level.
Air conditons:Relative humidity in the installation palce can not exceed 50% when the air reaches the highest temperature +40°C ,
the average minimum temperature when it is the wettest can not exceed 25°C Relative humidity not exceeding 90%.
Installation conditions:Magnetic field outsid the installation place can not exceed 5 times of the site of terrestrial magnetism in all
directions.Normally speaking,RCBO should be mounted vertically .If the operation handle puts through power source upward,there should
be no notable impact and vibration in the installation place.
LeakAge protection function of RCBO is tested and adjusted by the manufacture,users can not open the products at random during usage.
After using RCBO for a certain time(normally one month) , test button should be pressed noce in a state of making the circuit to check
whether the function of RCBO is normal and reliable(press test button once, the RCBO can break off noce) . If abnormal, it should be
unloaded and sent to the manufacturer to repair.
RCBO can not be wetted or soaked by rain,snow or water during the course or transportation storage and usage.
