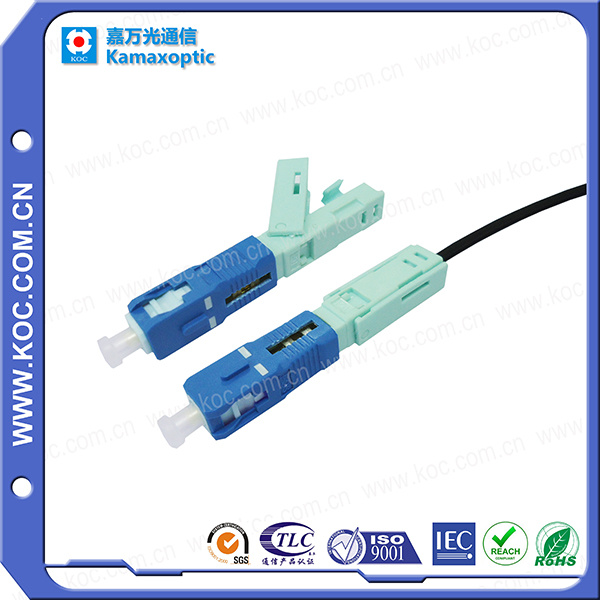

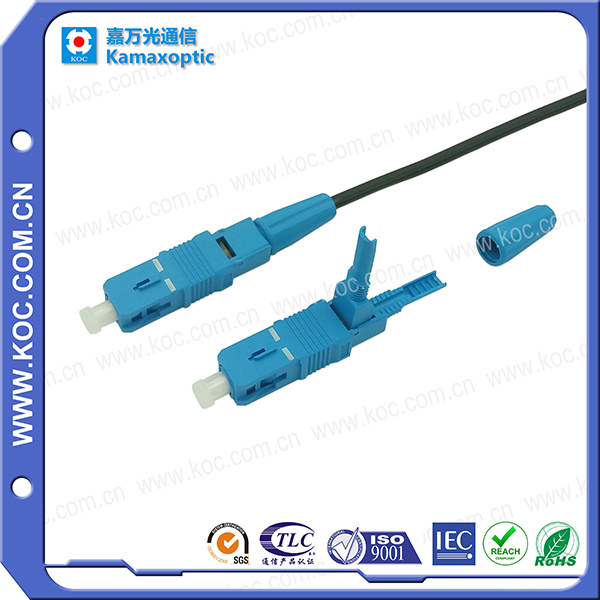

Name: Drop Cable Fast Install Fiber Optical Connector
Brand: all-electronics-online.com
SKU: 703707622
Availability: InStock
Rating: 4.4 (109 reviews)

Price:	US $ 0.6-0.75/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	sc
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Diameter Szie:	0.9mm, 3mm
Housing Color:	Green; Blue; Beige;Aqua'magenta; Black;
Housing Material:	Plastic
Packaging:	Zipper Bags
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	APC

Product Description

With 15 years history, KOC is a well-established brand popularly accepted in the world-wide market, especially in European and American countries. We are a professional manufacturer of most passive parts such as patch-cord, connector, adapter, attenuator,splitter, WDM serious. For more detail, please check on our website www.koc.com.cn.

In case of need, please do not hesitate in contacting us.

Advantages:
Ferrule hole U-Groove alignment ensure the fiber core alignment error <0.5um. This will reduce the connect loss. The U-groove has the advantage than V-groove when different fiber diameter are used. This will reduce core offset between customer and stuff fiber. The ceramic U-groove has excellent low thermal expansion and high rigid. The product can work in a wide temperature range and long life time. Flexible fiber connect, high pulling resistance.

	Single mode	Multimode
Insertion Loss	≤0.30dB	≤0.30dB
Return Loss	≥50 dB
Durability	≤0.2 dB typical change, 1000 matings
Operating Temperature	-40 to + 85°C	-40 to + 85°C
Tensile strength	>10kg
Ferrule Hole Sizes	125.0+1/-0μm, Concentricity: ≤1.0μm	125μm, Concentricity: ≤3μm
	125.3+1/-0μm, Concentricity: ≤1.0μm	127μm, Concentricity: ≤3μm
	125.5+1/-0μm, Concentricity: ≤1.0μm	128μm, Concentricity: ≤3μm
	126.0+1/-0μm, Concentricity: ≤1.0μm

The price range is for SC/PC 3.0mm singlemode fast install connector.

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.

About KOC

Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.

Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!

To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.

To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.

Please visit us website for more information: http://www.koc.com.cn
