Drop Cable Fiber Optic for Communication Round Cable

Name: Drop Cable Fiber Optic for Communication Round Cable
Brand: all-electronics-online.com
SKU: 823218785
Availability: InStock
Rating: 4.5 (74 reviews)

Price:	Negotiable/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Drop Cable Fiber Optic
Application:	Medicine
Type:	Multi-mode Fiber
Connection Structure:	FC
Certification:	ISO9001

Product Description

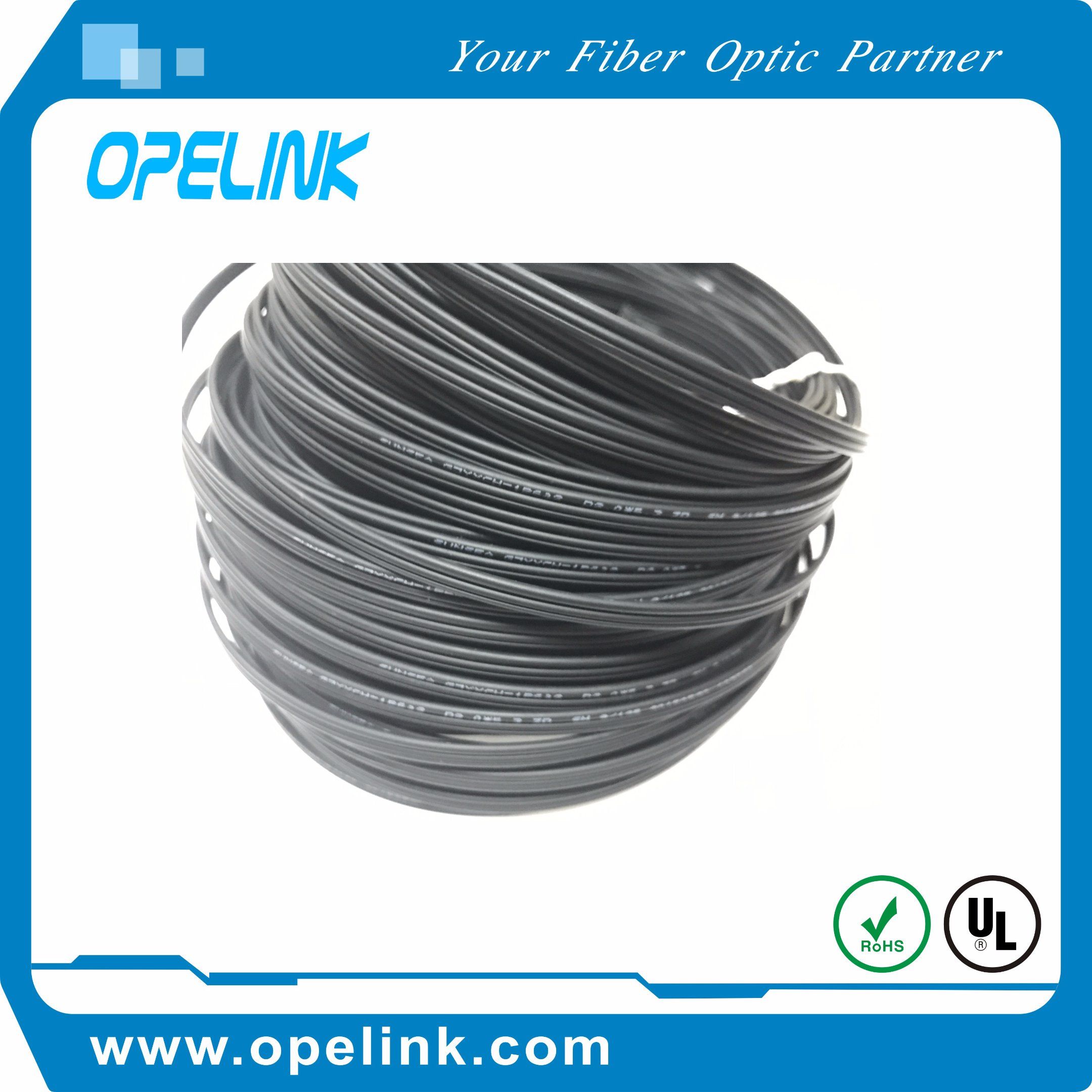

FTTH Drop Cable Fiber Cable

Fiber Parameters:

		Items				Specification
No.					Unit
						G.657A1
						G.657A1

1	Mode Field Diameter			1310nm	μm	9.0±0.4

				1550nm	μm	10.1±0.5
				1550nm	μm	10.1±0.5

2	Cladding Diameter				μm	124.8±0.7

3	Cladding Non-Circularity				%	≤0.7

4	Core-Cladding Concentricity Error				μm	≤0.5

5	Coating Diameter				μm	245±5

6	Coating Non-Circularity				%	≤6.0

7	Cladding-Coating Concentricity				μm	≤12.0
7	Error				μm	≤12.0
	Error

8	Cable Cutoff Wavelength				nm	λcc≤1260

9	Attenuation(max.)			1310nm	dB/km	≤0.35

				1550nm	dB/km	≤0.21
				1550nm	dB/km	≤0.21

10			1turn×10mm radius @1550nm		dB	≤0.75
	Macro-Bending Loss
			1turn×10mm radius @1625nm		dB	≤1.5
			1turn×10mm radius @1625nm		dB	≤1.5

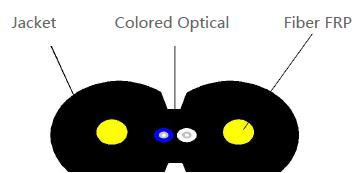

Cable Parameters:

Items		Specifications

Fiber Count		2

	Dimension	250±15μm
Colored Coating Fiber
Colored Coating Fiber	Color	Blue White

Jacket	Dimension	(2.0±0.1)mm×(3.0±0.1)mm

	Material	LSZH
	Material	LSZH

	Color	Black
	Color	Black

Strength Member		FRP

Mechanical and Environmental Characteristics:

Items	Unite	Specifications

Tension(Long Term)	N	100

Tension(Short Term)	N	200

Crush(Long Term)	N/10cm	1000

Crush(Short Term)	N/10cm	2200

Min. Bend Radius(Dynamic)	mm	30

Min. Bend Radius(Static)	mm	15

Operating Temperature	ºC	-20~+60

Storage Temperature	ºC	-20~+60

-----------------------------------------------------FAQ---------------------------------------------------

Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is
negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping
also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost
effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.

OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.

In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.

Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
