Drop out Fuse Cutout /Fuse Link/Break Switch Outdoor RW12-12
| Price: |
US $ 40-50/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Rated Voltage: |
12 Kv~24kv |
| Altitude: |
up to 3,000m Above Sea Level |
| Environment: |
Outdoor |
| Special Conditions: |
Depends on The Customer |
| Test Equipment: |
IEC Standard |
| Typical Products: |
Protection Fuse |
| Frequency: |
50 Hz |
| Breaking Capacity: |
High |
| Type: |
Current Fuse |
| Usaga: |
High Voltage |
Product Description

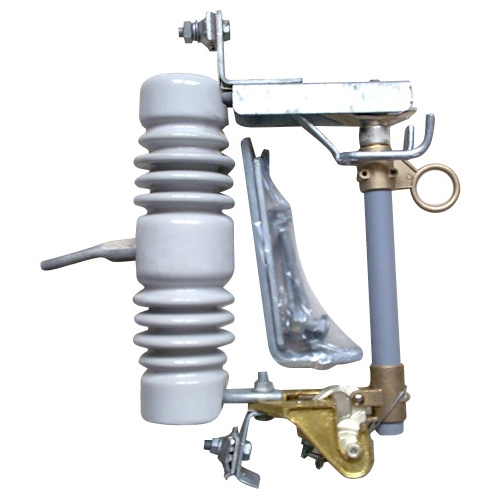

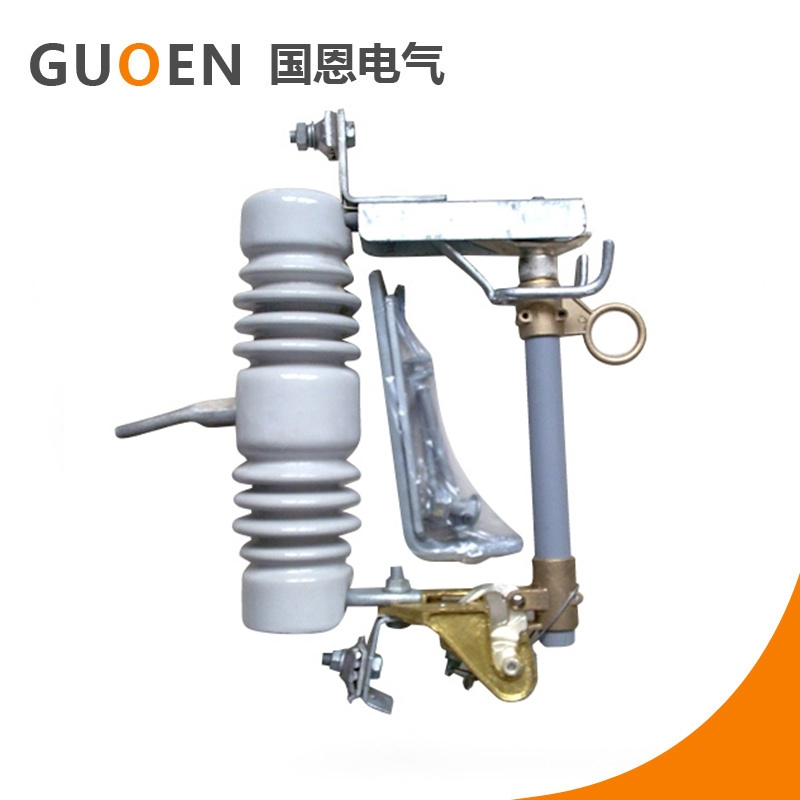

Product Picture:

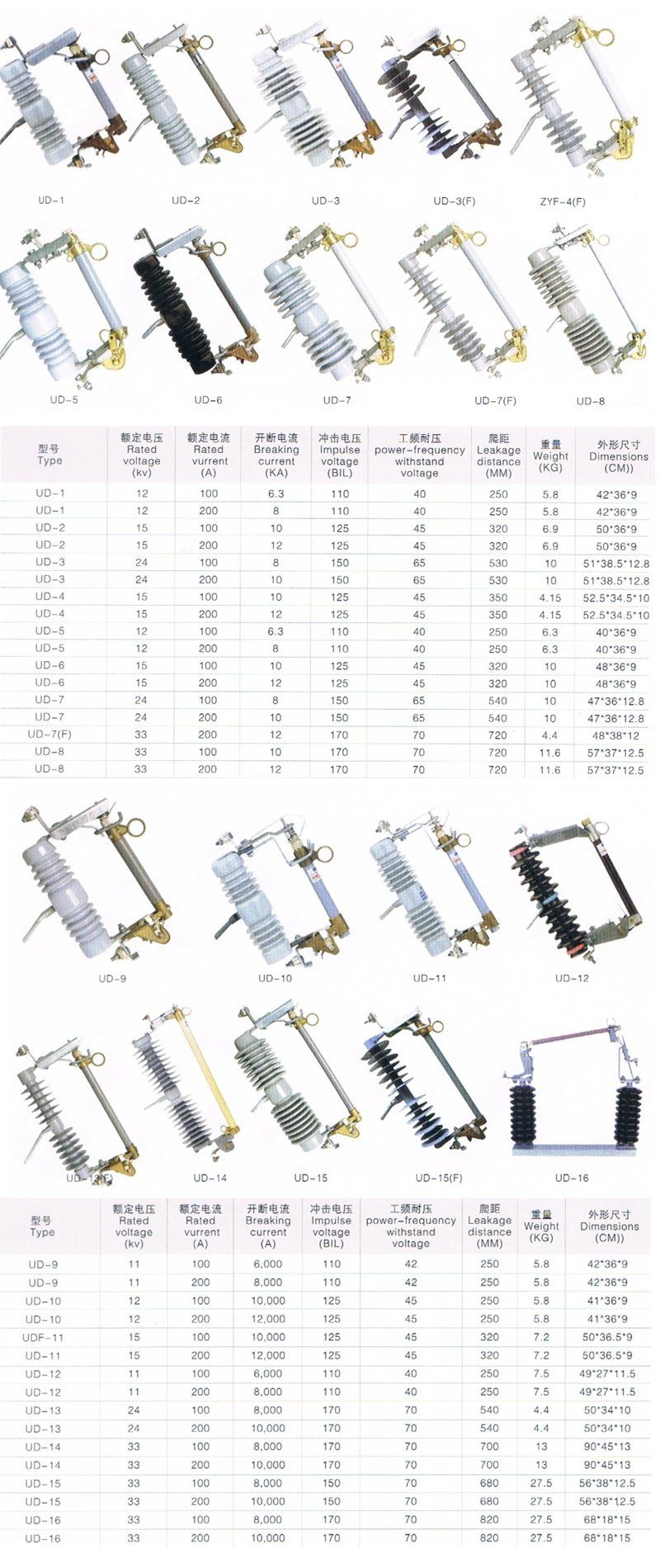

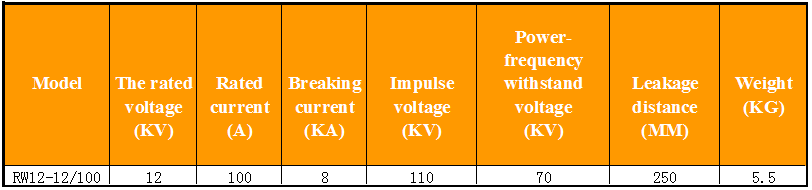

Main technical parameters:
Product Description:
Outdoor drop fuse is suitable for up to and including 35 kv voltage frequency 50 hz in the power system, transmission lines, power transformer overload and short circuit protection, only device.the rated load current, a mechanical life 2000 times or more
Drop type fuse and tensile load falling type fuse is outdoor high voltage protection appliances, it assembled in distribution transformer high voltage side or distribution lines trunk road, transmission lines, power transformer overload and short circuit protection and device.the rated load current. According to fuse protection, the large amount of open circuit current should be no less than the maximum short-circuit current of protected electrical circuit;Minimum melting current should be no greater than was the minimum short circuit current protection circuit.
When installing fuse, should tighten all of the parts, to prevent contact part overheating during normal operation.
For three-phase install fuse piece, even if an action, the other two shall be replaced, because the other two, though not damaged, but is close to a point, to the extent of the damage.Vacuum fuse
Fuse cannot be installed on the severe vibration, dust, pollution, moist places.
The fuse save and check the fuse installation and replacement
To fall or the vibration of the fuse should be tested before use (dc resistance, the parts are in good condition)
Place a long time of fuse factory/outbound should be check again when the resistance value.
Fuse should be stored in dry places.
In replacement of fuse piece, should be replaced in the action after 10 minutes. If after fusing a movement found smoke emission tube or noisy phenomenon, should not replace the fuse, need, fusing and isolation are allowed to change after a power source.
For in near the power supply device or a charged conductor, should meet the safety regulations
1.ISO9001,C
2.90%exportation
3.good quality and reasonable price
2, High industrial frequency withstands voltage, and mechanical strength, etc.
3, High quality on strict testing. Packaging & Shipping:Packing: Wooden case
Shipping:
1. DHL, EMS, TNT, Fedex, UPS and others international express for samples.
2. By air or by sea. Our Services: Payment term:
1.Payment: 1) T/T. 2) L/C AT SIGHT
2.Port of loading: Ningbo ,Wenzhou or Shanghai Port
3.Discounts: offered based on order quantities
4.Delivery time: 5-30 days according to order quantities.

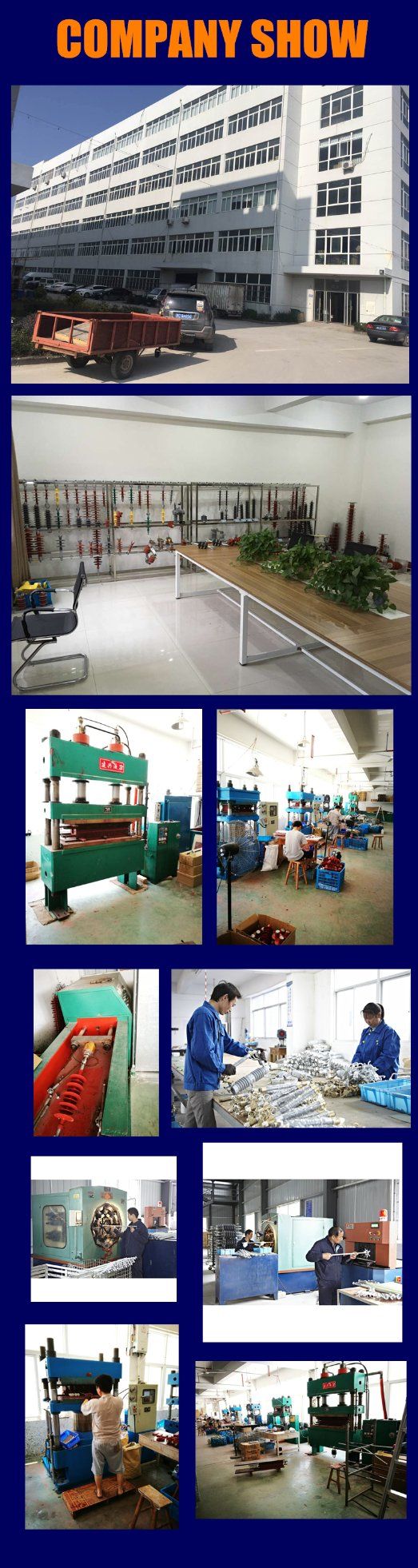

Company show:
Certificate of inspection:
ZHEJIANG GUOEN ELECTRIC Co., Ltd. Began in 1990, registered capital is 15.5 million now, covers an area of more than 3000 square meters, is a company specializing in the production of power distribution switch control equipment, electric equipment switch, high and low voltage electrical appliances and accessories, electronic components and components, mechanical equipment and accessories, lightning protection equipment, energy-saving equipment, insulator, plastic parts, hardware manufacturing, and other products, and integrating scientific research, production, trade, services for the integration of large-scale modern enterprise.
The company has strong technical development strength, advanced technology testing instruments and production equipment, formed in scientific research, development, training as one of the chain of "scientific". Company passed the IS09001 quality system certification, IS014001 environmental management system, the measurement test system, standard system certification, and maintain the effective operation, product by the high voltage electrical machinery industry product quality testing center and the national insulator arrester quality supervision and inspection center detect qualified.
GUOEN electrical adhere to the Equality of products and brand competition, with the international standard" the quality policy, efforts to create brand GUOEN. Adhere to the "people-oriented, for the base" "technology" road, adhere to the innovation and development, adhere to market-oriented, quality as life, science and technology progress, efficiency as the goal. Adhere to the first-class quality, reasonable prices, quality service, fully implementing the project of customer satisfaction.
Company since its inception, and continuously introduce advanced technology and high precision equipment, continuously improve product quality. Quality first, reputation first is the aim of the company, strives for the survival by the quality, reputation and development is the eternal theme in the company, the user's need is our pursuit, the company is willing to friends both at home and abroad sincere cooperation, common development!
