Drop-out Fuse Cutout High-Voltage Polymer

Name: Drop-out Fuse Cutout High-Voltage Polymer
Brand: all-electronics-online.com
SKU: 766038875
Availability: InStock
Rating: 4.7 (64 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Drop-out Fuse Cutout
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Can Be Ordered
Rated Voltage:	24,36kv
Rated Current:	100A/200A
Brand Name:	L&R or as Per Clients' Requirements
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage

Product Description

Quick details:
Place of origin: Zhejiang, China
brand name: as per customers' requirements
model number: can be ordered
usage: high voltage
breaking capacity:high
Safety standards: IEC
installation: open frame
export markets: global
packing: export carton or as customized

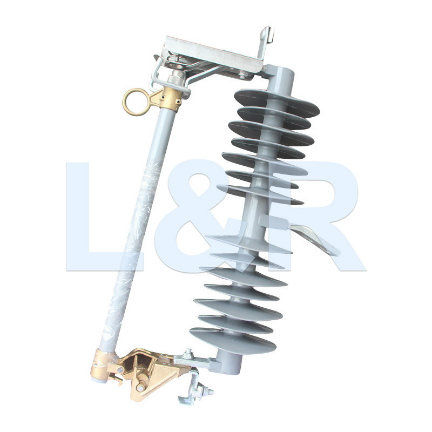

Drop-out fuse cutout and load switching fuse cutout are outdoor high voltage protective device.To be connect incoming feeder of distribution transformer or distribution lines ,it mainly protects transformer or lines from short circuit and overload,and on/off loading current,Drop-out fuse cutout is composed of insulator supports and fuse tube,static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube is composed of inside arc extinguishing tube,outer phenolic compound paper tube or epoxy glass tube load switching fuse cutout provides enforced plastic auxiliary contacts and arc extinguishing enclosure for switching on/off loading current.

Model Type:	RLF-11
Rated Voltage:	24kV
Rated Current:	100A
Breaking Current:	10, 000A
Impulse Voltage:	150kV
Power Frequency Withstand Voltage:	65kV
Creepage Distance:	540mm
Weight:	4.5kg
Dimension:	513411.5mm

specification:
1.factory direct price
2.iso9001-2008
3.timely delivery

Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.

L&R has possessed one of the major suppliers in the power and electrical fields for electrical

Projects in the world. Almost all products manufactured by the L&R members have been certified

By KEMA, CE, SGS and CNAS approved Lab.

L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air

Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,

Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware

And so on. Our member companies are required to have a long term proven track record of meeting contract

Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.

Over a period of 10 years, our business has extended to South America, Middle East, Southeast

Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners

For our sale agent and maintenance company in all the worldwide.
