Drop Wire FTTH Cable/Computer Cable/ Data Cable/ Communication Cable/ Connector/ Audio Cable

Prod Model:	drop wire FTTH cable
Application:	Probe
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Hanxin

Product Description

pplication :This cable is mainly used for interconnecting cable for jumpers, patch cords or pigtails.
      Description
Simplex
Simplex cable consists of single tight buffered fiber with aramid yarns as tensile strength members with
jacket of either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.
Duplex Flat
Duplex Flat Cable consists of two simplex units. Two simplex cords are placed side by side and jacketed
with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.
Duplex Round
Duplex Round Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are
reinforced with aramid yarn to provide physical and tensile strength. The fibers are jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.
Duplex Zip
Duplex Zipcord Cable consists of two single fibers, each with a color-coded PVC tight buffer. They
are reinforced with aramid yarn to provide physical and tensile strength. The fibers have either Flame Retardant PVC or LSZH compound jackets connected by a web to form a āzipcordā construction. The cable is unconnectorized.

Physical Properties

Fiber Count	Cable Type	Nominal Weight(kg/km)	Nominal Weight(lb/kft)	Nominal Outer Diameter(mm)	Nominal Outer Diameter(in)	Maximum Pulling Load
						Installation(N/Ib)	In Service(N/Ib)
1	Simplex 2.0mm	7.6	5.10	2.0	0.079	490/110	290/65
1	Simplex 2.5mm	7.8	5.23	2.5	0.098	490/110	290/65
1	Simplex 2.8mm	8.0	5.37	2.8	0.110	490/110	290/65
1	Simplex 3.0mm	8.2	5.50	3.0	0.118	490/110	290/65
2	Duplex Flat	28.0	18.79	4.0X6.8	0.157X0.267	980/220	580/130
2	Duplex Round	18.4	12.35	4.2	0.165	980/220	580/130
2	Duplex Zip	15.0	10.07	2.4X4.8	0.094X0.188	980/220	580/130

     Mechanical Properties

Minimum Bending Radius: Under installation:20hOD During operation:10hOD Temperature Range: Operating Temperature Range:-40ºC(-40ºF) to +70ºC(+158ºF) Storage Temperature Range:-50ºC(-58ºF) to +70ºC(+158ºF)

Maximum Compressive Load:2000N Repeated Impact: 2.9 N.m (J)3h2 impacts Twist (Torsion):180h10 times, 125hOD Cyclic Flexing:25 cycles for armoured cables.;                       100 cycles for unarmoured cables. Crush Resistance:875N/cm (500lb/in)

    Fiber Compliance

Temperature Cycling	IEC60794-1-2-F2	Repeated Bending	IEC60794-1-2-E6
Tensile Strength	IEC60794-1-2-E17	ATorsion	IEC60794-1-2-E
Crush	IEC60794-1-2-E3	Kink	IEC60794-1-2-E10
Impact	IEC60794-1-2-E4	Cable Bend	IEC60794-1-2-E11
		Cool Bend	IEC60794-1-2-E11

      Safety Compliance

General Purpose Grade	Flammability Test: OFN (UL1581)
Riser Grade Plenum Grade FRPVC Grade LSZH Grade   LSFROH Grade     FR Grade	Flammability Test: OFNR/FT4 (UL1666) Flammability Test: OFNP/FT6 (UL 910) Flammability Test: IEC60332-1 Halogen Content Test: IEC 60754-1 Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2 Halogen Content Test: IEC 60754-1 Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2 Flammability Test: IEC60332-1 & IEC 60332-3C/A Fire Resistance Test: IEC 60331 / BS 6387 CWZ

    Standard Compliance
GR409-CORE                                       TIA/EIA 568B.3                                ICEA-S-83-596
    Features
•Suitable for indoor use, such as routing connections in patching systems
•Short "patch cord" cables ideal for links between electronic equipment and fiber panels
•Compatible with wide variety of fiber optic connectors
•High quality tight-buffer coating on fiber for environmental and mechanical protection
•Customized jacket colors available for matching connectors.
•Private labeling on the cable outer jacket is also available.

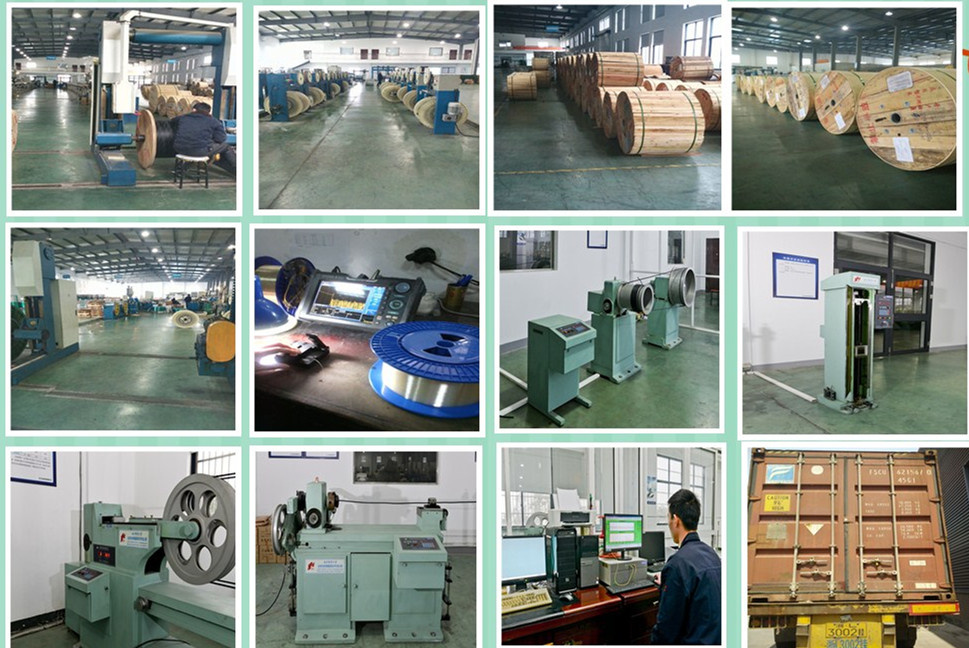

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
