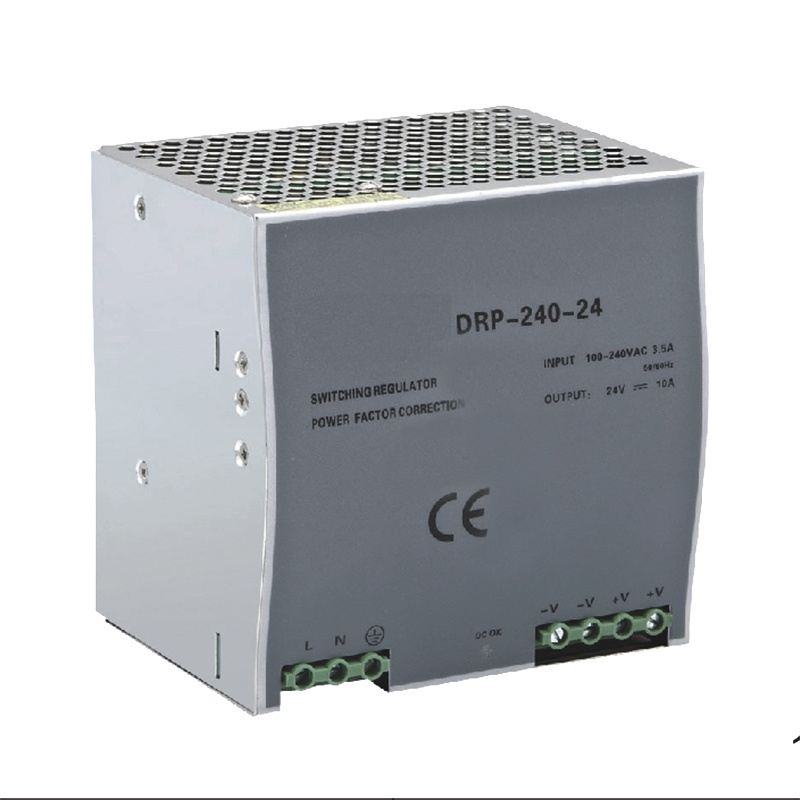

Drp-240 Single Output DIN Rail Power Supply 240W Rail Track Power Supply
| Price: |
US $ 40-45/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DRP-240 |
| Size: |
125.5X125.2X100mm |
| Net Weight: |
1.2kg/PC |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
201 - 300W |
| Input Voltage: |
380V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Brand: |
Yumo |
Product Description
Single output: Power 240W
Input voltage: 85~264V 120~370V
Specifications: 1. CE ROHS approved
2. AC85-264V input
3.1 years warranty
Notice: a.We do have enough ability to produce your customized order
b.Samples are available
c.High quality and competive price .
d.1 years warrenty ,buy with confidence
General Specification :
Model | DRP-240-24 | DRP-240-48 |
DC output voltage | 24V | 48V |
Output voltage range(Note:2) | ±1% | ±1% |
Rated output current | 10A | 5A |
Output current range | 0-10A | 0-5A |
Wave and noise(Note:3) | 80mVp-p | 150mVp-p |
Inlet stability(Note:4) | ±0.5% | ±0.5% |
Load stability(Note:5) | ±1% | ±1% |
DC output power | 240W | 240W |
Efficiency | 84% | 85% |
Adjustable range for DC voltage | 21.6~26.4V | 43.2~52.8V% |
AC input voltage range | 88~264VAC 47~63Hz;120~370VDC |
Input current | 3.5A/115V 1.8A/230V |
AC inrush current | Cold-start current 30A/115V 60A/230V |
Leakage current | <3.5mA/240VAC |
Overload protection | 105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery |
Over-voltage protection | 30~34V | 54~60V |
High-temperature protection | 100°c±5°c(TSW1) |
Temperature coefficient | ±0.03%/°c(0~50°c) |
Setup, rise , hold up time | 800ms, 40ms,20ms/230VAC 800ms, 40ms, 20ms/115VAC |
Vibration | 10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes |
Withstand voltage | Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC |
Isolation resistance | Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ |
Working temperature and humidity | -10°c~+60°c(Refer to output derating curve), 20%~90%RH |
Overall dimension | 125.5×125.2×100m |
Weight | 1.2Kgs 20PCS/14Kg/1.1CUFT |
Safety standards | Meet UL 1012 requiement (Not apply for the mark) |
EMC standards | Meet FCC PART 15 J Conduction class B |

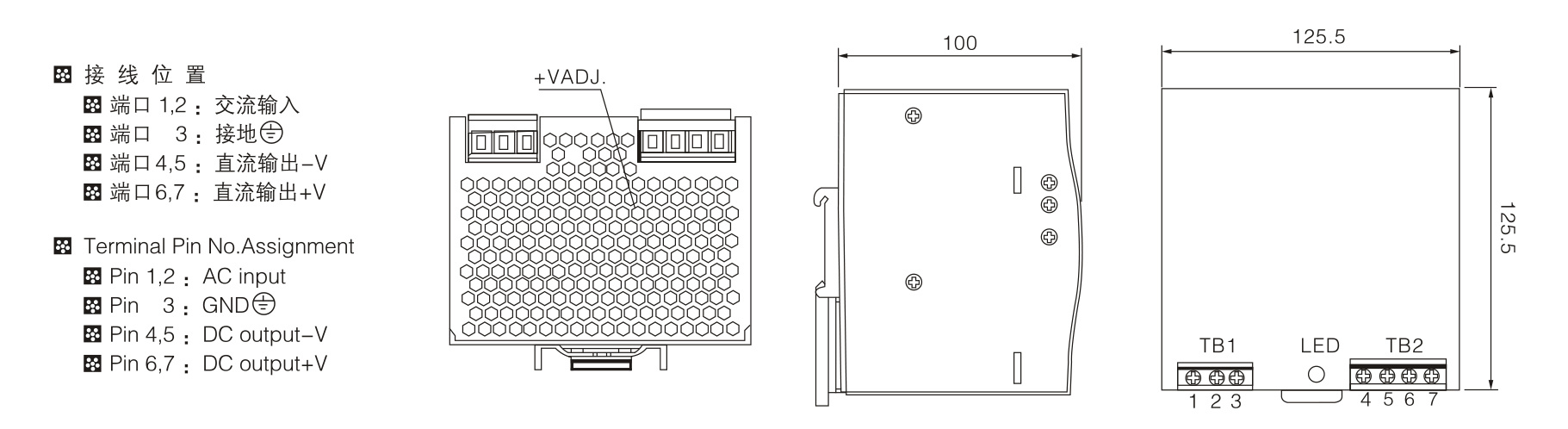

Overall Size:
