| Prod Model: |
23A |
| Color: |
Gold |
| Weight: |
7.1g |
| Nominal Capacity: |
56mAh |
| Working Temperature: |
-20ºC to 60ºC |
| Storage Temperature: |
10ºC to 25ºC |
| Test Passed: |
Pony, SGS, TUV |
| Validity: |
5 Years |
| Jacket: |
Foil\Iron\PVC |
| Application: |
Remote Control |
| Cross Reference: |
L1028\A23\Mn21\Lr23A |
| Charging Type: |
Non-rechargeable |
| Nominal Voltage: |
12V |
| Battery Type: |
Zn/MnO2 Battery |
| Recycling: |
Non-Recyclable |
| Certification: |
MSDS |
| Package: |
Simple |
| Size: |
23A |
Product Description

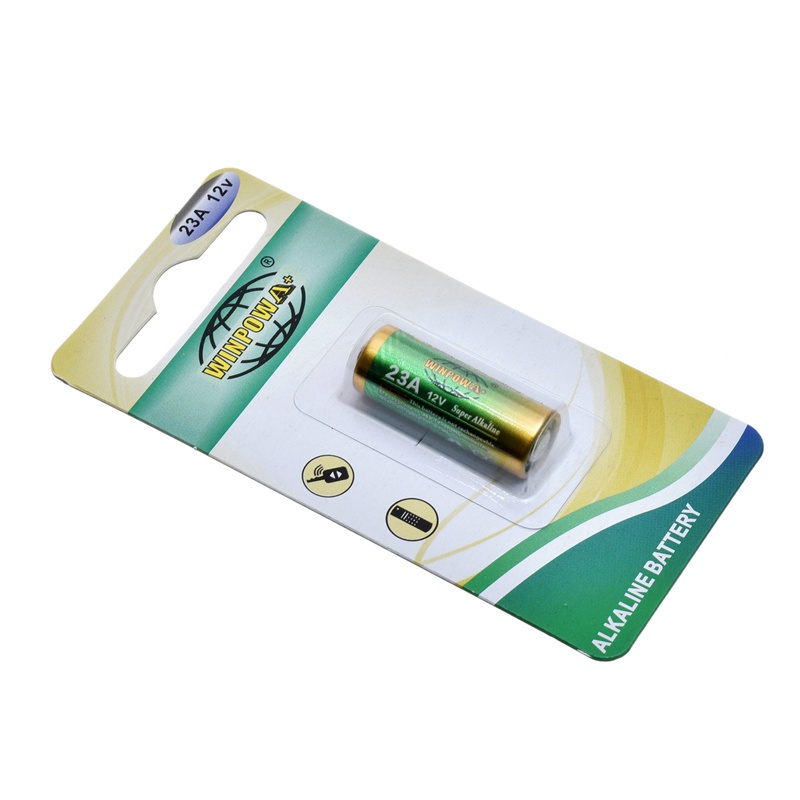

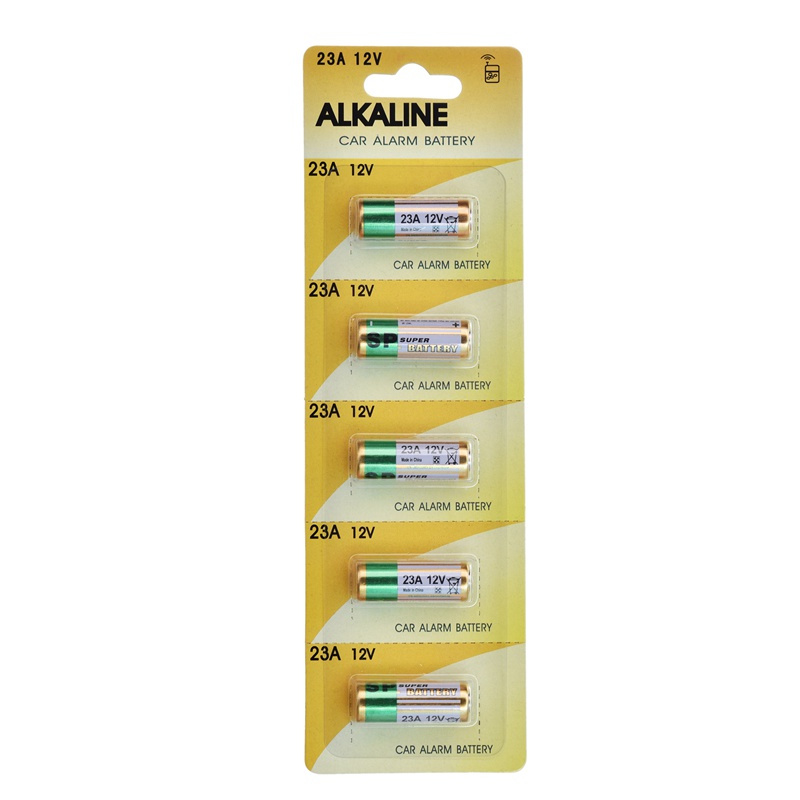

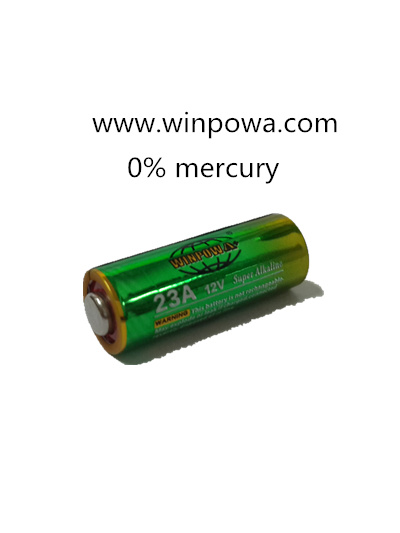

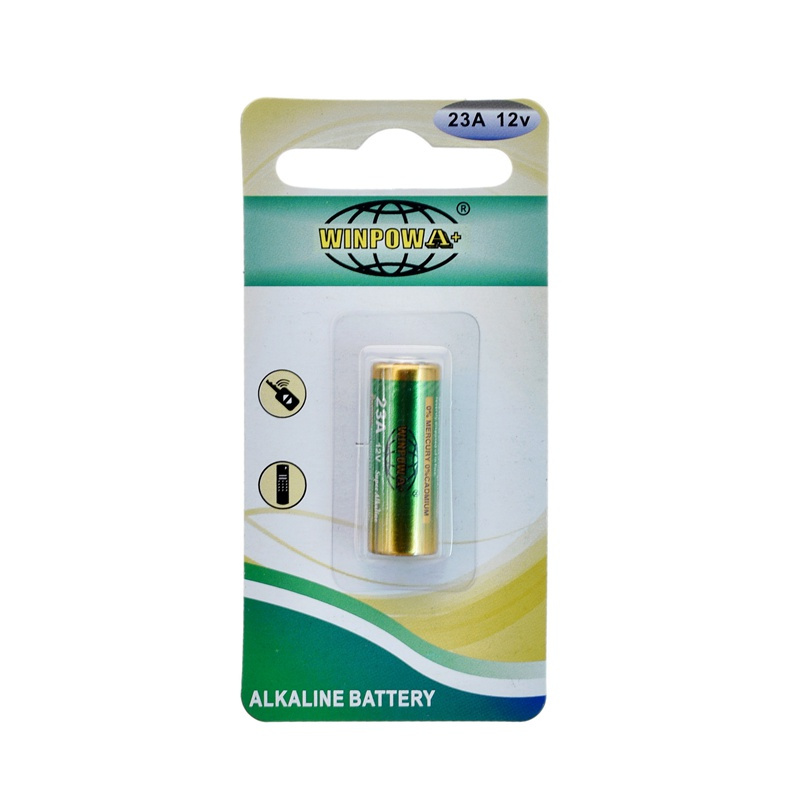

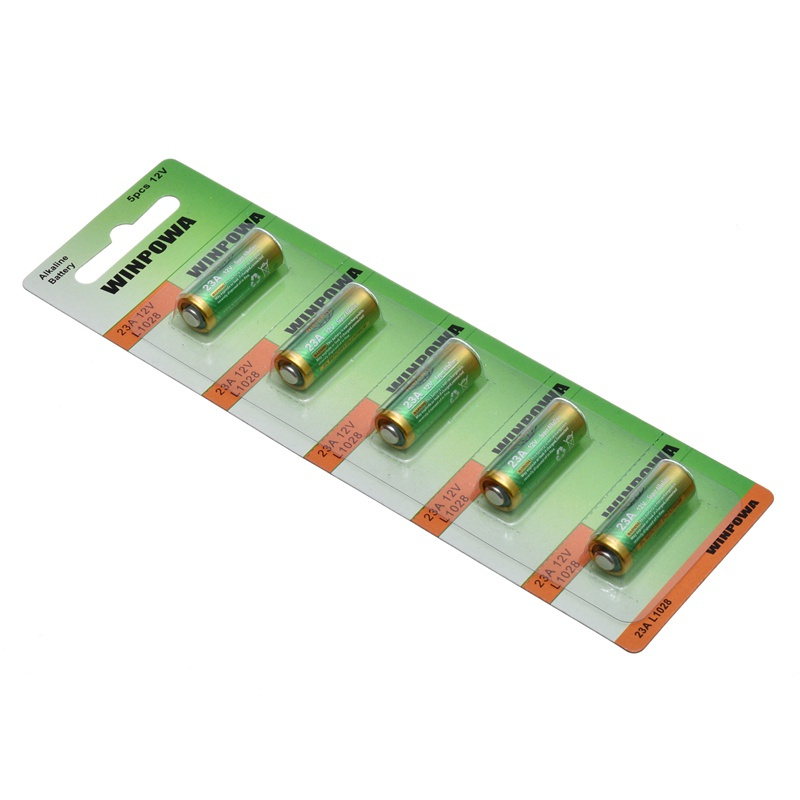

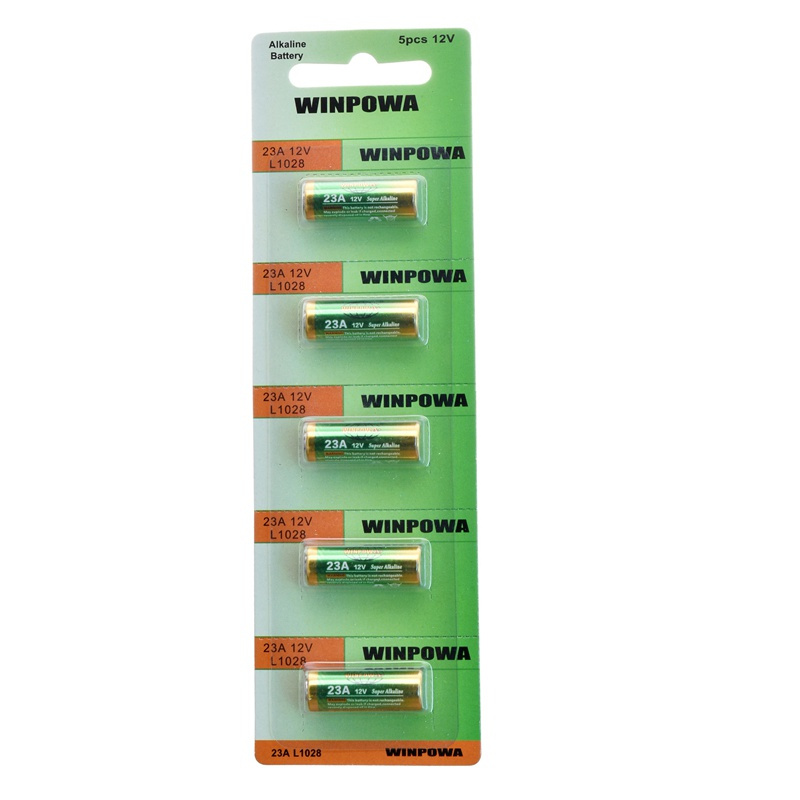

Dry alkaline battery pack for Auto garage gate remote control(23A)Product overview
Type : Alkaline High Voltage Battery
Chemical System : Zinc/Manganese Dioxide
Nominal Voltage : 12.3V
Nominal Dimension : Φ10.3×28.5 mm
Terminal : Nickel plated flat contacts-protruded red (+); recessed black (-)
Internal connection : Pressure
Average Weight : 7.68g
Shelf Life : 5 years
Current Drain : Under 5mA pulse, 0.5mAcontinuous
Close circuit Voltage : 6.5V(min)(load resistor 100Ω at 20ºC For 0.3 seconds)
Nominal Capacity : 56mAh(at 20KΩ load, to 6V at 20ºC)
Average Service Life : 100hrs (at 20KΩ load, to 6V at 20ºC)
| | Discharge Condition | Average Minimum Discharge Time |
| | Discharge
Load | Daily
Discharge time | End Point
Voltage(V) | New battery | After 12mth.at
room temp. |
| Standard | 20kΩ | 24h | 6.0 | 110h | 104h |
| Reference | 1KΩ | 24h | 6.0 | 210min. | 168min. |
| Reference | 1KΩ | 1S/4S,24h | 6.0 | 20000times | 19000times |
Company info:
Huizhou Winpow Electronic Co.,Ltd is a China leading battery R&D and producing manufacturer. Products including alkaline & lithium manganese , carbon zinc and rechargeable type of batteries. Wide application area: household, office and industrial.
The company is established in 2007, at the beginning, it was only a 1000 square meters workshop with 15 employees. Due to our passion in battery R&D and rigorous production & quality control, Nowadays Winpow has grown up to a 5000 square meters battery manufacturer. Our competitive price and premium quality, made us got great reputation from the market. In domestic market, we are acting the ODM supplier for some famous brands in 23A/27A alkaline button battery pack.
Because of our outstanding R&D ability, we are owning many patented batteries in China, and posting termly technical articles on some of famous electronic magazines in China.
In order to develop oversea market, Winpow(HK) company ltd is established in 2013, and exported batteries to more than 30 countries, oversea market already covered our 60% sales.
Winpow always focus on customer cares, innovation, excellence quality and win-win. Commit ourselves to become the world leading battery ODM supplier.
FAQ:
Q:Can you help us for freight?
A:Yes,we also have trustable forwarders for you option, if you need.
Q:Can we have our own packaging design?
A:Of cause, customized packaging is available, but it has MOQ required.
Q:How long is your warranty?
A:We offer 1 years warranty after order delivery.
WINPOW specializes in battery R&D and production. We provide a wide variety of battery products, including alkaline button cells, 23A/27A batteries, lithium manganese button cells (CR2032), LR6/LR03 alkaline cylinder batteries, R6/R03/6F22 Carbon zinc batteries, lithium primary cylinder batteries (CR123A, ER14250), zinc air batteries and rechargeable batteries (Ni-MH, lithium ion and lead acid).
Huizhou WINPOW Electronic Co., Ltd, the first plant of WINPOW, was established in April 2007. Through over a decade of efforts, we have built three plants, one in Huizhou for producing alkaline button cells and 23A/27 batteries, one in Shenzhen for providing battery diaphragm, and one in Shaoyang for supplying lithium batteries.
As a battery specialist, WINPOW has independent IP rights and R&D capabilities in batteries and are already at the forefront of the industry for many years. We are home to a host of industry professionals who have their papers published in authoritative magazines of China's battery industry, such as Battery and Battery Industry. Our products are widely embraced for extraordinary cost performance and superb leakage resistance. WINPOW's 23A, 27A, and lithium manganese button cells are best-selling products in Chinese battery market, which makes WINPOW an authorized manufacturer of many reputable brands.
Driven by the goal of going global, we established WINPOW (HK) Co., Ltd and WINPOW Industry Co., Ltd. As yet, WINPOW has extended its footprint throughout more than 40 countries and regions including Europe, North America, South America, and Middle East, and its exports are still increasing at an annual rate of 20%. Today, WINPOW's diversified products and premium services are accessible to customers from all around the world.
WINPOW will always keep to its business philosophy of being "customer-centric, honest in cooperation, innovative, and in pursuit of excellence. We will stay focused on battery R&D and production and push WINPOW forward to be a world-leading battery manufacturer.
