| Prod Model: |
FG373 |
| Item Name: |
Dry Cell 6 Volt Rechargeable VRLA AGM Battery |
| Maintenance Type: |
Free |
| Size: |
151*50*94*100mm |
| Weight: |
1.55kg/PCS |
| Material: |
Fire Proof Case |
| Warranty: |
3 Years |
| Terminal Type: |
F1 |
| Working Temperate: |
-15 to 45 |
| Certificate: |
Ce, MSDS |
| Cell: |
3 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
6V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

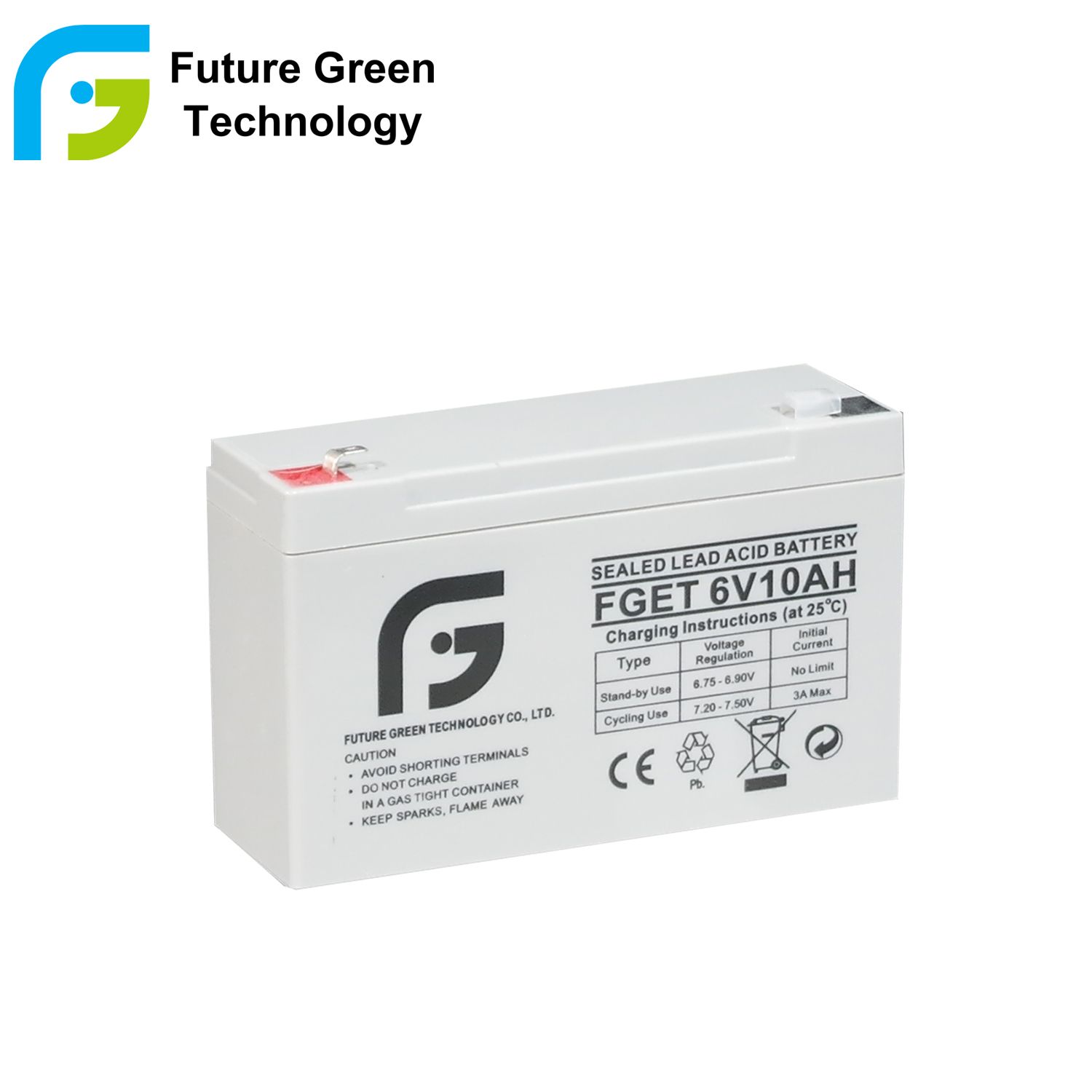

Dry Cell 6 Volt Rechargeable VRLA AGM Security System Battery
General Series
General Series Valve Regulated Lead Acid batteries are designed with AGM (Absorbent Glass Mat) technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the field of UPS, Emergency Lighting System.
Product Details:| Battery model | GS610AH |
| Designed Floating Life | 3~5 Years |
Capacity
(25ºC) | 20hR(0.225A, 5.25V) | 10hR(0.448A,5.25V) | 5hR(0.82A, 5.25V) | 1hR(3.25A, 4.80V) |
| 10Ah | 9.3Ah | 8.5Ah | 6Ah |
| Dimensions | Length | Width | Height | Total Height |
| 151±1mm | 50±1mm | 94±1mm | 100±1mm |
| Approx. weight (±5%) | 1.55Kg |
| Internal resistance | Full charged at 25ºC: Approx .22mOhms |
| Self discharge | 3% of capacity declined per month at 25ºC (average) |
Capacity Affected
by Temp.(20HR) | 40 ºC | 25 ºC | 0 ºC | -15 ºC |
| 102% | 100% | 85% | 65% |
| Charge Voltage (25ºC) | Cycle use | Float use |
| 7.25-7.45V(-15mV/ºC), max. Current: 1.35A | 6.8-6.9V(-10mV/ºC) |
Battery Use and Maintenance:1) Please use constant-voltage charge.
2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.
Lead acid battery series:| Model | Voltage | Capacity
(20h) | Size
(mm) | Plate
Number | Weight
(kg) |
| SJ6V4.5Ah | 6V | 4.5Ah | 70*47*101*107 | 18 | 0.71 |
| SJ6V7Ah | 6V | 7Ah | 151*34*94*100 | 24 | 1 |
| SJ6V10Ah | 6V | 10Ah | 151*50*94*100 | 36 | 1.5 |
| SJ12V1.3Ah | 12V | 1.3Ah | 97*43*51*57 | 30 | 0.56 |
| SJ12V4Ah | 12V | 4Ah | 90*70*101*107 | 36 | 1.4 |
| SJ12V7Ah | 12V | 7Ah | 151*65*94*100 | 48 | 2 |
| SJ12V9Ah | 12V | 9Ah | 151*65*94*100 | 54 | 2.6 |
| SJ12V12Ah | 12V | 12Ah | 151*98*95*101 | 78 | 3.5 |
| SJ12V17Ah | 12V | 17Ah | 181*77*167*167 | 48 | 4.9 |
| SJ12V24Ah | 12V | 24Ah | 177*165*126*126 | 66 | 7.3 |
| SJ12V30Ah | 12V | 30Ah | 177*165*126*126 | 78 | 8.8 |
| SM12V33Ah | 12V | 33Ah | 196*131*155*180 | 42 | 9.2 |
| SM12V36Ah | 12V | 36Ah | 196*131*155*180 | 42 | 10.6 |
| SM12V38Ah | 12V | 38Ah | 196*165*175*182 | 36 | 11.4 |
| SM12V42Ah | 12V | 42Ah | 196*165*175 | 42 | 12.8 |
| SM12V45Ah | 12V | 45Ah | 196*165*175 | 42 | 13.2 |
| SM12V55Ah | 12V | 55Ah | 229*138*208*227 | 48 | 15 |
| SM12V65Ah | 12V | 65Ah | 350*166*175 | 66 | 19 |
| SM12V70Ah | 12V | 70Ah | 350*166*175 | 72 | 21 |
| SM12V80Ah | 12V | 80Ah | 350*166*175 | 78 | 22 |
| SM12V100Ah | 12V | 100Ah | 307*168*208*227 | 66 | 28 |
| SM12V120Ah | 12V | 120Ah | 406*174*208*233 | 90 | 33 |
| SM12V120Ah | 12V | 120Ah | 406*174*222*238 | 78 | 34 |
| SM12V134Ah | 12V | 134Ah | 340.5*173*280(285) | 66 | 36 |
| SM12V145Ah | 12V | 145Ah | 340.5*173*280(285) | 78 | 40 |
| SM12V150Ah | 12V | 150Ah | 483*170*241*241 | 114 | 43 |
| SM12V180Ah | 12V | 180Ah | 532*207*215*240 | 126 | 52 |
| SM12V200Ah | 12V | 200Ah | 522*240*219*244 | 138 | 59 |
| SM12V210Ah | 12V | 210Ah | 522*240*219*228 | 150 | 61 |
| SM12V260Ah | 12V | 260Ah | 522*240*219*228 | 162 | 69 |
| Front Terminal Battery |
| SM12V55Ah-F | 12V | 55Ah-F | 277*106*222.5*222.5 | 66 | 16 |
| SM12V75Ah-F | 12V | 75Ah-F | 562*114*188*188 | 78 | 18 |
| SM12V100Ah-F | 12V | 100Ah-F | 394*109*286*286 | 66 | 33 |
| SM12V105Ah-F | 12V | 105Ah-F | 507*109*223*238 | 66 | 35 |
| SM12V150Ah-F | 12V | 150Ah-F | 551*109*288*288 | 66 | 46 |
| SM12V150Ah-F | 12V | 150Ah-F | 551*105*288*288 | 66 | 45 |
| SM12V180Ah-F | 12V | 180Ah-F | 560*125*316*316 | 78 | 52 |

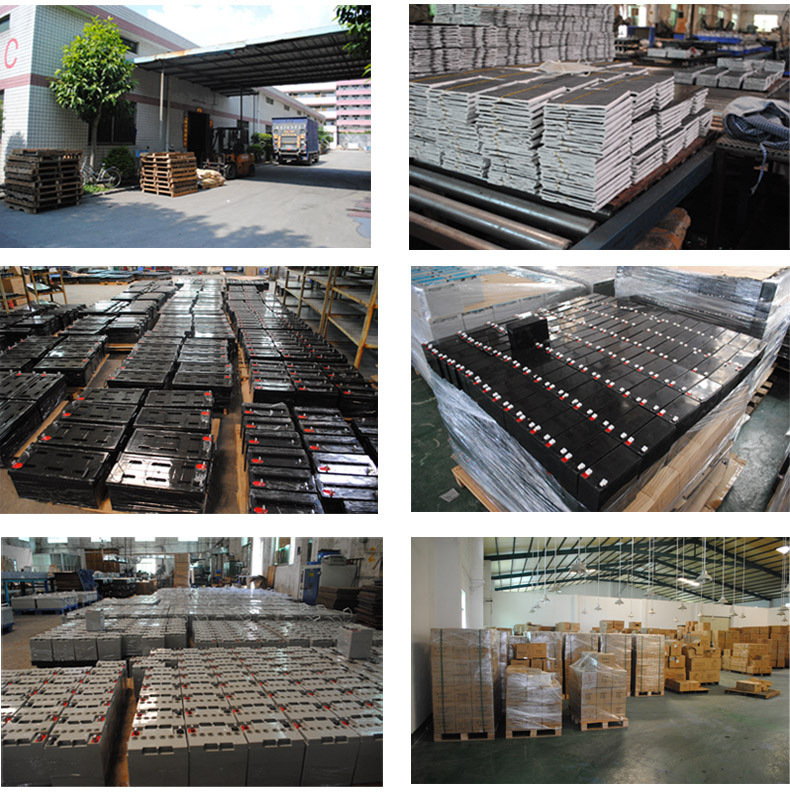

Factory Show:
Packing:Normally packing: 1pc/5pcs/8pcs/10pcs per carton
Individual packing requirement is acceptable.
Our Services: Samples and OEM, Warranty and After-Sale Service: - Sample can be provided for quality testing
- OEM Welcomed
- Warranty:2 Year
- After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
How To Ask for Support if products failure in warranty?
1. Email us about PI number, serial number, Product S/N number, show us more details such as: pictures, your testing report or video, if it is the quality problem of product itself, we will resend a new one in next order.
2. we will submit your case to our after sales department.
