| Prod Model: |
SC(B9) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dry: |
Transformer |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Vilee Industry |

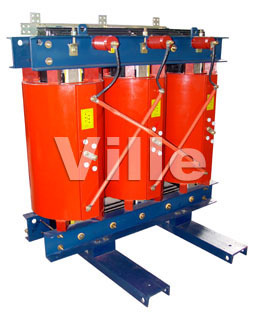

Product Description
Dry transformer Feature:
Adopting advanced technology and high quality raw material, with first class equipment and strict processing, SC-series resin casting dry type transformer owns the following advantages:
1. Copper conductor is used both for H. V. &L. V. Coils to strengthen the glass fiber. It is dried and cast by epoxy resin under the high vacuum. After curing, it is a firm cylinder, with high mechanical strength and withstanding short-circuit capability, smaller partial discharge, higher reliability as well as long service life.
2. Flameproof, explosion resistant, no pollution to environment. Because the imported epoxy resin and glass fiber compound insulation materials are used and certain silicon powder is contained in the epoxy resin. Heat conduction co-efficient and flameproof ability is greatly improved in comparison with old type materials. There would be no toxin and harmful gas caused by resin under high temperature.
3. The moist cannot be absorbed by coils. The core clamp is coated with the special anti-corrosive materials so it can do as usual under the severe conditions. It is unnecessary to get rid of moisture for interval operation.
4. Good capabilities of withstanding short-circuit and lightning impulse.
5. Good heating dissipation due to thin resin coated on the outside of coils. Normally, natural air cooling (AN) is taken. Fan cooling system could be provided with the transformer in any protection grade to improve short time overload ability and ensure the safe operation.
6. Low loss and noise, energy saving, economical operation, free from maintenance.
7. Small size, less weight, little occupied area, and few cost for installation. It is unnecessary to take consideration of drainage pool, fire proof and fire fighting facilities, as well as standby power source.
8. Without any risk of fire disaster, explosion, it could also be installed separately around loading center, close to electric consuming place, so the wiring costs can be reduced and more costs can be saved.
Specification:
Voltage class: 6 -35KV
Capacity range: 30 - 10000kVA
Voltage adjustment mode: No-load tap changer or on-load tap changer (fitted with vacuum or on-load tap changer )
Tapping range: +/- 2X2.5% +/- 4X2.5% (or others)
Frequency: 50Hz or 60Hz
Phase number: Three phase
Vector group: Yyn0; Dyn11; Yd11 or others
Short-circuit impedance: Standard impedance ( requirement by customer)
Working condition: Relative humidity 100%, ambient temperature no more than 40 degrees centigrade
Max. Temperature rise: 100K
Cooling mode: Natural air cooling (AN) or fan cooling (AF)
Protection grade: IP00; IP20(indoor ); IP23(outdoor)
Insulation grade: F grade
Insulation level:
10KV Power frequency withstanding voltage 35KV, impulse withstanding voltage 75KV;
20KV Power frequency withstanding voltage 50KV, impulse withstanding voltage 125KV;
35KV Power frequency withstanding voltage 70KV, impulse withstanding voltage 170KV;
Ordering Notes:
1. Type
2. Rated capacity
3. Phase number, rated frequency
4. Rated voltage(L. V. &H. V. )
5. Vector group
6. Short-circuit impedance
7. Cooling mode
8. Temperature controlling and indicating device ( with computer interface or not)
9. Protection degrade and enclosure material ( its color)
10. Service condition: Elevation height, environmental temperature, etc
11. Ordering quantity and delivery time
12. Special requirement
| Technical Parameter for SC (B ) 9 Series |
H -V : 10(10.5,11,6,6.3,6.6)±2X2.5%kV Vector Group: Y,yn0 or D,yn11
|
L -V : 0.4kV Insulating Level: LI75AC35/LI0AC3
|
Model
| Po
| Pk
(120C)
| Uk
| Io | Sound Level
| Dimension(main body)
|
W
| W
| %
| %
| dB(A)
| L X W X H X Track
|
SC9-30/10
| 200
| 745
| 4
| 2.2
| 43
| 700X460X750X400
|
SC9-50/10
| 300
| 1050
| 4
| 2.0
| 43
| 945X750X950X550
|
SC9-80/10
| 380
| 1450
| 4
| 1.8
| 43
| 945X750X945X550
|
SC9-100/10
| 430
| 1660
| 4
| 1.8
| 44
| 945X750X965X550
|
SC9-125/10
| 520
| 1950
| 4
| 1.6
| 44
| 1040X860X1045X660
|
SC9-160/10
| 600
| 2250
| 4
| 1.4
| 44
| 1040X860X1085X660
|
SC9-200/10
| 700
| 2670
| 4
| 1.4
| 45
| 1040X860X1115X660
|
SC9-250/10
| 800
| 2800
| 4
| 1.4
| 45
| 1170X860X1120X660
|
SC9-315/10
| 940
| 3660
| 4
| 1.2
| 47
| 1240X760X1305X660
|
SCB9-400/10
| 960
| 4210
| 4
| 1.2
| 48
| 1320X760X1390X660
|
SCB9-500/10
| 1150
| 5150
| 4
| 1.2
| 48
| 1360X760X1455X660
|
SCB9-630/10
| 1320
| 6180
| 4
| 1.0
| 50
| 1460X760X1500X660
|
SCB9-630/10
| 1280
| 6300
| 6
| 1.0
| 50
| 1460X760X1480X660
|
SCB9-800/10
| 1500
| 7330
| 6
| 1.0
| 52
| 1520X920X1590X820
|
SCB9-1000/10
| 1760
| 8590
| 6
| 0.8
| 54
| 1600X920X1720X820
|
SCB9-1250/10
| 2060
| 10190
| 6
| 0.8
| 54
| 1660X920X1895X820
|
SCB9-1600/10
| 2400
| 12370
| 6
| 0.8
| 56
| 1800X920X1985X820
|
SCB9-2000/10
| 3200
| 15230
| 6
| 0.6
| 57
| 1800X920X2135X820
|
SCB9-2500/10
| 3800
| 18090
| 6
| 0.6
| 57
| 2070X1170X2180X1070 |

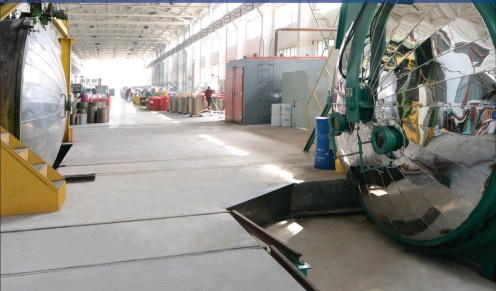

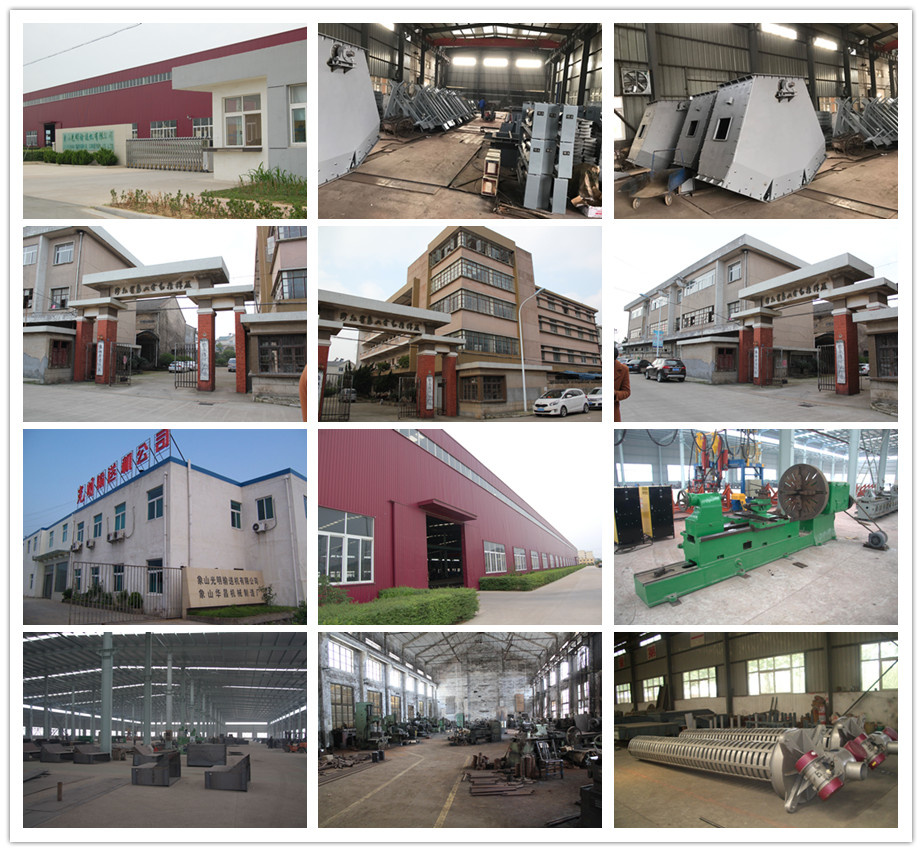

Our workshop
Our sales team
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
