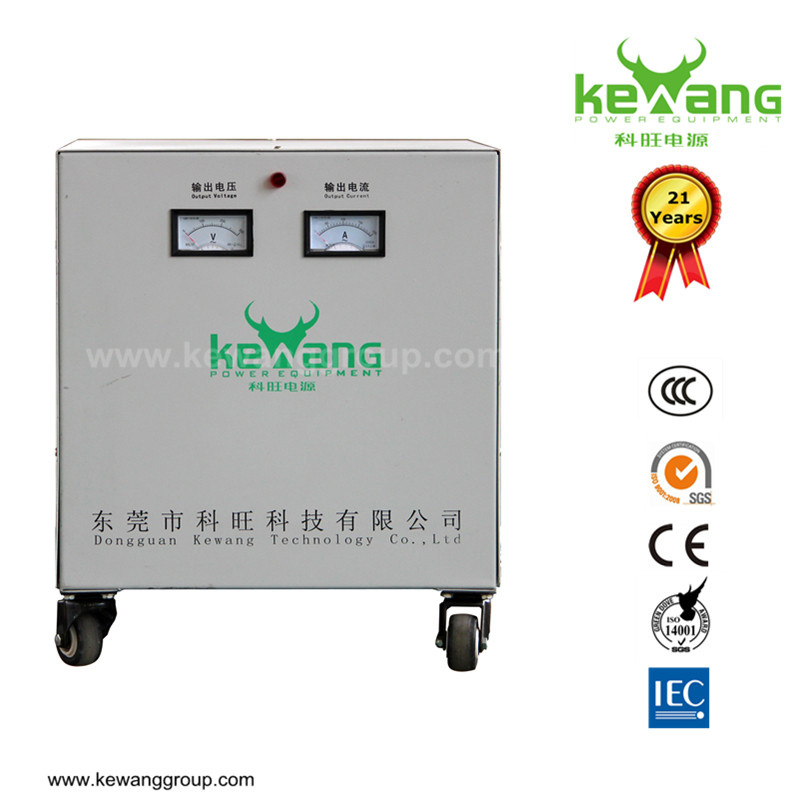

Dry Type Air- Cooled Auto Transformer (SE-60kVA)

Name: Dry Type Air- Cooled Auto Transformer (SE-60kVA)
Brand: all-electronics-online.com
SKU: 720965032
Availability: InStock
Rating: 4.5 (115 reviews)

Price:	US $ 178-277/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	transformer
Frequency:	50Hz/60Hz
Winding Coupling:	Yna0 Dyn11
Capacity:	50kVA-2000kVA
Insulation Class:	a
Application:	Lighting
Phase:	Three
Coil:	Shell-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Brand:	Kewang

Product Description

SE Series Air-cooled Low Voltage Transformer

Product introduction
With high quality materials and advanced technology, by air-cooled method, via vacuum pressure impregnating and strict quality inspection, SE Air-cooled LV transformers are classified into: Auto transformer, Isolation transformer, Single phase transformer and Three-phase transformer;

Feature
1. Air-cooled method and vacuum pressure impregnating technology with ensured quality;
2. 97% high efficiency with low loss,low loise, strong load capacity;
3. Protection system: Over load, over voltage, short circuit protection;
4. Customized project accepted.

Application
Applied to the machines with operating voltage less than 1000V: Precise Instruments, Test Equipment, Electric Equipment, Production Lines, Railways, R&D Science Technology Institutions.

Rated Capacity	10KVA~1250KVA
Frequency	50Hz/60Hz
Coupling	Yna0 / DyN11
Efficiency	>95%
Insulation Class	B/F/H
Ambient Temperature	10~40ºC

Specification

Model	Capacity (kVA)	Input voltage(v)	Output voltage(V)	Rated current(A)	Size (L* W *H)	Weight (kg)
SE-2	2	380	220	5	340420350	28
SE-3	3	380	220	8	340420350	35
SE-5	5	380	220	13	340420350	50
SE-10	10	380	220	26	500400600	75
SE-15	15	380	220	39	500400600	85
SE-20	20	380	220	52	600500620	115
SE-30	30	380	220	78	600500620	125
SE-40	40	380	220	105	600500620	135
SE-50	50	380	220	131	600500620	150
SE-60	60	380	220	157	600500620	170
SE-80	80	380	220	210	720560800	210
SE-100	100	380	220	262	720560800	230
SE-120	120	380	220	315	720560800	270
SE-150	150	380	220	393	720560800	300
SCB-200	200	380	220	524	880680980	390
SCB-250	250	380	220	656	880680980	440
SCB-300	300	380	220	787	880680980	480
SCB-400	400	380	220	1049	11808801280	700
SCB-500	500	380	220	1312	11808801280	850
SCB-600	600	380	220	1574	12809501600	950
SCB-800	800	380	220	2099	12809501600	1200
SCB-1000	1000	380	220	2624	140011001800	1400
SCB-1250	1250	380	220	3280	140011001800	1700
SCB-1600	1600	380	220	4199	150012001900	2000
