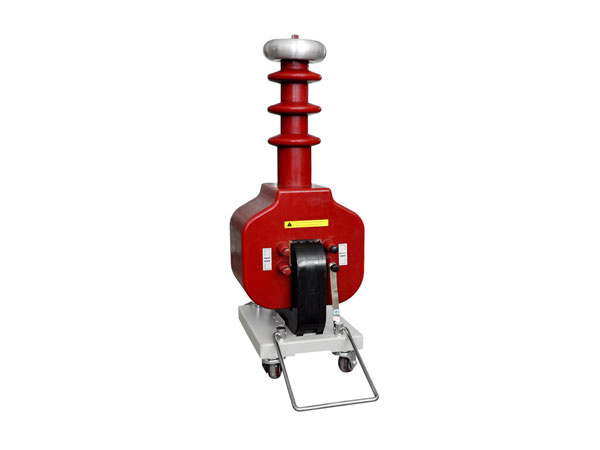

Dry Type HV Testing Transformer GTB-10/100

Name: Dry Type HV Testing Transformer GTB-10/100
Brand: all-electronics-online.com
SKU: 691551821
Availability: InStock
Rating: 4.5 (56 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GTB-10/100
Power:	electronic
Input Power:	AC 200V
Output Voltage:	AC 100kV
Output Current:	100mA
Rated Capacity:	10kVA
Ratio Error:	<±1%
Impedance Voltage:	<10%
Surface Temperature:	<55ºC
Output Voltage Waveform:	sine wave
No-load Loss:	<0.4 %
Application:	Electronic
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Brand:	HV Hipot

Product Description

Product Description

GTB Series Dry Type HV Testing Transformer is adopted with new technology of winding epoxy vacuum pouring and CD type Iron core. Compared with similar product of oil immersed type transformer, it is light weight, smaller size, insulation strength and moisture-resistant is more improved.

Features

Light weight, small size, nice apperance;
Stable performance, easy to carry;
High security and reliability in operation;
Economic and efficient to reduce network loss and working cost;
Low temperature rise;
Low noise;
High moisture-proof capability;

Specifications ( Note: We can design and manufacturer as customers' specific requirements.)

Model No.	GTB-10/100
Capacity( kVA )	10
Input voltage( V )	200
Output voltage( kV )	100
Output current( mA )	100
Impedance voltage	≤10 %
Output voltage waveform	sine wave
Surface temperature	<55 ºC
No-load loss	<0.4 %
Permit continuous operation time	1hour
Interval running time	Continuous
Weight( kg )	65

HV Hipot Co. Is a high-tech enterprise professionally engaged in R & D, manufacture, and marketing of power testing products, instrumentations, power industry automation systems, which are supplied for national power companies, metallurgy petrochemical corpations, factories and public institution.

Established in 1997, we have developed Resonance hipot tester, Partial-discharge tester, Power-frequency AC/DC hipot tester, Intelligent control systems, HV circuit breaker tester, Relay protection tester successively, which achieved qualifications and honors of "High-tech enterprise certification", "ISO9001 quality management system certification", "Electrical Measuring&Testing Association of Hubei Province".

In the last years, the company have participated actively in project R&D of High voltage test and Energy saving&environmental protection with State grid corporation, HV research institution and Wuhan University.

We own 18 technicians, who form a strong R & D team and high-quality sales team. Years of experience and strong R&D support made us become a leader in the field of power on-line testing. The domestic market have been expanded to many provinces and cities nationwide, and our products have been recognized by diverse range of industrial sectors. The business is increasing every year.

Meanwhile, we have also been actively marketing in international market. Until now, our products have been exported to Australia, Russia, India, Pakistan, Vietnam, Middle East. The reliable performance and competitive price of our products have obtained us high praise from our overseas customers.

With the spirit of "professionalism, integrity, responsibility, innovation", we will always develop better products and provide our customers with high quality products and satisfactory services.
