DSP20000q Power Amplifier for Subwoofer with DSP
| Price: |
US $ 850-900/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
DSP20000Q |
| Rated Power: |
4*2200W |
| Type: |
Professional Amplifier |
| Usage: |
Line Array |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Sound Channel: |
4.1 |
| Output Number: |
4 |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
D |
| Voltage: |
110V or 220V |
Product Description

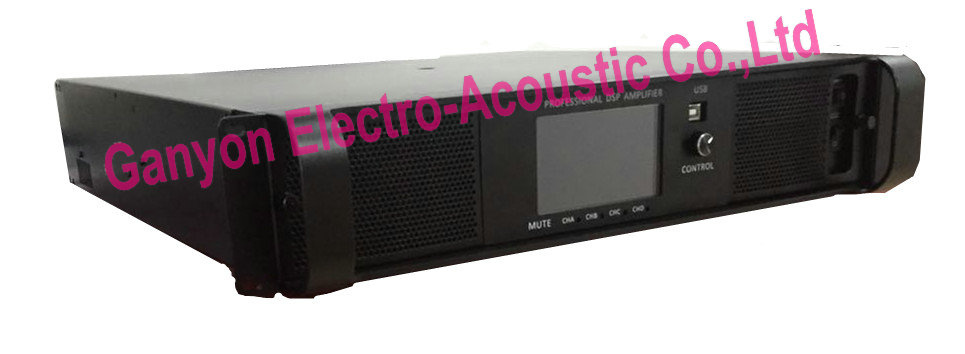

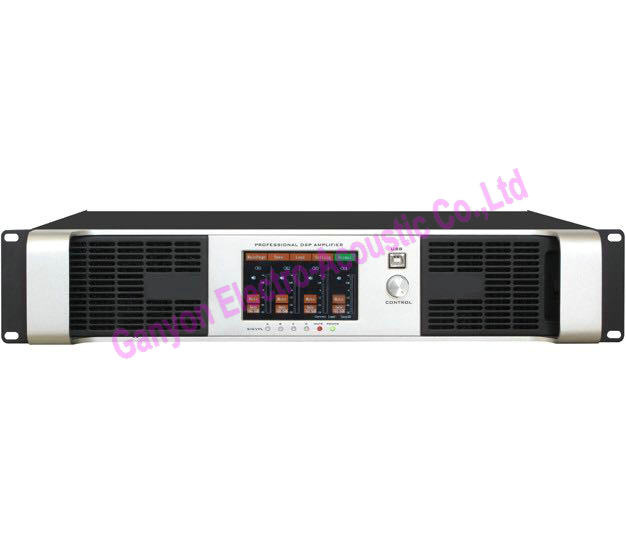

DSP20000Q power amplifier , 4*2200W Big Power Amplifier :
DSP20000Q, New DSP amplifier, outlook is same as original, main function same as original too, Also have internet input port,but it can't work,just same design with Original. 4 channel multi-channel amplifier,
2200W big power, swithc mode power supply, 20kg light product weight, very stable quality, suitable to drive big speaker, subwoofer, line array system.
8 Ω stereo power: 4X2200w
4 Ω stereo power: 4 x4000w
2 Ω stereo power: 4 x4500w
8 Ω bridge power: 8000 w
4 Ω bridge power: 9000 w
Frequency response (+ 0/0.3 dB, 1 w / 8 Ω) : 20 hz - 34 KHZ
Total harmonic distortion of 20 Hz - 20 kHz 1 w: < 0.1%
Signal to noise ratio: > 112 db
Channel separating degree (crosstalk) 1 kHz: > 70 db

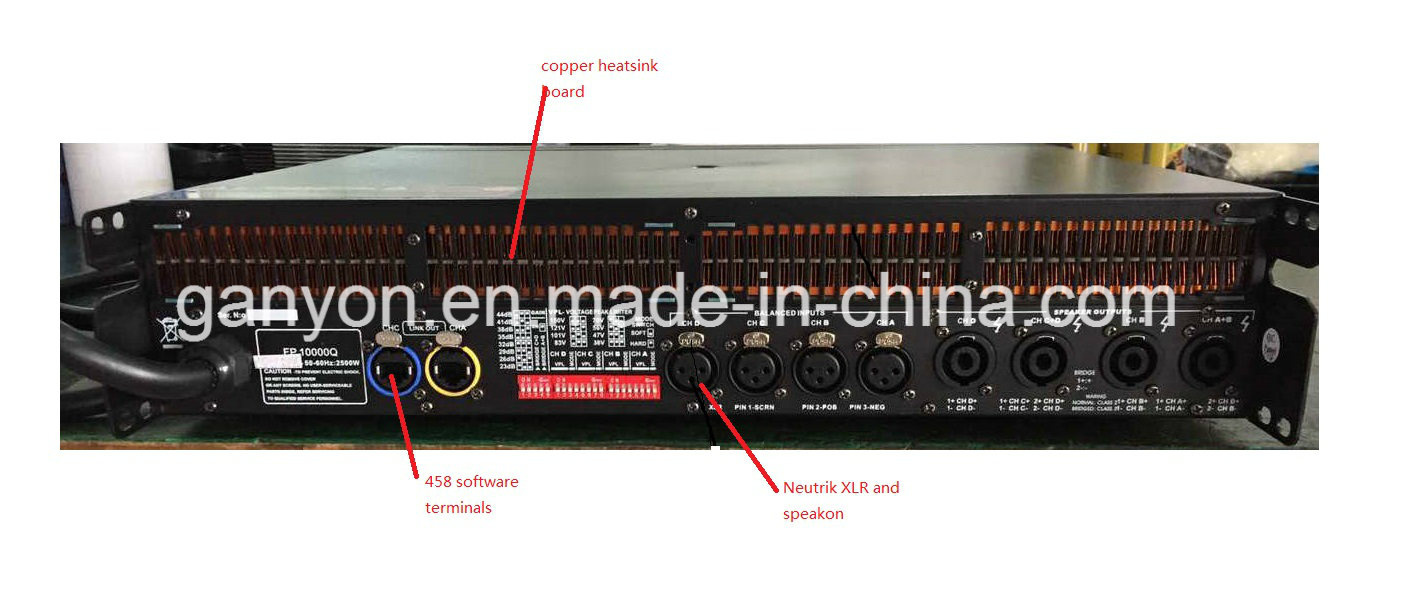

Input connector: female XLR
Output connector, terminal
Input impedance: 20 k Ω balance
Level regulation: front panel potentiometer, from minus infinity to 0 db
Cooling method: stepless speed fan, air flow by the former to the later
Power amplifier protection way: short circuit, open circuit, dc voltage, overheating, rf, ultra-low frequency protection
Power specifications: ac 220 v (+ / - 10%) of 50-60 hz
Case size : 510mm x 90mm x 480 mm
Packing size: 580mm x 180mm x560 mm
net weight: 12 kg
Gross weight: 20 kg
Payment methods1.T/T;2.Western Union;3.Money Gram;4.Cash.Transportation methods1. By air to airport;2. By sea to seaport;3. By Express door to door, DHL, TNT, FEDEX, UPS, EMS etc. Our service:Pre-sale ServiceA. Quality is our company's culture.B. Reasonable price and reliable service.C. Rich experience of design, manufacture and sell Pro-audio, Speakers, amplifiers, etc.Middle-sale ServiceA. Checking the most suitable shipping ways for customers.B. Testing quality again before sending goods.C. Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goodsAfter-sale serviceA. We are very glad that customer give us some suggestion for price and products.B. If you have any question, please contact with us freely by E-mail or Telephone.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Founded in 2002, we specialized in the manufacturer of high performance professional loudspeakers. In addition to designing and distributing components under the Ganyon brand name, we also supply OEM components to most of the top professional audio brands in the market today.
With more than 65 employees (5% of which are engaged in our Research and Development department), Ganyon Speakers designs, produces and trades all of its products directly from its head office, located in Guangzhou city, Panyu district.
Ganyon Speakers primary line consists of high frequency drivers, coaxial components and cone drivers. We have made a strong commitment to provide a well-balanced line of Low Frequency drivers that range from 6" to 21", as well as a very complete line of High Frequency drivers. We have made refinements in areas such as high frequency diaphragm technology, cone geometry, magnet assemblies, chassis design and much more, to create a dynamic and powerful line-up of components.
Our engineers have optimized each design with fine software to ensure each design operates to its fullest potential time and time again. From nightclubs, to stadiums, to concert halls around the world, our speakers are chosen based on their reliability, consistency and most of all for their outstanding sound quality.
Our Quality Control Department inspects 100% of products.
As for the productions, an automatic check is conducted on Frequency response, Impedance curve, rub & buzz, polarity and T-S parameter of each speaker.
