Dt Copper Crimping Types Cable Terminal Lugs

Name: Dt Copper Crimping Types Cable Terminal Lugs
Brand: all-electronics-online.com
SKU: 715701712
Availability: InStock
Rating: 4.6 (149 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DT
Purity Copper:	99.9%
Finished:	Acid Cleaning or Tin Plated
OEM:	Accept
Sample:	Free
Material:	Copper
Application:	Conduct Electricity
Type:	Crimp Terminal, Lug
Character:	High Conductivity

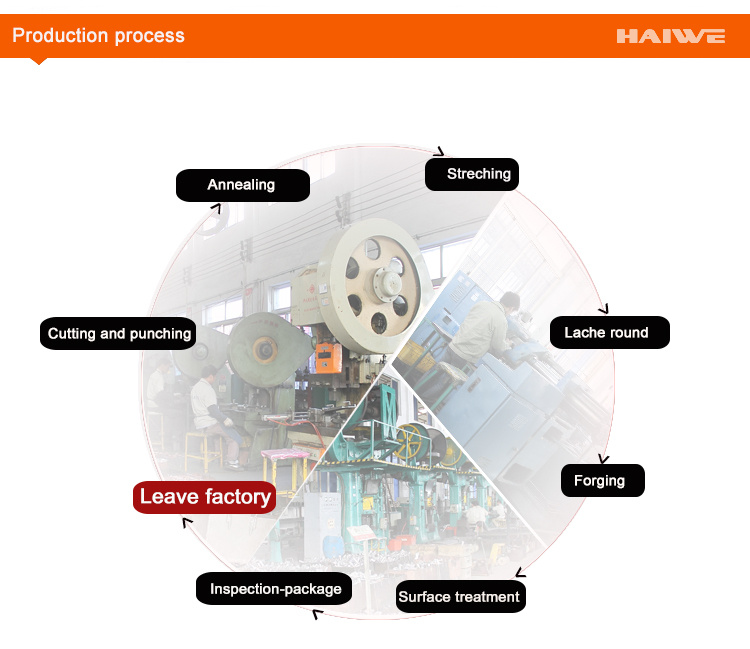

Production Process:	Punching
Shape:	Tubular
Interface Type:	Crimpimg
Certification:	SGS
Brand:	Haiwe

Product Description

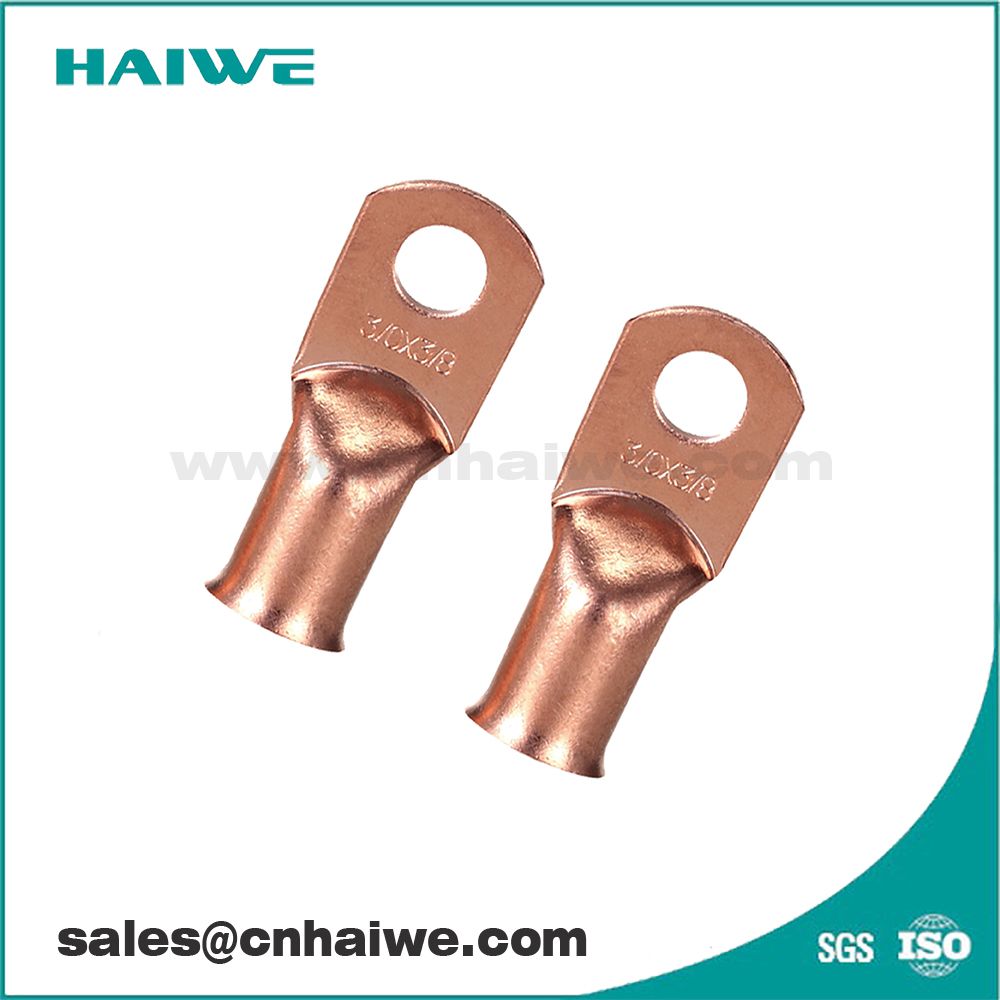

DT Copper Crimping Types Cable Terminal Lugs

Technical Requirements
Material:
Copper,Good conductivity

Marking:
The marking should be clearly,well-proportioned

Surface Treatment:
Acid cleaning,bright or tin plated

Product Property :
It is used to connect the copper conductor end

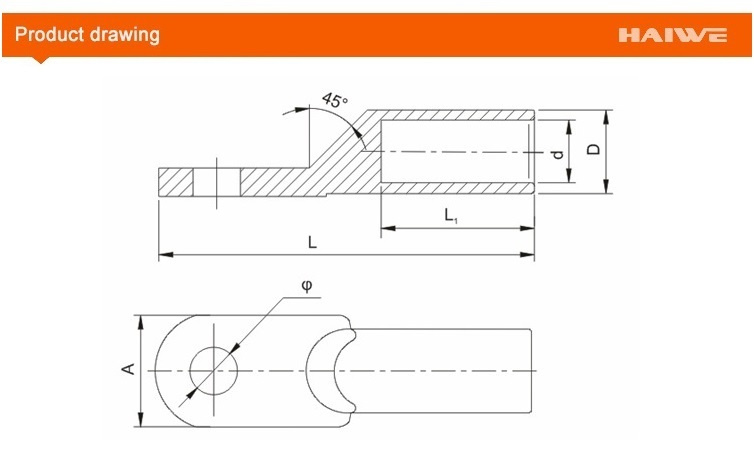

Type No.	Main Dimensions(mm)
Type No.	D	d	L	L1	A	Φ
DT-10	9	5.5	66	30	16	8.4
DT-16	10	6	67	31	16	8.4
DT-25	11	7	70	34	18	8.4
DT-35	12	8.5	79	36	20	10.5
DT-50	14	9.6	87	40	23	10.5
DT-70	16	12	95	44	26	12.5
DT-95	18	13	105	47	28	12.5
DT-120	20	15	112	50	30	14.5
DT-150	22	16	118	54	34	14.5
DT-185	25	18	125	56	38	16.5
DT-240	27	20	136	60	42	16.5
DT-300	30	23	160	65	48	21
DT-400	34	26	165	70	54	21
DT-500	38	29	190	75	64	21
DT-630	45	34	220	85	78	-
DT-800	50	38	257	85	100	-

FAQ
1. How to buy your ideal products?
A: You can provide us your drawings, and we will produce it as per your drawings. Or we can design it if you do not have a clear plan.

2. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.

3. What is the delivery time?
A: It depends on order quantity.Generally, the delivery time will be within 15 to 30 days.

4. Package information
A:For inner box and master carton are made as per international standards,and we can make special designed for you if need.And if necessary,will be packed in pallet to avoid any damage.
B:Not more than 35kg per carton box,about 1000kg per pallet

5.How long to make a sample?Is it free?
A:7 days depending on the sample's complexity.Normally,our sample is free

6.How to cantact us?
A:Send your inquiry details in the below,Click "send" now!

Our Services

Service
1.Thousands of products in stock and ready to ship.
2.The most competitive pricing
3.Free shipment container loading
4.Putting the customer's nees first,always
5.On call,24 hours a day,7 days a week

Haiwe electric Co., Ltd was established in 2007, is China's leading Manufacturer- Exporter of wide range of components used in power transmission and distribution lines & Equipment building industries, and We are pleased to introduce ourselves as a pioneer of power fitting, Distribution fitting, Overhead transmission line, Electrical Substation line Overhead insulation fitting etc. As per customers specifications and drawings.

The company's main customer base is made up of Distributors / Wholesalers of Electrical Products, Electrical Contractors & Installers, Equipment manufacturers, Maintenance companies and Government authorities. And has successfully exported our products to Southeast Asia, South America, MID East, Africa etc.

We aim to deliver products with "Zero" defects with very optimum prices, to assure this Haiwe has achieved.

As you browse through our website, we hope you will find what you are looking for. If not, just send us your inquiry or give us a call. If it is relevant to our line of work, we will be happy to provide a solution.
