Dual Cable/ Twin Cable CCTV Coaxial Cable (RG59)

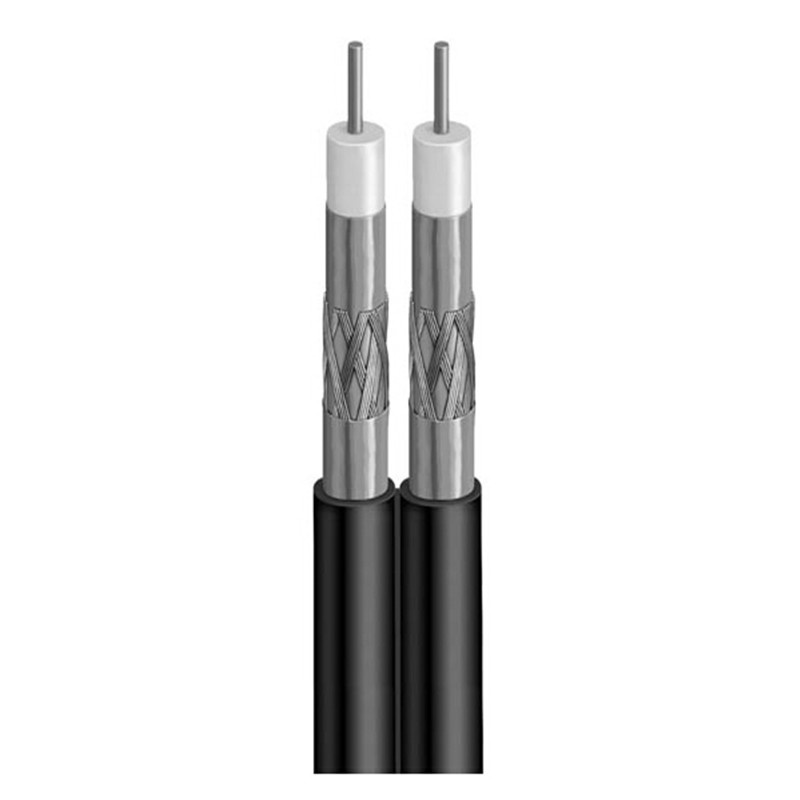

Name: Dual Cable/ Twin Cable CCTV Coaxial Cable (RG59)
Brand: all-electronics-online.com
SKU: 739852035
Availability: InStock
Rating: 4.9 (31 reviews)

Price:	US $ 0.01-1.5/Meter
Trade Terms:	FOB
Min Order:	10000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG59D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Bc/CCS
Insulation:	Foam PE
Shield:	Al Foil+Al-Mg Braid
Jacket:	PVC
Application:	RF Cable
Cover Material:	PVC
Certification:	RoHS
Conductor Material:	Bc/CCS
Type:	Coaxial
Wire Core Material:	Bc/CCS

Product Description

Dual Cable/ Twin Cable CCTV Coaxial Cable RG59

This 75 Ohm RG59 coaxial cable can be fixed with kinds of connectors,such as F,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to existing and next generation TV network , dish antenna,security monitoring and control systems.
Features:
1).75 Ohm data signal transmission;
2).The inner conductor could be Copper Clad Steel or Bare Copper;
3).The insulation is foam PE or solid PE;
4).Customized cable color , winding and connector, meet your different requirements;
5).RoHS compliant;

Dual Cable RG59
Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper / Copper Clad Steel		0.81
Dielectric	Foam PE		3.66
First Shield	Boned Aluminum Foil		3.80
Seond Shield	AL-Mg Wire Braid		4.20
Jacket	PVC/ PE		6.10

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	75	@100MHz	12.1
Velocity of Propagation(%)	66	@200MHz	18.4
Return Loss(dB)	≥20	@400MHz	25.0
Capacitance	67.2	@600MHz	32.2
Shielding Effectiveness(dB)	≥85	@860MHz	37.6
Operating Temperature(ºC)	-25 to +70	@1000MHz	41.5

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
