Dual Camera Fuel Sensor Heavy Vehicle GPS Tracker for Engine Immobilization

Dual Camera Fuel Sensor Heavy Vehicle GPS Tracker for Engine Immobilization
Price: US $ 60-70/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: VT1000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Free Tracking Platform: Yes
Warranty: Two Years
CPU: Arm 7 High Speed Processor
GSM Module: Legal IMEI & Ce Certificate
RS232 & RS485: Support
Oil Leaking Or Refuel Alarm: Support
Check Car Door Status: Support
Harsh Braking And Harsh Acceleration Ala: Support
4 Camera: Support
Detect Oil Value: Support

Product Description

Dual Camera fuel sensor Heavy Vehicle GPS Tracker for Engine Immobilization
(2 years warranty, Free Tracking Platfrom (web base & Android),CE & RoHS & SGS certification)


Products Overview

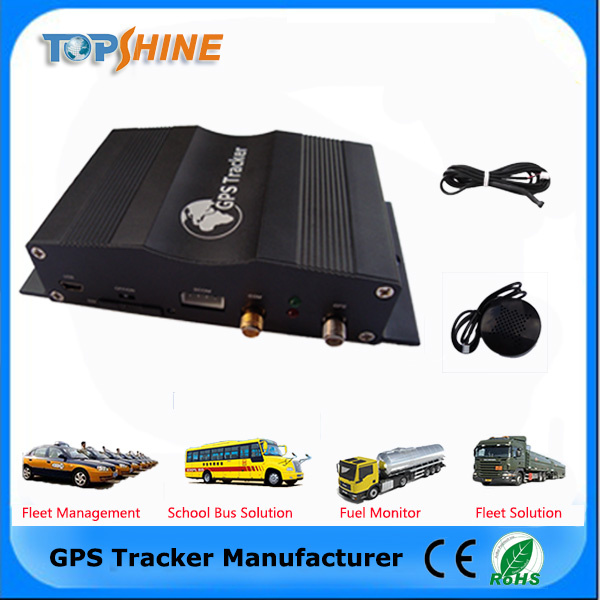

Camera fuel sensor GPS tracker VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM7 high speedy microprocessor; Supporting camera (location&driving information log on picture); Bidirectional communication; Support max 64GB SD card for storing data and pictures; 4 A/D connectors for multi fuel sensor monitoring; Support unique active RFID for automatic anti-theft and driver identification; And many useful functions and extensibility for fleet management and vehicle security purposes.



Application

* For vehicle tracking and security
* Intelligent fleet management
* Two way communication
* Camera monitoring
* Anti jamming
* 2G 3G 4G tracker



Specification

Technical Parameters:
Power Supply+9V - +35V / 1.5A
Backup Battery850mAh

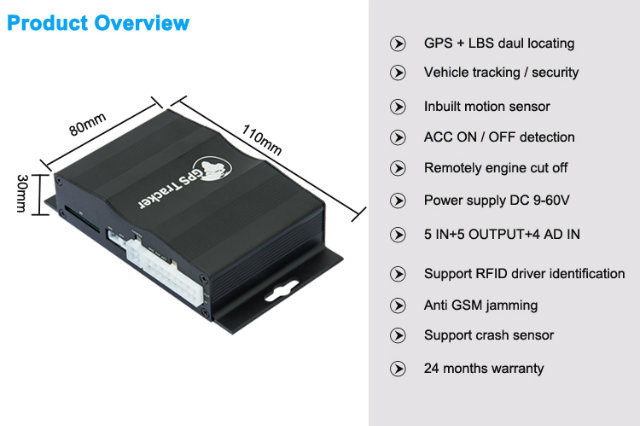

Dimension104mm x 62mm x 24mm
Weight150g
Operating temperature-20° to 65° C
Humidity5% to 95% Non-condensing
2G GSM Frequency850/900/1800/1900Mhz
3G GSM FrequencyVersion A: UMTS/HSDPA 850/1900MHz
Version E: UMTS/HSDPA 900/2100MHz
Version T: UMTS/HSDPA 850/2100MHz
GPS Modulelatest GPS SIRF-Star III chipset
GPS Sensitivity-158Db
GPS FrequencyL1, 1575.42 MHz
C/A Code1.023 MHz chip rate
Channels20 channel all-in-view tracking
Position Accuracy10 meters, 2D RMS
Velocity Accuracy0.1 m/s
Time Accuracy1 us synchronized to GPS time
Default datumWGS-84
Reacquisition0.1 sec., average
Hot start1 sec., average
Warm start38 sec., average
Cold start42 sec., average
Altitude Limit18,000 meters (60,000 feet) max.
Velocity Limit515 meters/second (1000 knots) max.
LED2 LED lights to show GPS/GSM working status.
Flash Memory4MB
Interface5 digital inputs
5 outputs
2 analog inputs
1 camera port
1 speaker port
1 microphone port
1 RS232/RS485 port
1 USB port




Feature

Support 2G 3G 4G network    Fuel stolen alarm
GPS tracker + RFID car alarm  Harsh braking / acceleration alarm
GSM jamming detection, anti jamming  With 850mAh inbuilt rechargeable battery
Ublox7 GPS industrial high sensitive moduleTwo way tracking, GPS/intelligent GSM positioning
OTA (Update software over the air firmware by SMS)Powerful and multifunctional tracker for comprehensive Fleet management
Inbuilt 4MB data logger for saving position when in GSM/GPRS blind areaGet real time vehicle position address street name /Google map link by SMS
SD card data logger (Optional) Crash sensor for accident alarm  (Optional)
Max 4 fuel sensors, monitor petrol level   (Optional)  OBD2 connector to read DTC data from ECU car computer (Optional)
Max 4 cameras, Photo logger function with location & driving information  (Optional)Active RFID / Passive RFID / Smart phone RFID for anti-theft and driver(student) ID identification function   (Optional)
 Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etccut off engine remotely ,unlock lock vehicle door


Package & Accessories

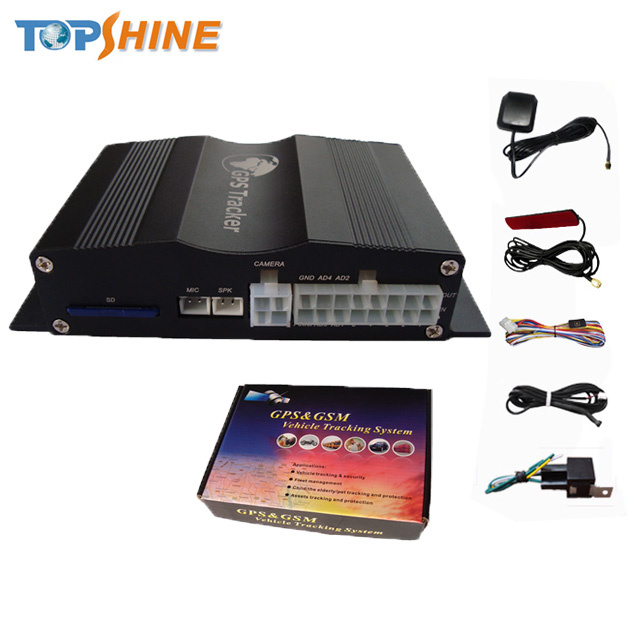

Standard accessories
* Main unit VT1000
* GSM antenna
* GPS antenna
* 16PIN Wiring
* SOS button
* 12V /24V Relay

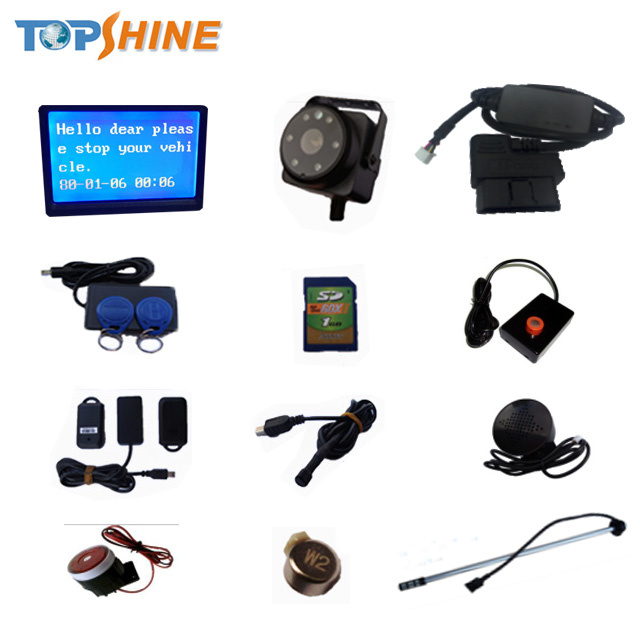

Optional accessories
* Camera
* Ultrasonic fuel sensor
* Cuttable fuel sensor
* Temperature sensor
* Passive RFID kit
* SD card
* Crash sensor
* Smart phone reader
* OBDII connector
* Door sensor
* Alcohol Sensor


Packing Measures:
NeutralDimension (mm)Weight (KG)Capacity
Box225x160x550.651 set
Carton470x340x3101420 sets

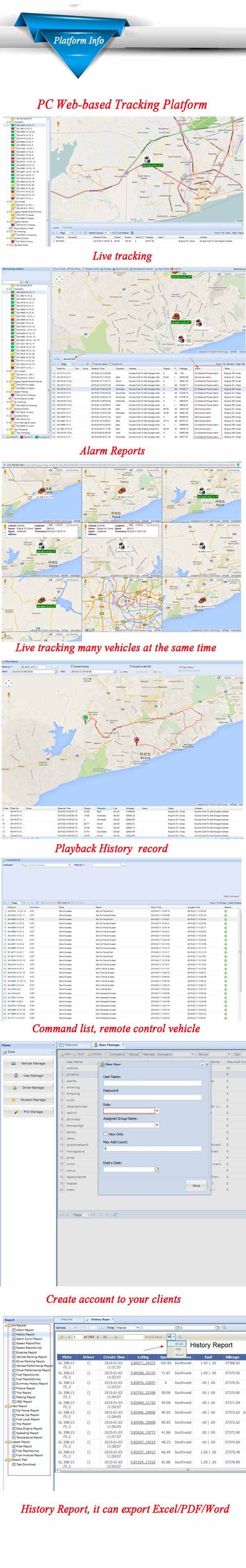

Topshine company provide free tracking software, no any monthly or yearly charge.

PC: www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: hongkong
Password: 123



Our advantage

* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.



Payment & Shipment

Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.






FAQ

Q: Why the tracker can't be switched on?
A: 1. Check if wiring is correct or not.
    2. Charge the tracker.

Q: No response to SMS command
A: 1. Wrong password. Please check your password.
    2. No GSM mobile signal or weak GSM network. Try later.
    3. Out of SIM credit. Please pop up.
    4. SIM is damaged. Change a sim card.
    5. SIM card is without sending function. Change a SIM or enable SMS sending function.
    6. SIM card isn't installed properly.

Q: Why there is a "Last" appearing in a positon report SMS?
A: There is no GPS signal. Please take the tracker to somewhere open area.

Q: How to use tracking platform?
A: 1. Set GPRS parameter in Parameter.exe.
    2. Set GPRS parameter by SMS.
        (1) Set tracker ID: W,010,ID
        (2) Set APN: W,011,APN name
        (3) Set IP and Port: W,012,210.209.68,9600
        (4) Enable GPRS: W,013,1
        (5) Set report time interval: W,014,00000
        (6) Open link www.global-track and create vehicle info in Manage - Vehicle Manage

Q: How to connect Relay to cut off engine?
A: Cut off fuel pump wire, connect green wire of relay with fuel pump line, connect yellow wire with relay yellow wire, connect white wire with 12V power supply line.
