| Prod Model: |
View Star Series 10-30Kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transfer Time: |
Zero |
| Output Voltage: |
208/220/230/240VAC |
| Frequency Range: |
46~54 Hz or 56~64Hz |
| Nominal Voltage: |
3 X 400 VAC (3pH+N) |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description
Dual Conversion Online UPS For Vending Machines with IGBT
Quick Read
1: UPS with SNMP/USB/RS-232 communications port
2: UPS with adjustable battery numbers
3: UPS with Intelligent high power battery charger
4: UPS with Fully digitalized and multi-CPU control
5: UPS with smart and compact design, high efficiency and low noisy
Key Features
1)Intelligent detecting function
2)DSP technology guarantees high performance
3)Pure sine wave output, true on-line dual conversion design
4)Active input power factor correction 0.99
5)Active input power factor correction (PFC)
6)Optional Remote Emergency Power Off (REPO)
7)USB+RS232+RJ45+SNMP,multiple communication for 1-3K models
8)Precision Output Voltage Regulation
9)Full Protection: Overload, Over Voltage, Short Circuit, Over Temp. etc.
10)perfect for the most demanding and delicate of applications
11)3 phase online double convertion ups guarrantees ups stable power solution for IT data-center
12)3 phase pure sine wave ups adopts full digitalized dsp-based Ti high performance micro-processor control for reliability
Applications:
Automation systems,Data processing systems,Renewable energy systems (solar, wind and hydro-electric),Emergency lighting systems,solar energy,wind energy,ship,satcom equip,communication,water pump,microwave oven,squeezer,air-condition,fridge,mower,soybean milk maker,etc
Technical Specification
VIEW STAR SERIES ONLINE UPS SELECTION GUIDE |
| MODEL | VS31 10K (L) | VS31 15K (L) | VS31 20K (L) | VS31 30K (L) |
| PHASE | 3 phase in / 1 phase out |
| CAPACITY | 10000 VA / 8000 W | 15000 VA/12000 W | 20000 VA/16000 W | 30000VA/24000W |
| INPUT | | |
| Nominal Voltage | 3 x 400 VAC (3Ph+N) |
| Voltage Range | 305-478 VAC (3-phase) @ 100% load
190-520 VAC (3-phase) @ 50% load |
| Frequency Range | 46~54 Hz or 56~64Hz |
| Power Factor | >= 0.99 @ 100% load |
| OUTPUT |
| Output Voltage | 208/220/230/240VAC |
| AC Voltage Regulation (Batt. Mode) | ± 1% |
| Frequency Range (Synchronized Range) | 46~54 Hz 50 Hz / 56~64 Hz 60 Hz |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 (Max) |
| Harmonic Distortion | Less than 2 % THD (Linear Load)
Less than 5 % THD (Non-linear Load |
| Transfer Time | AC Mode to Batt. Mode | zero |
| Inverter to Bypass | zero |
| Waveform (Batt. Mode) | Pure Sine Wave |
| EFFICIENCY |
| AC Mode | 89% | 89% | 89% | 90% |
| Battery Mode | 86% | 88% | 87% | 89% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 9 AH |
| Numbers | 16 pcs | 16 pcs x 2 strings | 16 pcs x 3 strings |
| Typical Recharge Time | 9 hours recover to 90% capacity |
| Charging Current (max.) | 1A | 2A | 2A | 2A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
| Long-run Model | Battery Type | Depending on the capacity of external batteries |
| Numbers | 16pcs(192V) | 16pcs(192V) | 16pcs(192V) | 20pcs(240V) (18-20adjustable) |
| Charging Current (max.) | 4A | 4A | 4A | 12A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
| INDICATORS |

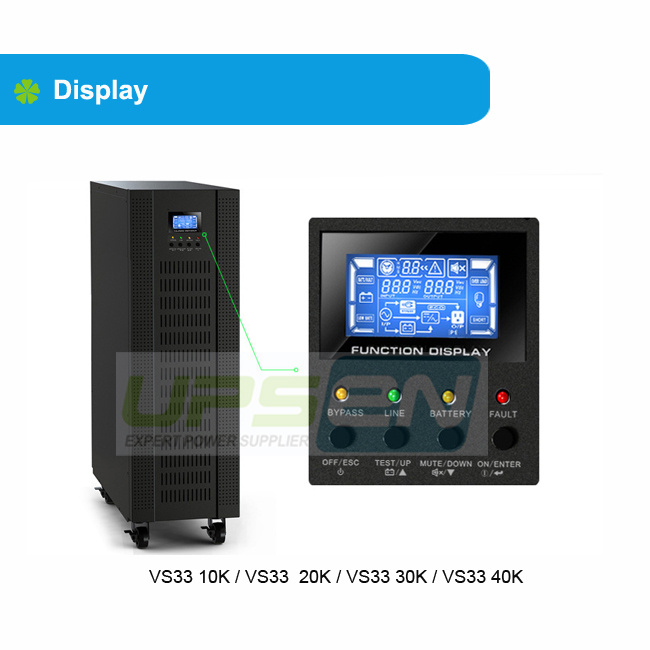

| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Standard Model | Dimension, D X W X H (mm) | 592 X 250 X 576 | 815 x 250 x 826 | 815*300*1000 |
| Net Weight (kgs) | 83 | 164 | 234 |
| Long-run Model | Dimension, D X W X H (mm) | 592 X 250 X 576 | 592 X 250 X 576 | 815 x 250 x 826 |
| Net Weight (kgs) | 28 | 40 | 64 |
| ENVIRONMENT |
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 58dB @ 1 Meter | Less than 60dB @ 1 Meter | Less than 65dB @ 1 Meter |
| MANAGEMENT |
| Smart RS-232 | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC |
| USB |
| Optional SNMP | Power management from SNMP manager and web browser |
* Long-run model is only available in 200/208/220/230/240VAC systems.
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
