Dual Elements PIR Motion Sensor with EMI (D204B)

Name: Dual Elements PIR Motion Sensor with EMI (D204B)
Brand: all-electronics-online.com
SKU: 786257805
Availability: InStock
Rating: 4.8 (58 reviews)

Price:	US $ 0.4-0.8/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	D204B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Pyroelectronic Sensor
Receiving Electrode:	2 Elements
Spectral Response:	14um
Encapsulation Type:	to-5
Model Number:	D204b
Window Size:	12mm
Usage:	Infrared Sensor

Product Description

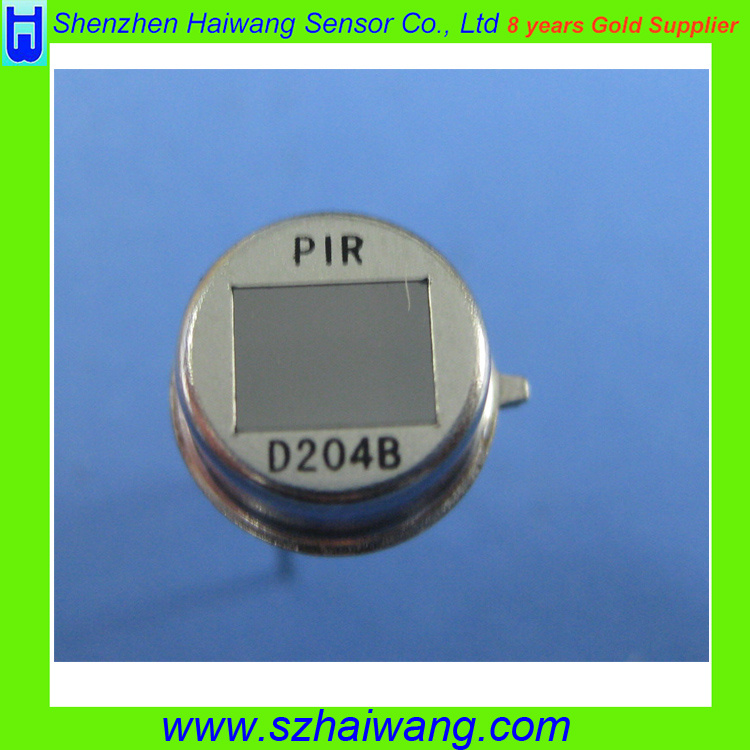

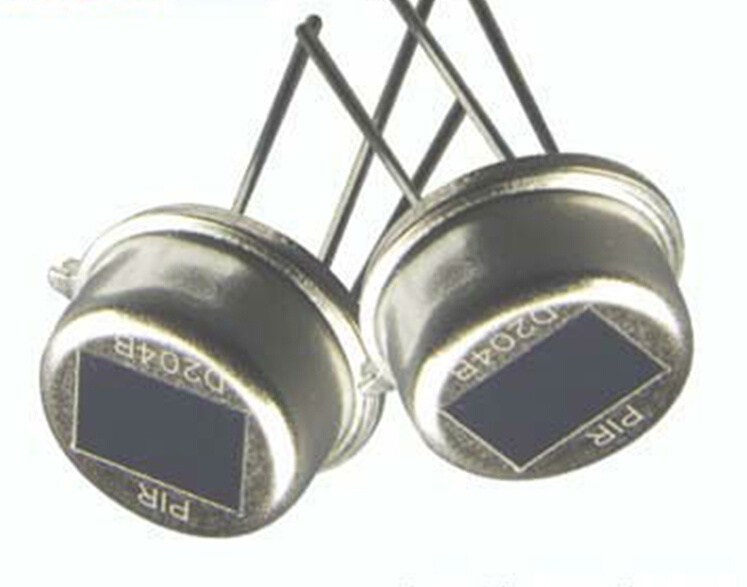

Dual elements pir motion sensor with EMI(D204B)

Product Introduction

PIR Motion sensor detects infrared radiation on the basis of the characteristics that the polarization of pyroelectric material changes with temperature.
Dual compensated sensing elements are applied to suppress the interference resulting from temperature variation with the EMI components.As a result, the operating stability of the sensor is greatly improved.

The PIR Sensor is widely used in security systems, burglar alarms, visitor acknowledgement, light switch control and intellectualized toy, etc.

The pyroelectric infrared sensor detects infrared radiation on the basis of the characteristics that the polarization of pyroelectric material changes with temperature.

Application:
Sensor light
light switch control
intellectualized toy, etc
security systems, burglar alarms,
IA Intelligence Appliance, visitor acknowledgement
Specification:

Recommended Model	D204B big window
Encapsulation Type	TO-5
IR Receiving Electrode	2*1mm, 2 elements
Window Size	5*3.8mm
Spectral Response	5-14µm
Transmittance	≥75%
Output Signal[Vp-p]	≥3500mV
Sensitivity	≥3300V/W
Detectivity (D*)	1.4 ×108 cmHz1/2/W
Noise[Vp-p]	<70mV
Output Balance	<10%
Offset Voltage	0.3~1.2V
Supply Voltage	3-15V
Operating Temp	-30-70ºC
Storage Temp	-40-80ºC
