Dual Fiber Glass Ferrule
| Price: |
US $ 1/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
HH ferrule 10 |
| Item: |
Dual Glass Fiber Ferrule |
| Kind: |
Lead, Soda Lime, Borosilicate Glass |
| Size: |
Diamater 0.5-7.0mm |
| Use: |
Electronic Package and Envelope |
| Packing: |
Bag, Box, Carton |
| Payment: |
T/T, LC, Paypal |
| Shipment: |
by Sea, by Air, by Courier |
| Delivery Time: |
20 Days |
| MOQ: |
5000PCS |
| Samples: |
Available Upon Request |
| Transmission Medium: |
Multimode |
| Structure: |
DIN |
| Number Of Cores: |
Multi-Core |
| Ferrule Endface: |
FC |
Product Description

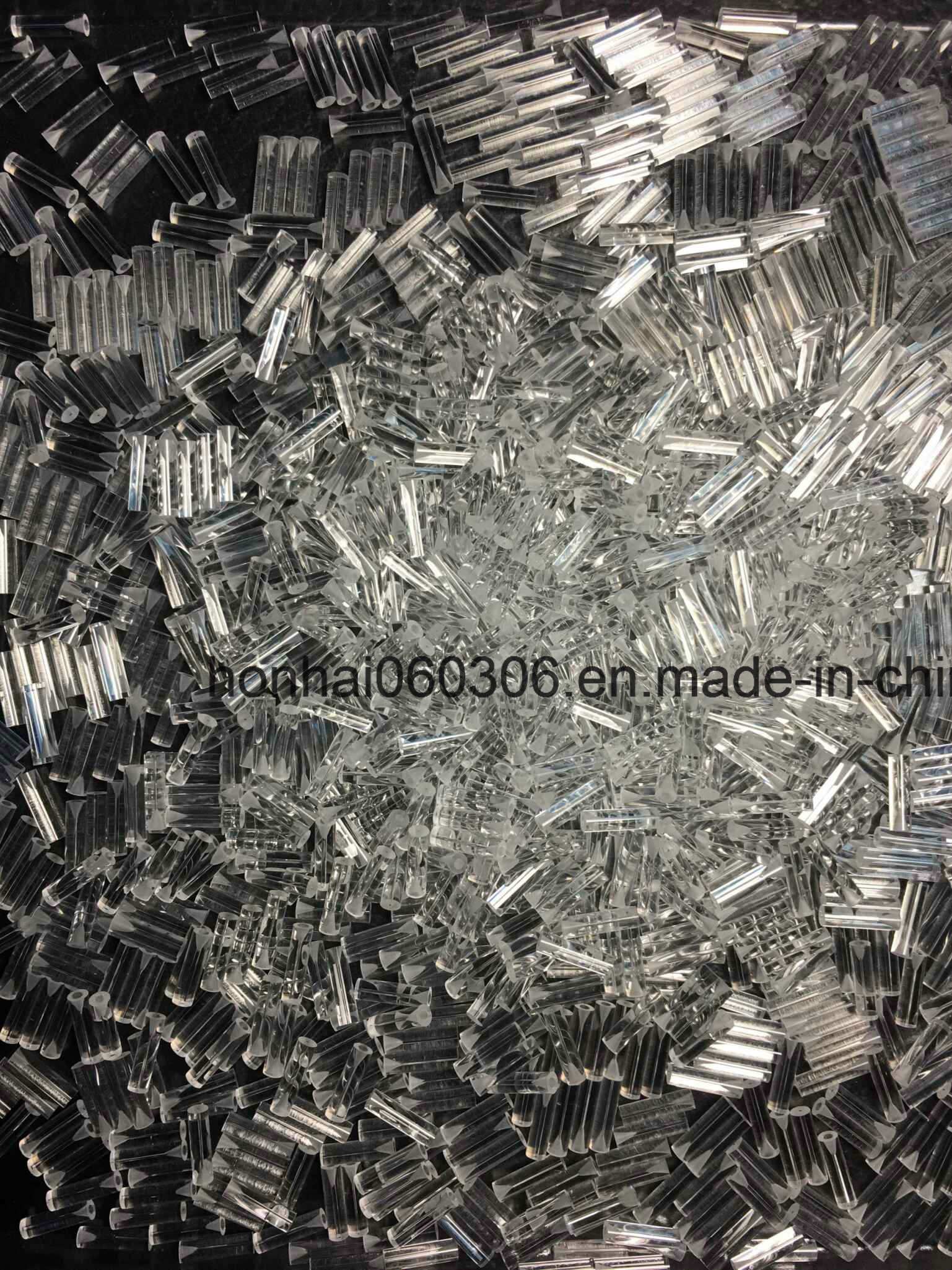

dual glass fiber ferrule
Glass Fiber Optic FerrulesWhether a single fiber is terminated at a device or joined to another fiber, a ferrule or connector of some type is commonly used. These must be high precision parts that ensure the fiber is optimally aligned. If this is not the case, the light signal will be scattered and the signal will be dampened or lost. Therefore, fiber optic ferrules perform a critical role in the use of fiber optics in today's world.
Precision drawn borosilicate glass tubing made by us is used in connector ferrule applications. The tubing can be manufactured through our conventional direct draw process or via our redraw process. The tubing can be precision cut to length using a process which employs diamond blades.
Polishing the end of the fiber is a critical element and can greatly impact the quality of the installation.
| SN | OD(mm) | ID(mm) | Length(mm) |
| 1 | 1.01±0.03 | 0.31±0.04 | 11.2±0.1 |
| 2 | 1.6+0.01 | 1.005+0.01 | 4±0.1 |
| 3 | 1.796±0.005 | 0.95±0.05 | 4.9±0.1 |
| 4 | 1.8±0.01 | 1.025±0.005 | 4.0±0.1 |
| 5 | 2.2±0.01 | 1.025±0.005 | 4.0±0.1 |
| 6 | 2.2±0.005 | 1.6±0.01 | 4.0±0.1 |
| 7 | 2.76±0.01 | 1.81±0.005 | 9.0±0.1 |
| 8 | 2.78±0.01 | 1.81±0.005 | 8.0±0.1 |
| 9 | 2.78±0.03 | 1.885±0.015 | 8.5±0.1 |
| 10 | 2.976±0.01 | 1.808±0.04 | 12±0.1 |
| 11 | 3.0±0.1 | 2.0±0.03 | 19±0.1 |
| 12 | 3.0±0.05 | 1.8+0.05 | 4±0.1 |
| 13 | 3.05±0.01 | 1.81±0.005 | 8.0±0.1 |
| 14 | 3.2±0.02 | 1.812±0.005 | 9.0±0.1 |
| 15 | 3.3±0.1 | 1.81±0.005 | 3.0±0.1 |
| 16 | 3.3±0.05 | 2.07±0.06 | 7.5±0.02 |
| 17 | 3.37±0.02 | 2.812±0.005 | 9.0±0.1 |
| 18 | 3.5±0.02 | 1.81±0.005 | 4.7±0.1 |
| 19 | 3.5±0.1 | 2.5+0.05 | 3.5±0.1 |
| 20 | 3.6±0.05 | 3.0+0.05 | 9±0.1 |
| 21 | 3.7±0.02 | 1.81±0.005 | 4.7±0.1 |
| 22 | 3.7±0.05 | 2.607±0.005 | 4.7±0.1 |
| 23 | 4.0±0.01 | 2.415±0.005 | 11.5±0.02 |
| 24 | 4.1±0.05 | 2.807±0.005 | 4.7±0.1 |
| 25 | 4.13±0.03 | 2.88±0.02 | 16±0.1 |
| 26 | 4.1±0.1 | 2.8+0.05 | 3±0.1 |
| 27 | 4.2±0.05 | 2.93±0.01 | 17.0±0.1 |
| 28 | 4.4±0.02 | 1.8±0.02 | 1.9±0.1 |
| 29 | 4.45±0.05 | 3.3±0.01 | 16±0.1 |
| 30 | 4.6±0.02 | 3.05±0.007 | 15±0.1 |
| 31 | 4.6±0.03 | 3.6±0.02 | 19±0.1 |
| 32 | 4.9±0.02 | 3.1±0.02 | 5±0.05 |
| 33 | 6.8±0.03 | 4.04±0.02 | 4±0.1 |
| 34 | 9.9 | 6.84±0.03 | 3±0.1 |
Table3- Application of the electric light sources
(BJ-40 and molybdenum glass group)
| SN | OD(mm) | ID(mm) | Length(mm) |
| 1 | 1.60±0.03 | 0.90±0.03 | 10±0.2 |
| 2 | 2.0±0.05 | 0.8±0.01 | 20 |
| 3 | 2.6±0.05 | 0.8±0.05 | 1000 |
| 4 | 2.94±0.03 | 2.0±0.01 | 20±0.1 |
| 5 | 3.0±0.1 | 0.7±0.02 | 9.1±0.1 |
| 6 | 3.15±0.03 | 2.0±0.01 | 1100 |
| 7 | 4.55±0.1 | 0.7±0.05 | 19.1±0.1 |
| 8 | 5.55±0.1 | 0.75±0.05 | 19.1±0.1 |
| 9 | 6.0±0.05 | 5.0±0.01 | 170 |
| 10 | 3.0±0.03 | 2.0±0.02 | 1000 |
ShanDong HonHai Industrial Group Company Limited who produces and supplies borosilicate glass tube, rod and its related glassblowing articles, glass ceramic, borosilicate glass sheets, borosilicate moulded glassware, pharmaceutical glass packaging, lamp lighting glass shell and daily consumer glassware. Jinan HonHai Glass Company Limited, as a member of ShanDong HonHai Industrial Group Company Limited, is handling international business of the whole group.
Ø Division for borosilicate glass tube, rod and its related glassblowing articles
We started to manufacture borosilicate 3.3 colored and clear glass tubing, rod (Vello & Danner) and its related glassblowing articles since 1994 through importing Japanese NEG's and Germany equipment & technology. Now we have annual capability to draw glass tube over 150, 000 metric tons, which makes us the leading Chinese manufacture in this field. Thanks to our continous process improvements, we have been drawing glass tube with highly precise dimensions in China.
We also redraw (secondary processing on tubing) high precision bore glass & quartz tube for optoelectronic, fibre optics telecommunication, medical and other special applications.
Besides, we make scientific laboratory glassware, heat resistant glass tea & coffee sets, glass bong water pipes, glass baby feeding bottles, lamp glass shell and others glassblowing products.
Ø Division for borosilicate moulded glassware
Due to our expertise in electrically melted glass furnaces control technology, we set up a new factory in the year 2001 to make heat resistant baking dishes, Casseroles, food storage glass jars and others that are oven, microwave, freezer (refrigerator), dishwasher free.
Now we have annual capability around 5, 000 metric tons.
Ø Division for pharmaceutical glass packaging
From the year 1996 we enter into pharmaceutical glass packaging industry, produce neutral borosilicate pharmaceutical glass tube USP TYPE I, tubular glass vial & ampoule, glass cartridge, glass prefillable syringes.
Now we have annual turnover around US dollar thirty million.
Ø Division for lamp lighting glass
In the year 1999 we set up factory for making lamp lighting glass including soda lime glass tube, lead glass tube, lead free glass tube, lamp & lantern glass cover/shade/shell/globe/chimney
Ø Division for daily consumer glassware
In the year 2005 we expanded our production to make glass cosmetic containers, glass kitchenware and Tableware.
Particularly, we've successfully developed flat borosilicate 3.3 floated glass sheet and glass ceramic which enjoys a good reputation in the United States and Europe.
Our factories are equipped with advanced machinery with production know-how, strict and complete quality management and supervision system as well as friendly customer service. Holding a business principle of "Honesty, Cooperation, Win-Win", we concentrate on continuous quality improvement and upgrade. We take it as our responsibility to satisfy customers' requirements, and innovate market demand.
We well know about glass and respect customers' requests. We will improve, upgrade and innovate products all the time.
Let us rethink, rediscover and reinvent glass!
