Dual LED Light Arb Carling Style Rocker Switch Laser Engraved Symbol

Name: Dual LED Light Arb Carling Style Rocker Switch Laser Engraved Symbol
Brand: all-electronics-online.com
SKU: 765605775
Availability: InStock
Rating: 4.3 (57 reviews)

Price:	US $ 3-3.5/Piece
Trade Terms:	FOB,CPT,FCA
Min Order:	100/Piece
Pay Type:	T/T,D/P,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Rocker Switch -416
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Maiyu
Max. Voltage:	24V
Max. Current:	20A
LED Color:	Optional
Material:	ABS
Approvals:	CE,RoHS
Operating Voltage:	20A/12V -10A/24V DC
Waterproof Rating:	IP65
Switch Type:	on-off-on
Size Of Drill:	37.2 X21.2mm
Usage:	Toys
Standard:	Standard
Lamp:	With Lamp
Color:	Black
Certification:	CE
Condition:	New

Product Description

3 Position Car 12V/24V Dual LED Laser ARB Carling PIN 4 Rocker Switch Control

Material: ABS & Environmental anti-retardant materials

Case Color: Black

LED Light Color: Blue

Waterproof Rating: IP65

Number of LED light : 2 LED light

Quantity: 1 pc

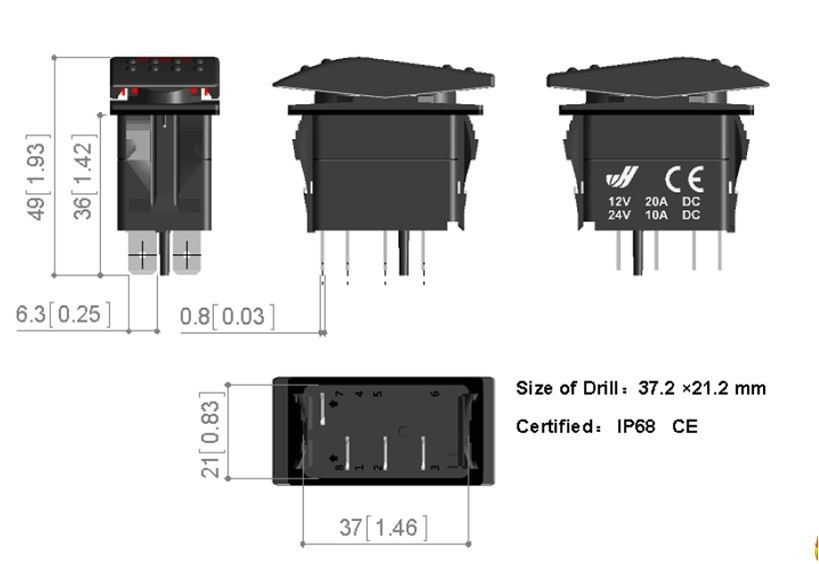

Dimension:53x44x24mm

Size of Drill:37.2 x21.2mm

Switch type: 3 Positions On-Off-On

Operating Voltage: 20A/12V -10A/24V DC

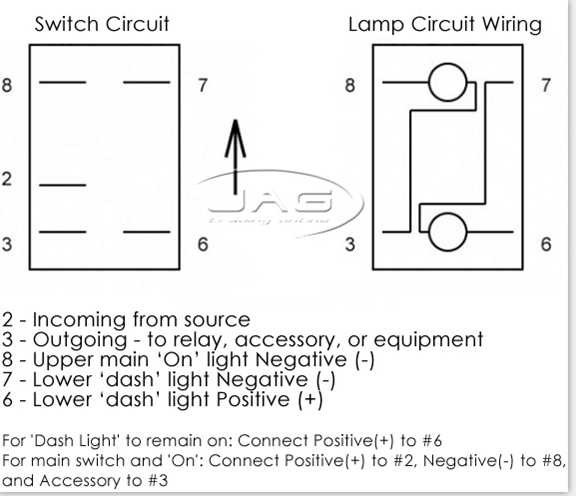

Pin:4 (means 4 cable connector :2 for negative & 2 for positive )

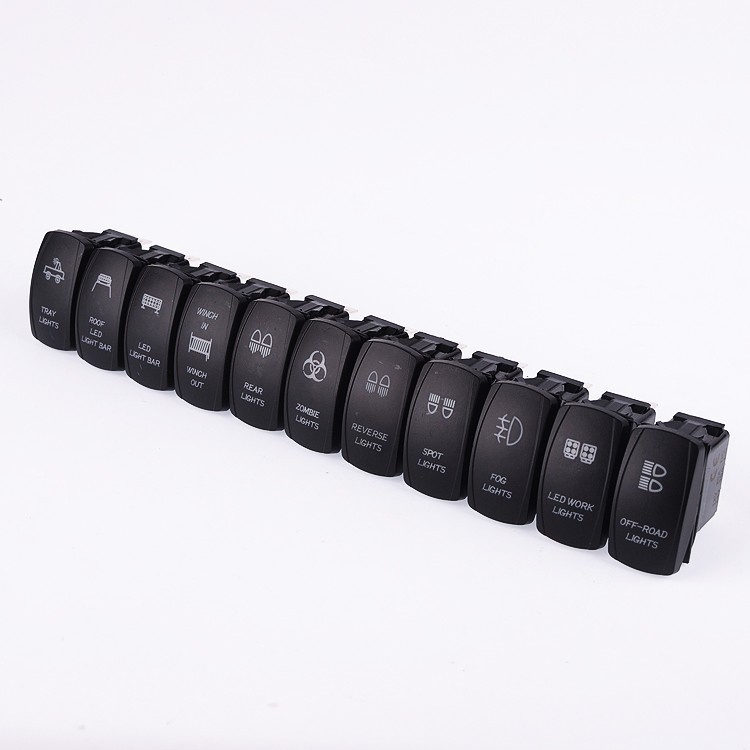

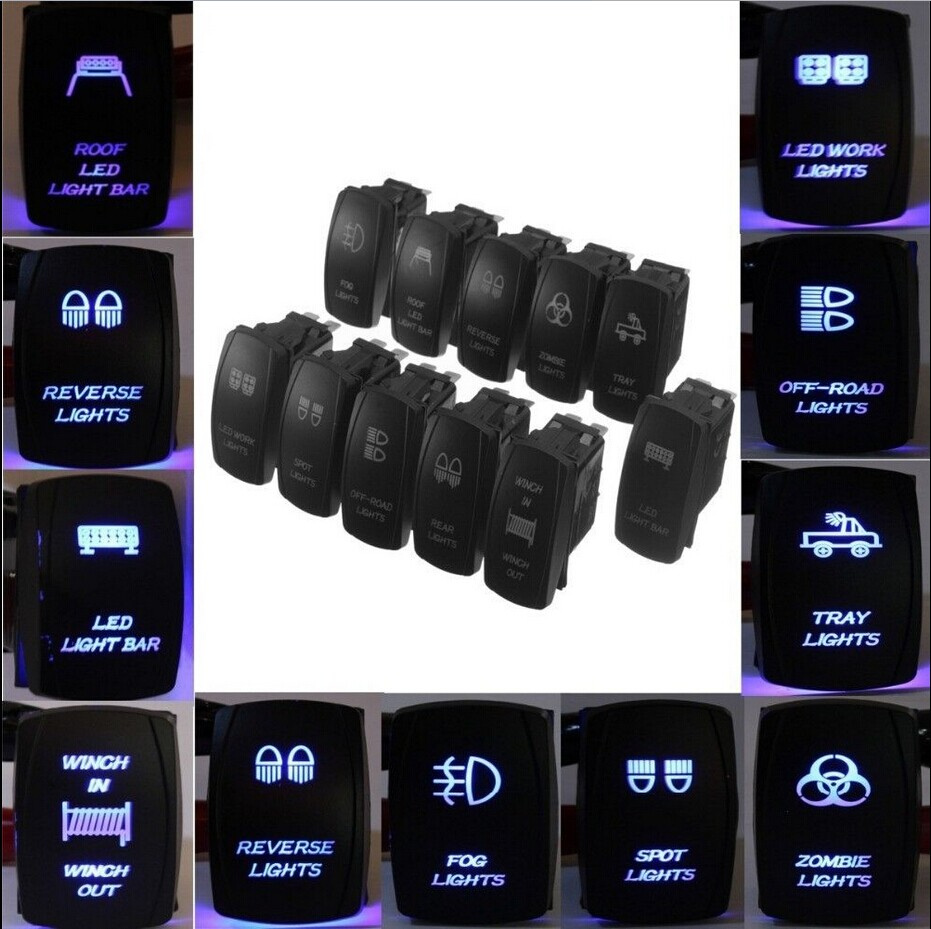

11 Patterns(type):LED Light Bar / Reverse Light / Spot Light / Tray Light / Zombie Light / Rear Light / winch Out / Off-Road Light / LED Work Light / Fog Light / Roof LED Light Bar (Please us message which type you want ,thank you )

Features :

Ultra-high-end luxury switch with LED indicator light

anti-retardant materials

12-24v car universal voltage; suitable for conversion control car people all equipment

Output circuit protection, overload protection, reverse polarity protection,multiple protection, safety to use.

Suitable for:

All 12 / 24v car battery installation, such as cars, motorcycles, buses, boats,RVs, boats, trailers, etc.

Package Included:

1 x SPDT 3 Position ON-OFF-ON Rocker Switch
