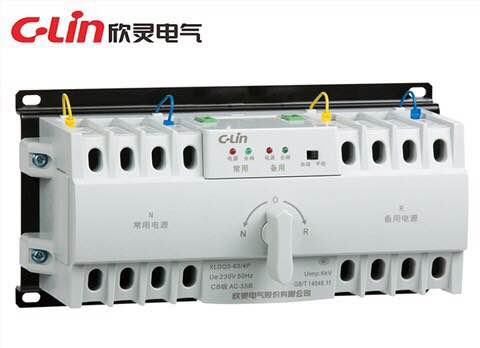

Dual Power Automatic Transfer Switch(XLDQ3)

Name: Dual Power Automatic Transfer Switch(XLDQ3)
Brand: all-electronics-online.com
SKU: 730651372
Availability: InStock
Rating: 5 (140 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XLDQ3
Rated Operational Voltage:	230V/240V
Installation:	vertical
Number Of Poles:	3p/4p

Product Description

Product overview
XLDQ3 series dual power switch design and production of the company's automatic conversion, is a kind of special product development to meet the needs of customers. The product has automatic recovery, since the vote no longer and power generator three conversion function to the three-phase voltage of two power supply were detected at the same time, when any one phase occurs overvoltage, undervoltage, open phase, can be automatically converted from abnormal voltage to normal power supply for power grid; power system products can generate power instruction, is perfect, a safe and reliable performance, high degree of automation, dual power supply for a wide range of self energy switch series products.
The products conform to GB/T140048.11 standard.
Going
1.Ambient air temperature: -5 degrees to 40 degrees, and the average value of 24h is less than 35 DEG C;
2.the atmospheric conditions: the relative humidity of the atmosphere is not more than 50% around the maximum temperature of 40 degrees, at lower temperature can have high humidity, moisture in the monthly average minimum temperature of 25 degrees, the the monthly average maximum relative humidity of 90%, and taking into account the result of condensation temperature change on the surface.
3.The location of the installation elevation altitude: not more than 2000m;
4. the pollution level: the location of the installation of environmental pollution grade 3;
5. Installation: vertical installation;
6. Category:

rated operational voltage	230V/240V
rated operational current	6A,10A,16A,20A,25A,32A,40A,50A,63A
count	3P/4P
work pattern	voluntarily/manual operation
conversion mode	Self voting and self restoring
outline dimension	240125125mm(The same size of the three poles and four poles)
installation size	229*113mm(The same size of the three poles and four poles)
installation	perpendicular
