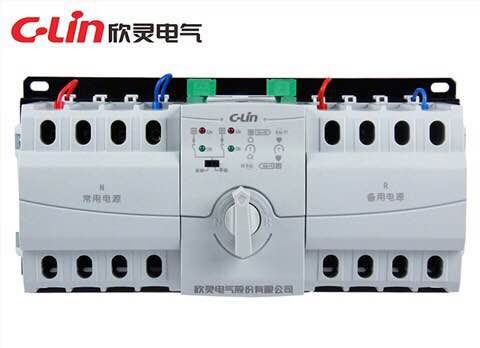

Dual Power Automatic Transfer Switch(XLDQ3NX)

Name: Dual Power Automatic Transfer Switch(XLDQ3NX)
Brand: all-electronics-online.com
SKU: 730610952
Availability: InStock
Rating: 5 (110 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XLDQ3NX
Rated Operational Voltage:	230V/240V
Hole Size:	229*113
Installation:	vertical
Number Of Poles:	3p/4p

Product Description

Product Overview
Xldq3nx-a/b/c/d series dual power switch product overview design is the development of a new dual power switch technology based on the product structure, control unit, execution unit, electromagnetic compatibility and other aspects of the new design, fully subvert the traditional dual power automatic transfer switch design. Switch the smallest dual power automatic transfer products, compact structure, easy installation; modular design, improve the continuity of power supply products, energy saving effect is better than other similar products.
The products conform to gb/t140048.11 standard.

Working conditions:
1.ambient air temperature: -5 ~ 40 C, and 24h average value is not more than 35 degrees centigrade;
2.Atmospheric conditions: the relative humidity of the atmosphere is not more than 50% around the maximum temperature of 40 degrees, at lower temperature can have high humidity, moisture in the monthly average minimum temperature of 25 degrees, the monthly average maximum relative humidity of 90%, and taking into account the result of the temperature change on the surface..
3.Elevation: the elevation of the installation site is not more than 2000m;
4.Pollution level: the level of environmental pollution in the installation site is 3
