Dual Power Automatic Transfer Switch(XLDS2)

Name: Dual Power Automatic Transfer Switch(XLDS2)
Brand: all-electronics-online.com
SKU: 730644572
Availability: InStock
Rating: 4.8 (129 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XLDS2
Rated Operational Voltage:	230V/240V
Installation:	vertical
Number Of Poles:	3p/4p

Product Description

Product overview

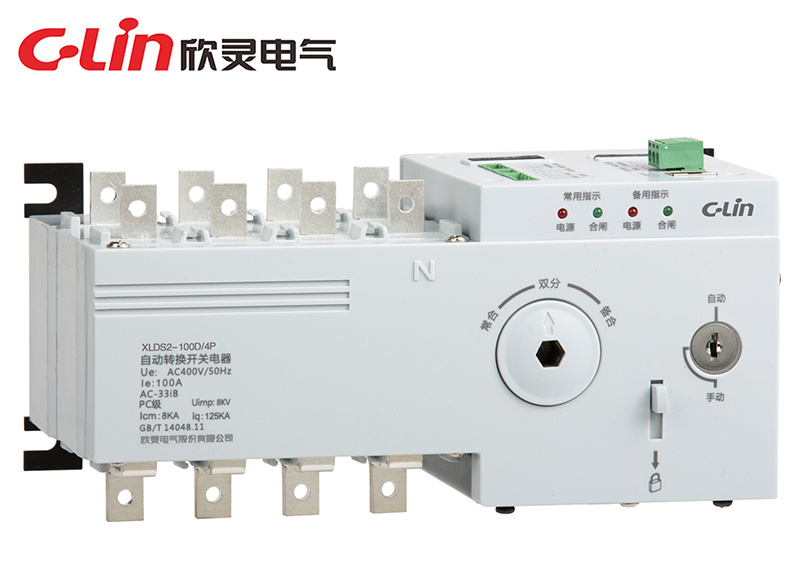

XLDS2 series automatic transfer switch is mainly used in AC 50Hz, rated voltage of 400V load switch, a preparation of a master or mutual standby power supply switch system and electric generator and 16A rated current to 3200A distribution or motor network. At the same time can be used without the frequent switch on and off circuit isolation in products. Widely used in fire, hospital, bank, high-rise buildings and other important places of power does not allow power transmission, power system and automation system
. The products conform to GB/T140048.11 standard.

Working conditions
1.ambient air temperature: -5 degrees to 40 degrees, and the average value of 24h is less than 35 DEG C; 2.the atmospheric conditions: the relative humidity of the atmosphere is not more than 50% around the maximum temperature of 40 degrees, at lower temperature can have high humidity, moisture in the monthly average minimum temperature of 25 DEG C when the monthly average maximum relative humidity of 90%, and taking into account the result of condensation temperature change on the surface.
3.The location of the installation elevation altitude: not more than 2000m;
4.the pollution level: the location of the installation of environmental pollution grade is 3.

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
