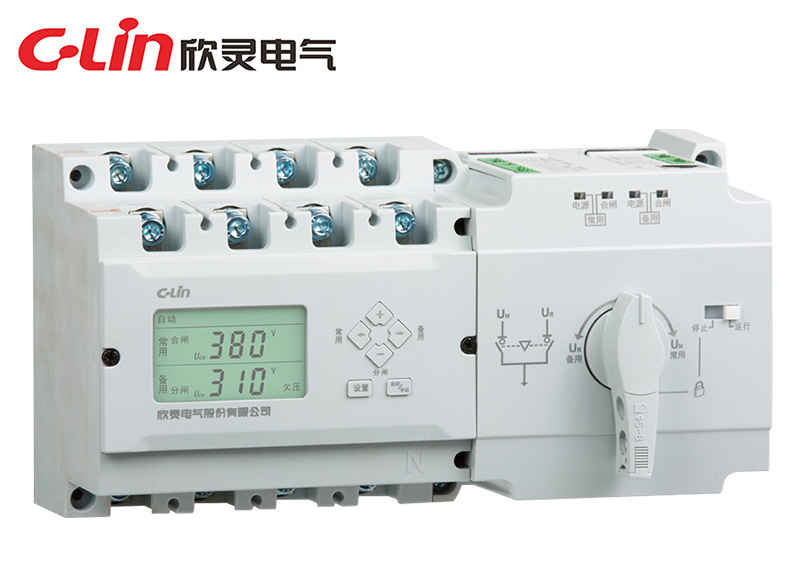

Dual Power Automatic Transfer Switch(XLDS3)

Name: Dual Power Automatic Transfer Switch(XLDS3)
Brand: all-electronics-online.com
SKU: 730631662
Availability: InStock
Rating: 4.9 (142 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

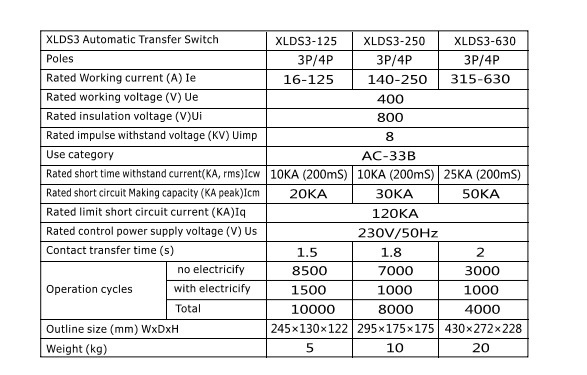

Prod Model:	XLDS3
Rated Operational Voltage:	230V/240V
Hole Size:	230*113
Installation:	vertical
Number Of Poles:	3p/4p

Product Description

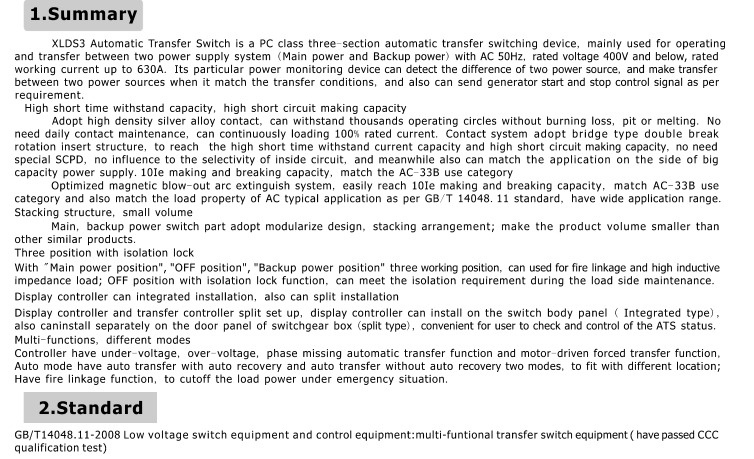

product features
1.High short resistance, short circuit connection ability
   With high density silver alloy contact, it can withstand thousands of operation cycles without burning, pits or fusion welding. It does not require routine contact maintenance, and carries 100% of the rated current. Contact system
   A bridge double breakpoint rotating insertion structure is adopted to achieve high short time withstand current and high short-circuit connection capability, without specific SCPO, without affecting the selectivity in the circuit, and also meeting the application in the large capacity power supply side
  2.10ie connection and breaking capacity to meet the ac-33b usage category
Magnetic blow out system optimization, easy 10ie connecting and breaking capacity, while covering 14048. 11 gb/t meet all AC load properties of ac-33b typical application categories, a wide range of applications.

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
