| Prod Model: |
GPS103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Feature: |
Oil Cut and Resume/Hardware Resetting |
| Weight: |
120g |
| Vehicle Tracking System: |
GSM/SMS GPRS |
| Tracking: |
Web Platform/ Phone |
| Tracking Way: |
Google Map or Our Web Platform |
| Warranty Time: |
12 Months |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
No Screen |
| Certification: |
ISO9001 |
Product Description

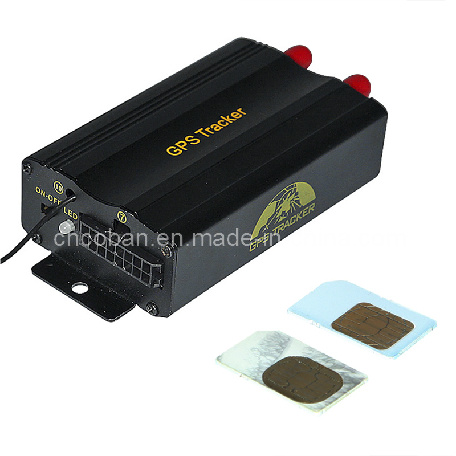

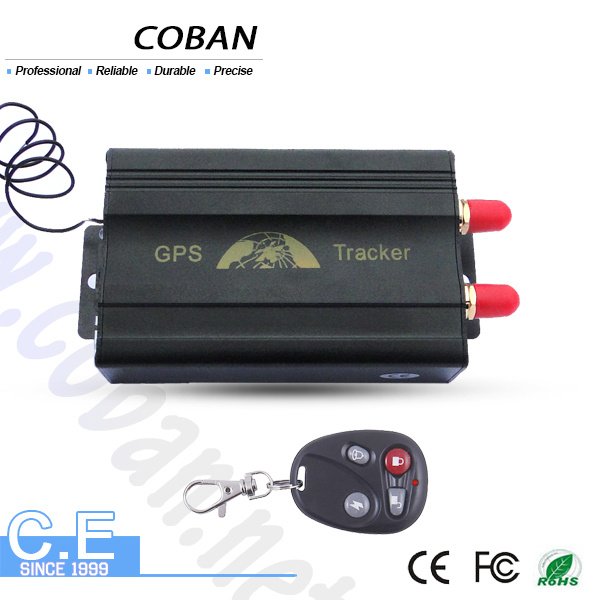

car alarm Vehicle GPS Tracker, Vehicle GPS Tracker with SOS, Vehicle GPS Tracker Remote Cut Oil off, coban manufacture Vehicle GPS Tracker (GPS 103B+)
Model: GPS103B+
This tracker is based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
Multiple Tracking Ways:
*Track by SMS with latitude and longitude
*Real track by SMS on PDA Cell phone with the maps link.
*Tracking on with CD software on PC.
*Web based online tracking on PC at our server www.gpstrackerxy.com.
Function Description

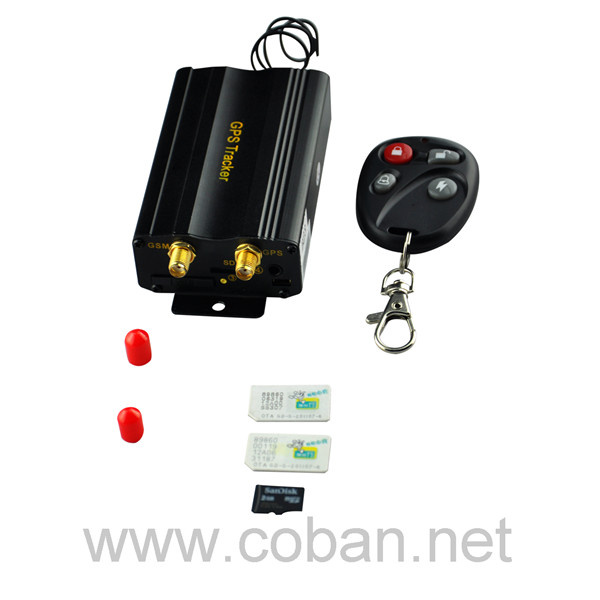

*Lock/unlock the door by SMS or by remote controller (GPS103B+)
*Work with dual sim/gsm card
*Support dual fuel sensor for fuel level monitor
*Get location in real street/address name, send "address+password to tracker.
*Location Based Service.
*Remote Engine-stop and Resume.
*Tracking function by timing and frequency
*Authorized number added and deleted function
*Support hidden alarm and monitor function
*Geo-fence
*Door / ACC Alarm
*Movement alert.
*Over speed alarm.
*Power supply disconnection alarm.
*Low batttery alarm function
*Check the vehicle status
*Set up DOOR ALARM, ACC ALARM, SENSOR ALARM by remote control
*Alarm without GSM network service
*Less GPRS traffic
*Automatic update positions of vehicle turns
*GPS blind area alarm
Optional function:
*Quiver / Sensor alarm
*Extra remote control
*Siren
*SD card
*Accident alarm
*Optional 24V relay for 24V vehicle
*USB cable to send commands on PC
*Central lock system
Applying directions:
Vehicle fleet/logistics/Vehicle rental
Technology parameter:
*Dimension: 87mm*54mm*26mm, 130g in weight
*channel: Parallel 20 channels
*Sensitive: -159dBm
*Accuracy: 5m
*Time To First Fix Cold status 35s,Hot status 1s
*GSM Network frenquecy: 850/900/1800/1900Mhz
| Content | Specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | G S M/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
