Shenzhen Coban Electronics Co., Ltd. >> Dual SIM Card Vehicle GPS GSM Tracking Tracker Tk105 with Temperature Sensor

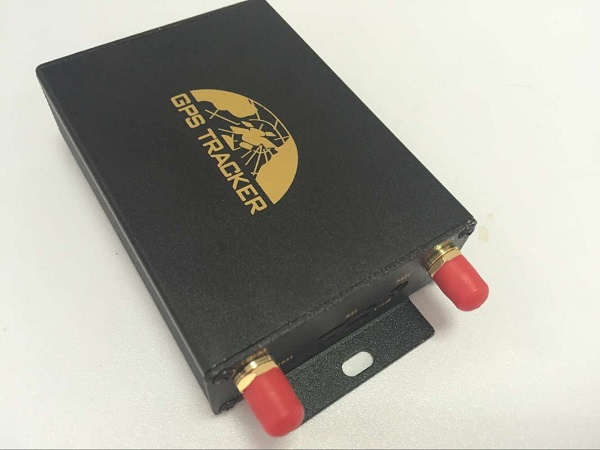

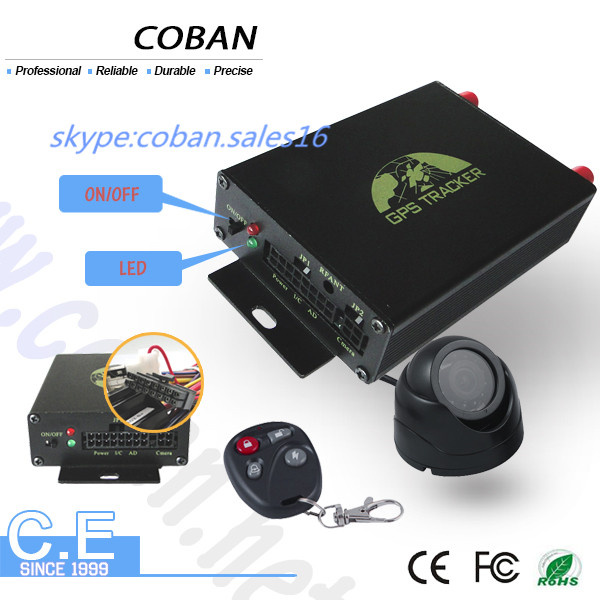

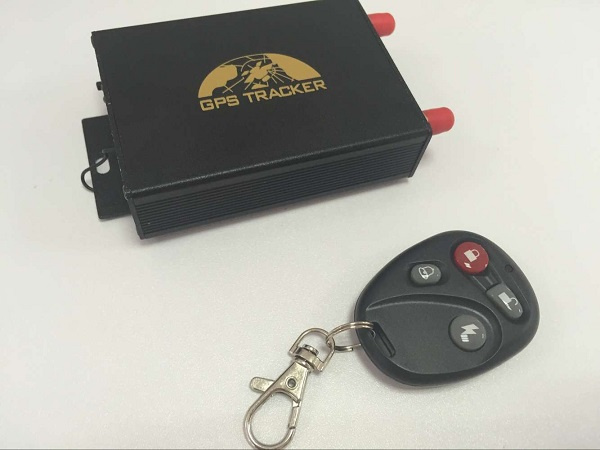

Dual SIM Card Vehicle GPS GSM Tracking Tracker Tk105 with Temperature Sensor

Dual SIM Card Vehicle GPS GSM Tracking Tracker Tk105 with Temperature Sensor
Price: US $ 1-32/Piece
Trade Terms: CFR,EXW
Min Order: 10/Piece
Pay Type: T/T,Western Union
Prod Model: vehicle alarms gps tracker TK105
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate: CE FCC ISO
Warranty Time: 1 Year
Network: GSM/GPRS
Weight: 170g
GSM Network: 850/900/1800/1900MHz
Feature: Fuel Sensor, Camera, Shock Sensor, Speed Limiter
Function: Vehicle Fleet/Logistics/Vehicle Rental (12-24V)
Tracking System: SMS, Web Platfrom, Phone APP
Manufacturer Or Not: Yes
OEM: Yes
Type: GPS Tracker
Use: Automotive
Carrier Frequency: Dual-Frequency
Operating Principle: GPS GPRS GSM Tracking
Port Number: 20
Model: 105
Screen Size: No Screen
Chip: Ns1315
Brand: Coban
Certification: ISO9001

Product Description

Dual sim card Vehicle GPS GSM Tracking Tracker Tk105 with temperature sensor


Product Description:

 This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.

Applications:

Used widely for vehicle and other moving objects tracking and management



Functions:

*Get absolute street address by SMS

*Take photo via camera by SMS message and temperature monitoring

*Tracking by GPS and GSM base station both even in building, underground and garage

*Real time tracking via SMS or GPRS (TCP/UDP)

*Track on demand by calling or SMS command

*Show location directly on mobile phone with HTTP Google map link

*Track by time interval

*Five authorized phone number to protect tracker information and assets

*Voice surveillance

*Easy switch for track or monitor

*Low battery alarm

*Power disconnect alarm

*Location based service (LBS)

*SOS button alarm

*Geo fencing alarm

*Turning points update automatically in GPRS mode

*Over-speed alarm

*Engine-cut and restore alarm by SMS GPRS

*Door alarm

*Movement alert

*Compatible with car original anti-theft system

*Fuel alarm:Once the fuel less 8% in 3 minutes,it will send you a alarm.

*Remote Start engine

*GPS blind area alarm

*Setup Appointment for engine

*Dual sim card and real time fuel sensor for fuel monitor

*Central locking system

*Empty / Loaded

*Footbrake Alarm

*Support sleep mode

*Bonnet alerts

*Vehicle maintenance notification



Optional functions:



*Central locking system box



*Vibration sensor



*Camera for image capture



*Fuel sensor for monitor fuel



*Temperature sensor



*SD card function



*Speed detecting (Speed calibration ,Kilometrage Report,Speed recording,Governor mode)



*RFID





Specifications:



Content

Specifications

Size

92*71*26mm

Weight

120g

Band

850/900/1800/1900Mhz

GPS sensitivity

-159dBm

GPS accuracy

5m

GPS start time

Cold status  45s

Warm status  35s

 Hot status  1s

Voltage of car power system

12 V/24V

Backup battery

Chargeable changeable 3.7V 500mAh Li-ion battery

Storage Temp

-40°C to +85°C

Operation temp

-20°C to +65°C

humidity

5%--95% non-condensing


Five types Tracking way

A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: Simple & useful real time tracking via our website www.gpstrackerxy.com
E >: IOS and Android APP


Packaging Detail:

GPS Unit
16 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
Remote control
CD | manual | package

Optional accessories:
Central locking relay box
Shock sensor | alarm siren
SD Memory card | Fuel sensor
RFID | Camera
Speed detector IC of speed governor(LM2917 weld on PCB)



Web Platform Tracking:




Andriod and IOS Apps for GPS trackers:




Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.

As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.

Our company specialized in GPS tracker, car anti-theft alarm system.

Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
