| Prod Model: |

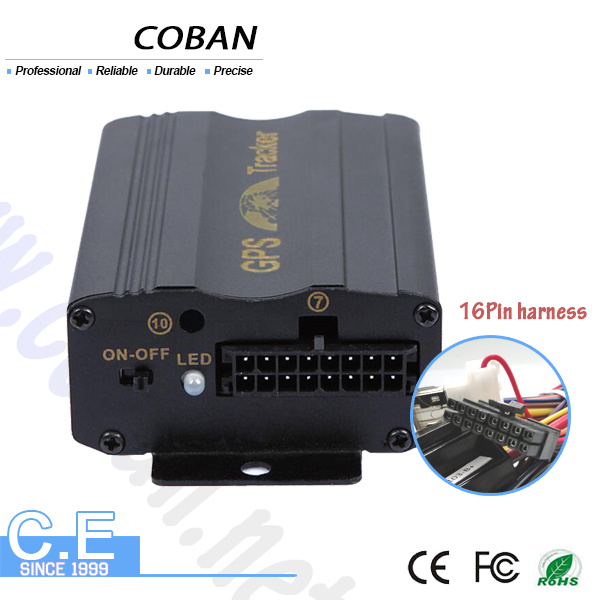

Dual sim card Vehicle GPS Tracker tk 103a+ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
External Antennas, Engine Shut, Fuel Monitor |
| Weight: |
120g |
| Vehicle Tracking System: |
GSM/SMS GPRS |
| Tracking Solutions: |
SMS GPRS Webplatform, Android Ios APP Tracking |
| Warranty Time: |
12 Months |
| Central Lock System: |
to Lock/Unlock Car Door |
| Output: |
Engine Cut/Siren |
| Dual SIM Card Slot: |
Yes |
| GPRS Web Platform: |
with APP Tracking |
| Alarms Under Arm: |
Acc/Door/Shock Sensor/Lock/Unlock Car Door |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
103 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Baanool |
| Certification: |
ISO9001 |
Product Description
Dual sim card Vehicle GPS Tracker support lock relay TK103A+Applications:Vehicle rental/Fleet management ect
Special for car (12V-24V)
Support cut power and oil function from long distance
Supporting SMS remote reboot and reset button to restart
Support text geographic information searching
Supporting SMS with Google map track (SMS)
Support tracking (GPRS)
Support time and voice tracking
Support electronic fence, shift, speeding and low electric alarm
Support SOS emergency/alarm function
Free computer installed version tracking software
Basic functions:1. GPS + Location based service(LBS)
2, Real time tracking via SMS or GPRS (TCP/UDP)
3, Track on demand by calling or SMS comamnd
4, Show location directly on mobile phone with HTTP Google map link
5, Track by time and distance interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, Low battery alarm
10, Power off alarm
11, SOS button for emergency
12, Geo fencing control
13, Overspeed Alarm
14, Engine -cut and restore alarm by SMS GPRS15, Door, windows alarm get by SMS
16, Movement alert sensor
17, optional gprs Android IOS app tracking
18. with direction and heading value
19. Optional shock/impact sensor
20. Abosolute street function
specifications| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s Warm status 35s Hot status 1s |
| Voltage of car power system | 12 V -24V |
| Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
Tracking solutions
-SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
-Get absolute address by SMS
-Android IOS app tracking
-Web server online tracking. Capable of monitor 10,000 objects

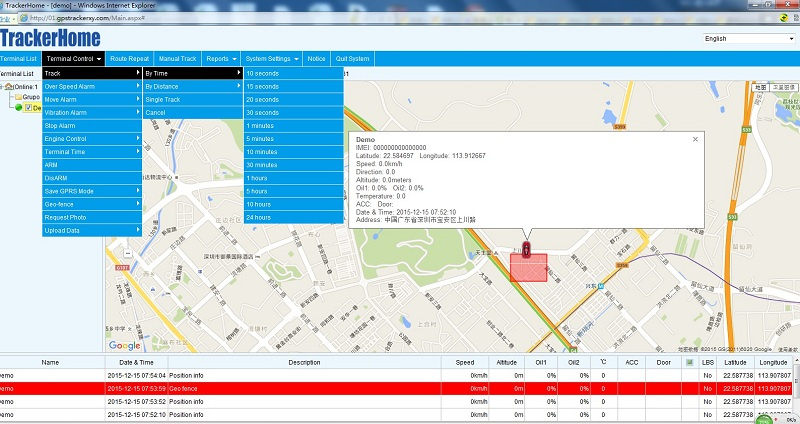

GPRS web server
www.gpstrackerxy.com(user ID :demo,password :8888)

Android /IOS app tracking

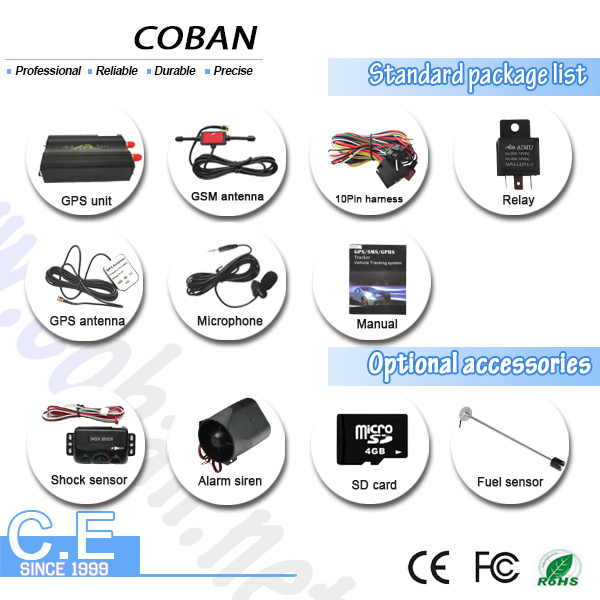

GPS103A+ accessories
Packing contents:
car GPS Unit tk103A+
10 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
manual | package
Optional accessories
Shock sensor
alarm siren
Microsd memory card
Fuel sensor


Product Notes:
Great for private use, company car or rental fleet management
Comes with external GSM and GPS antenna for excellent reception
Install the mic inside your passenger compartment, and you can listen to conversations inside the car without letting any passenger or driver know
Comes with detailed instructions on how to work with GPRS enabled SIM and setup internet monitoring (fixed IP only), so constant tracking information can be displayed on a detailed map
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
